Coffee Bean Screw Conveyor is a conveying equipment specially used for conveying coffee beans. It is made of stainless steel as a whole, which can ensure the hygiene of coffee beans. In addition, our screw conveyor adopts a shaftless design, which can ensure that the coffee beans will not be damaged during the conveying process. It is widely used in coffee bean processing, coffee bean packaging, and coffee bean transportation.

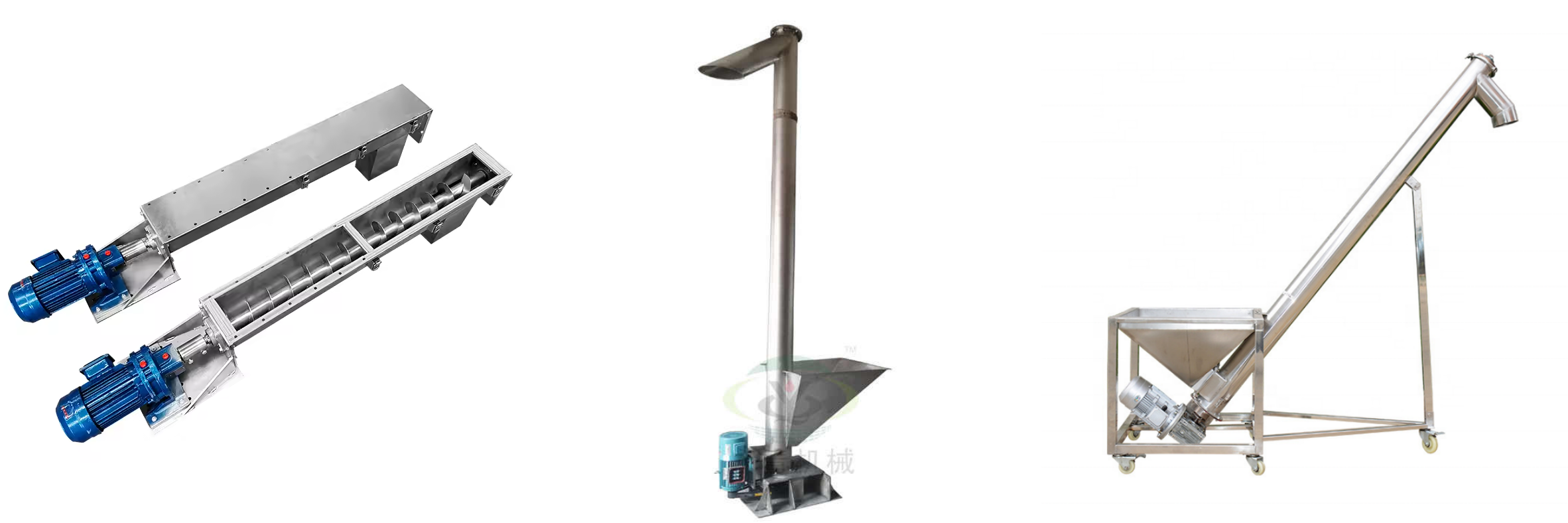

Coffee bean screw conveyors can be installed at different conveying angles according to production needs, mainly including horizontal conveying, inclined conveying and vertical conveying.
1. Horizontal conveying: Coffee beans are subject to less vibration and impact during horizontal conveying, which is suitable for protecting the integrity of coffee beans and can meet the layout requirements of a wide range of production lines.
2. Inclined conveying: Usually installed at 15°-45°, coffee beans move in an inclined direction during conveying, which can realize the lifting and transfer of materials in a limited space, and is suitable for conveying coffee beans from low to high places.
3. Vertical conveying: Installed at an angle of 90°, it moves in the vertical direction during the conveying process of coffee beans, and can quickly lift coffee beans from a low place to a high place within a short distance.
Coffee bean screw conveyor plays an important role in the coffee production process. It can not only efficiently convey coffee beans, but also protect the quality of coffee beans to the maximum extent.
Gentle conveying and reduced damage: The screw conveyor pushes the coffee beans through the rotating spiral blades. The conveying process is relatively smooth, which reduces the friction and collision between the coffee beans and reduces the breakage rate of coffee beans.
Good sealing and pollution prevention: The closed structure is often used, which can effectively prevent dust, debris and other pollutants from entering the conveying pipeline, ensuring the cleanliness of the coffee beans.
The conveying volume is controllable to meet different needs: It can be controlled by adjusting the speed of the spiral blades and the diameter of the conveying pipe to meet the needs of different production scales.
Strong adaptability and wide application: The screw conveyor can convey various types of coffee beans, including raw beans, cooked beans, coffee powder, etc. Whether it is handling freshly picked green beans, roasted beans, or even ground coffee powder, the screw conveyor can convey them.
The coffee bean screw conveyor mainly operates on the principle of screw propulsion. It has a rotating shaft with a spiral blade, which is placed in a sealed trough or pipe. When the motor drives the screw shaft to rotate, the spiral blade rotates with it, and the coffee beans will move along the axial direction of the trough or pipe under the push of the spiral blade, thereby realizing the conveyance from one position to another. For example, in a coffee bean roasting plant, the screw conveyor can stably convey the coffee beans from the storage bin to the roaster in the process of transporting the green beans from the storage bin to the roaster.

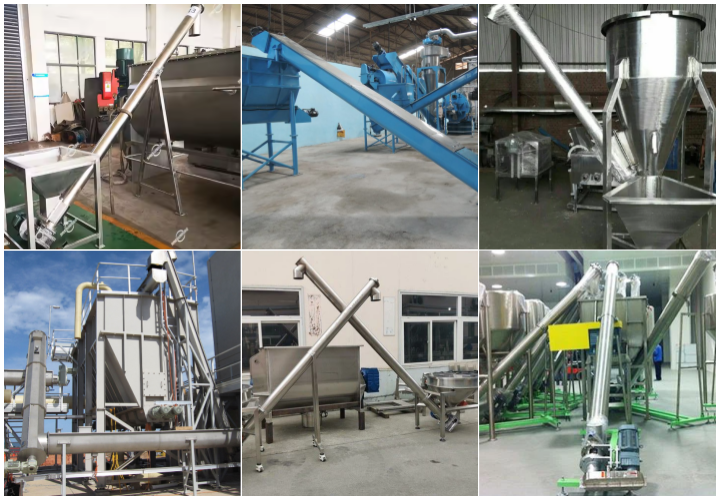

Coffee bean screw conveyors are widely used in various links of coffee production, such as
Raw bean conveying: Raw coffee beans can be transported from warehouses or silos to cleaning equipment or roasting equipment.
Roasted bean conveying: The roasted coffee beans are transported to cooling equipment or packaging equipment.
Coffee bean storage management: During the storage of coffee beans, the screw conveyor is used to extract coffee beans from the storage equipment to ensure the continuity of production supply.
Instant coffee production: During the production of instant coffee, the screw conveyor participates in the transportation of coffee beans from pretreatment to extraction, drying and other links to ensure the smoothness of the production process.
Selection suggestions:
1. Select the appropriate model according to the conveying volume, conveying distance and inclination of coffee beans.
2. Consider the material and hygiene requirements of the equipment to ensure that it meets the food production standards. Stainless steel is generally used.
Maintenance points:
1. Regularly check the wear of the spiral blades and conveying troughs, and replace damaged parts in time.
2. Keep the equipment clean to avoid coffee bean residues affecting hygiene and operating efficiency.
3. Regularly lubricate the drive device to ensure smooth operation of the equipment.
Coffee bean screw conveyor has become a vital equipment in the coffee production industry with its unique working principle, reasonable structural composition, significant characteristics and advantages, and a wide range of application scenarios. It not only improves production efficiency, but also guarantees the quality of coffee beans to a certain extent, laying a solid foundation for the stable development of the coffee industry.
