Diatomite Screw Conveyor is a screw conveyor specially designed for conveying materials such as diatomite. It can convey the freshly processed diatomite from point A to point B. It can convey at different angles, reducing labor costs and speeding up work efficiency. It can also convey diatomite to small spaces that trucks cannot reach.
The diatomite screw conveyor uses rotating spiral blades to push the diatomite forward. The motor drives the spiral shaft to rotate, and the spiral blades push the diatomite from the feed port to the discharge port. In this process, a closed space is formed between the spiral blades and the wall of the conveying pipe, which effectively prevents dust from spilling out, while ensuring the continuity and stability of material conveying.

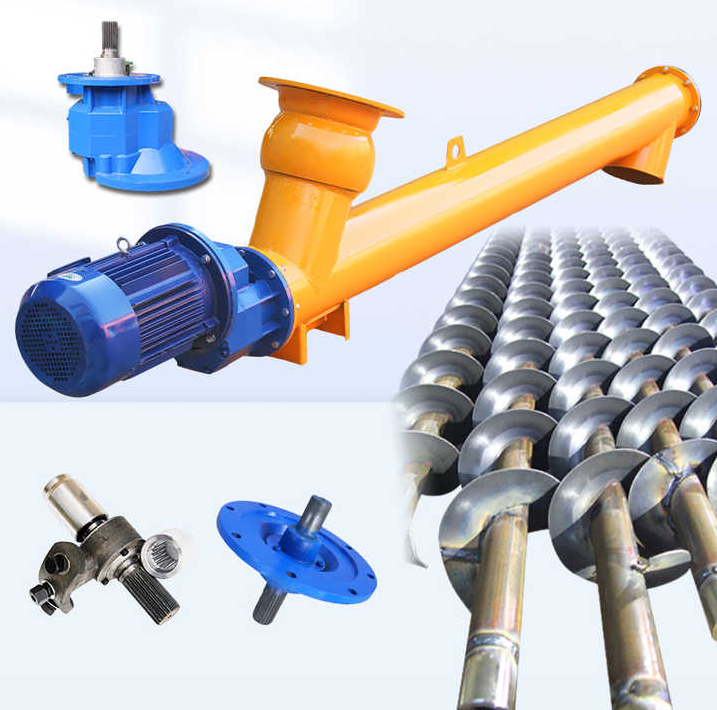

The overall structural design of the diatomite screw conveyor is very helpful for the conveying of diatomite. Its structural features are mainly as follows.

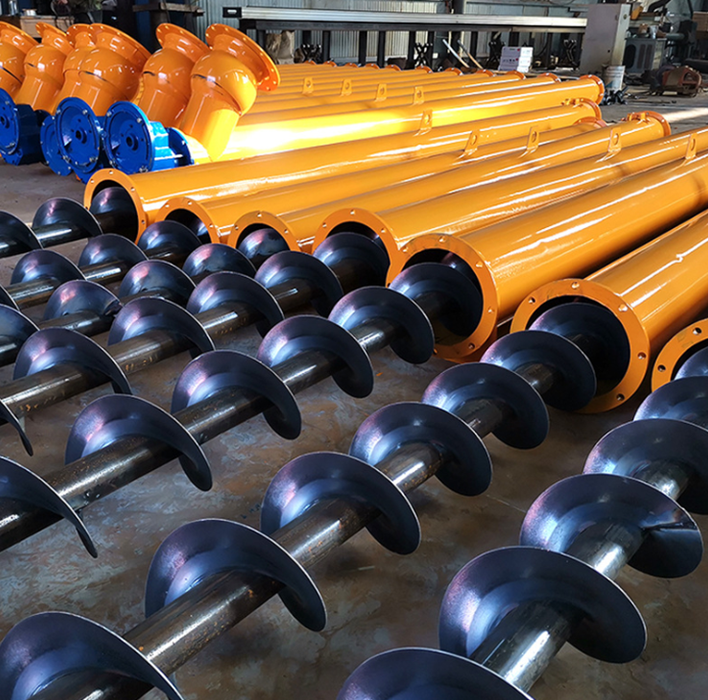

Spiral blades: Made of wear-resistant and corrosion-resistant high-quality steel, it can reduce the adhesion of diatomite and reduce conveying resistance.
Conveying pipe: The length and diameter can be customized according to the conveying distance and process requirements, and the inner wall is smooth to reduce material wear.
Feeding port and discharging port: Reasonable design, convenient connection with other equipment, and automatic production.
Driving device: The variable frequency speed regulating motor is adopted, and the conveying speed can be adjusted according to actual needs to meet the requirements of different working conditions.
The performance advantages of diatomite screw conveyor make it an indispensable starch conveying equipment in many industrial production.
Suitable for large-scale production: The spiral blade rotates continuously, and the conveying efficiency is high, which can meet the needs of large-scale production.
Prevent diatomite leakage: The closed conveying structure effectively prevents dust from overflowing.

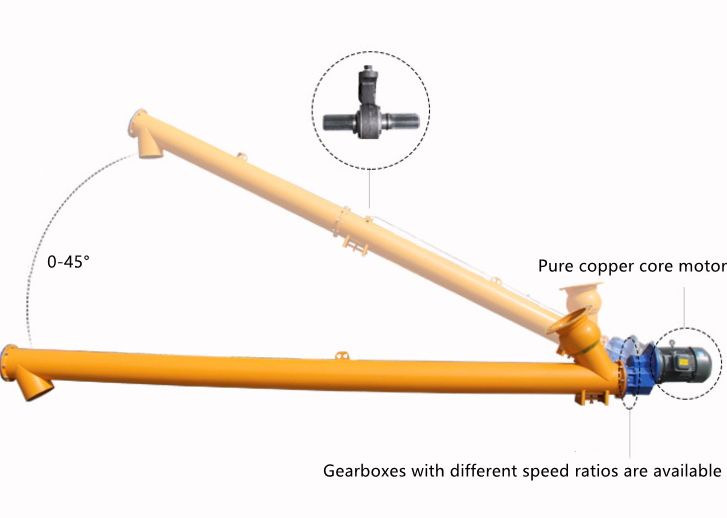

Conveyors at different angles: It can be conveyed horizontally, inclined or vertically to adapt to different sites and process requirements.
Diatomite screw conveyors are widely used in the following fields
Diatomite filter production: The diatomite raw material is conveyed to the finished filter production equipment through a screw conveyor.
Diatomite filler production: conveying diatomite raw materials, finished fillers, etc.
Diatomite insulation material production: conveying diatomite raw materials, finished insulation materials, etc.
Conveying other powdery and granular materials: such as cement, flour, feed, etc.
Due to the characteristics of diatomite, the following points need to be considered when purchasing diatomite screw conveyors
Choose a suitable spiral blade form: Considering that diatomite has a large friction coefficient and is prone to sliding resistance, a spiral blade form with a large thrust should be selected, such as a variable pitch spiral or a belt spiral.
Increase the machine slot diameter: The light porosity of diatomite easily causes material accumulation in the machine slot, so the machine slot diameter should be appropriately increased to reduce the friction resistance between the material and the machine slot wall.
Optimize the spiral speed: Too fast a spiral speed can easily cause diatomite to splash or generate too much dust, and too slow a speed will affect the conveying efficiency. The appropriate spiral speed can be selected according to the properties of diatomite and the conveying volume.
Use wear-resistant materials: Diatomite has a certain degree of wear on metal surfaces, so wear-resistant materials should be selected to make spiral blades and machine grooves to extend the service life of the equipment.
Diatomite screw conveyors play an important role in the production and processing of diatomite. With its efficient and reliable conveying performance, it is widely used in chemical, water treatment, food and other industries. Through reasonable design and maintenance, diatomite screw conveyors can significantly improve production efficiency, ensure product quality, and meet the growing market demand.
