Screw Feeder For Powder Supply this equipment adopts the principle of spiral propulsion and is specially designed for flour, medicinal powder, chemical raw materials, etc. The conveying capacity is 0.1-10t/h and the accuracy error is ≤2%. It provides three installation methods: horizontal, inclined, and vertical. It is suitable for conveying distances of 1-30 meters. Carbon steel and 304/316 stainless steel are optional. The fully enclosed structure prevents dust from spilling out, and frequency conversion speed regulation is used to achieve precise flow control.

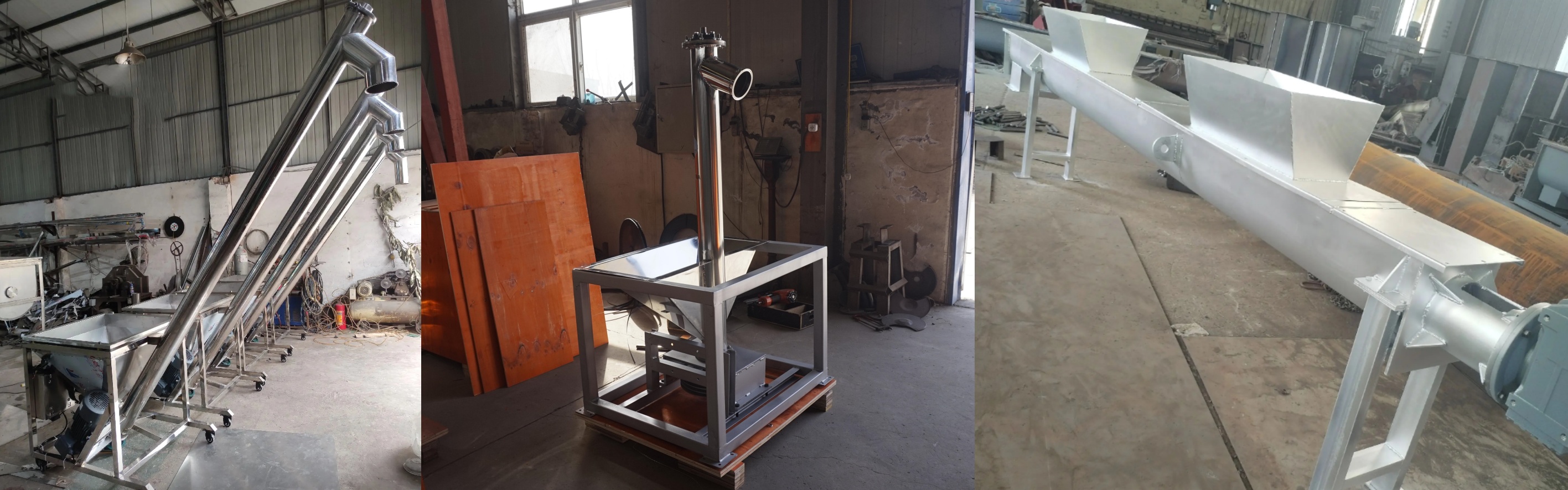

We provide three models of horizontal/inclined/vertical, with carbon steel/stainless steel as two materials, suitable for food, chemical, and pharmaceutical industries, supporting customized design to meet different powder characteristics and working conditions.

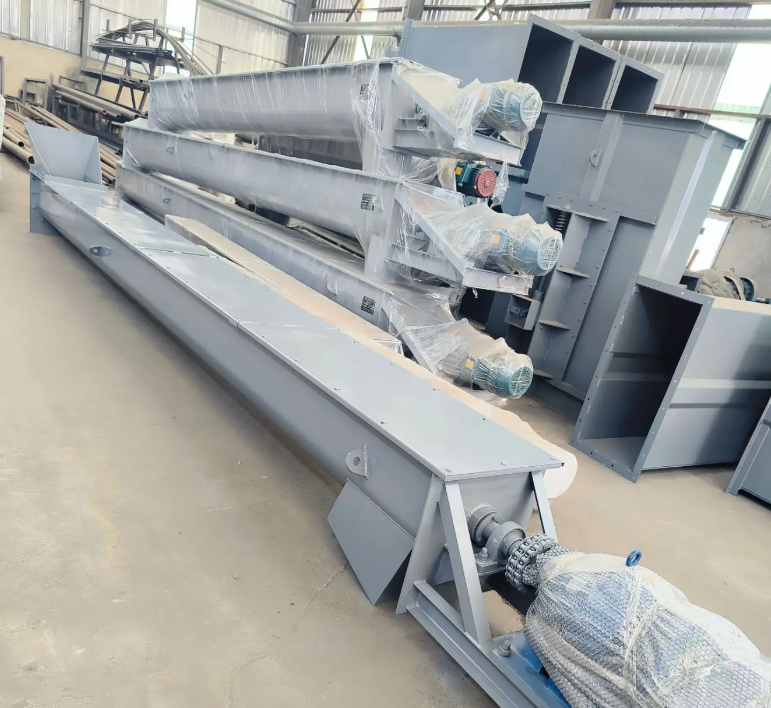

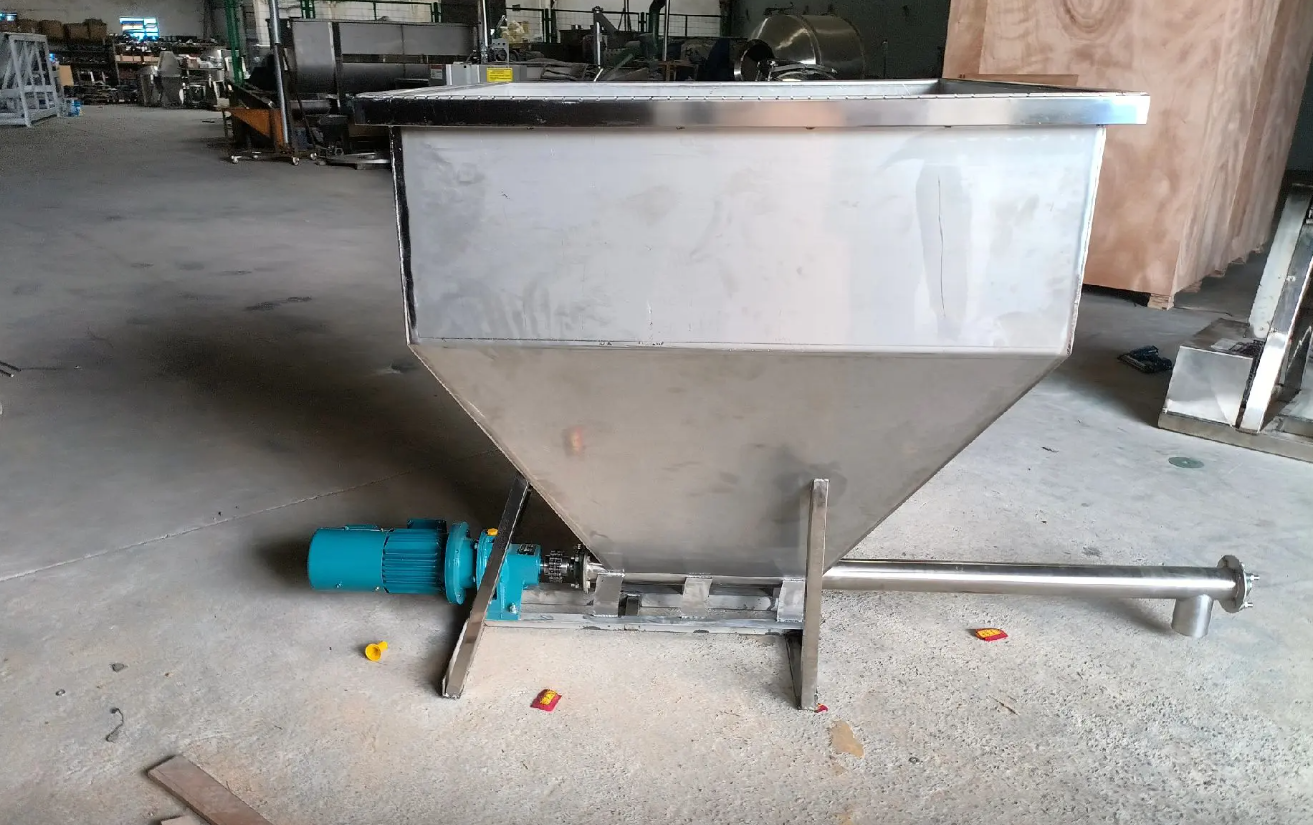

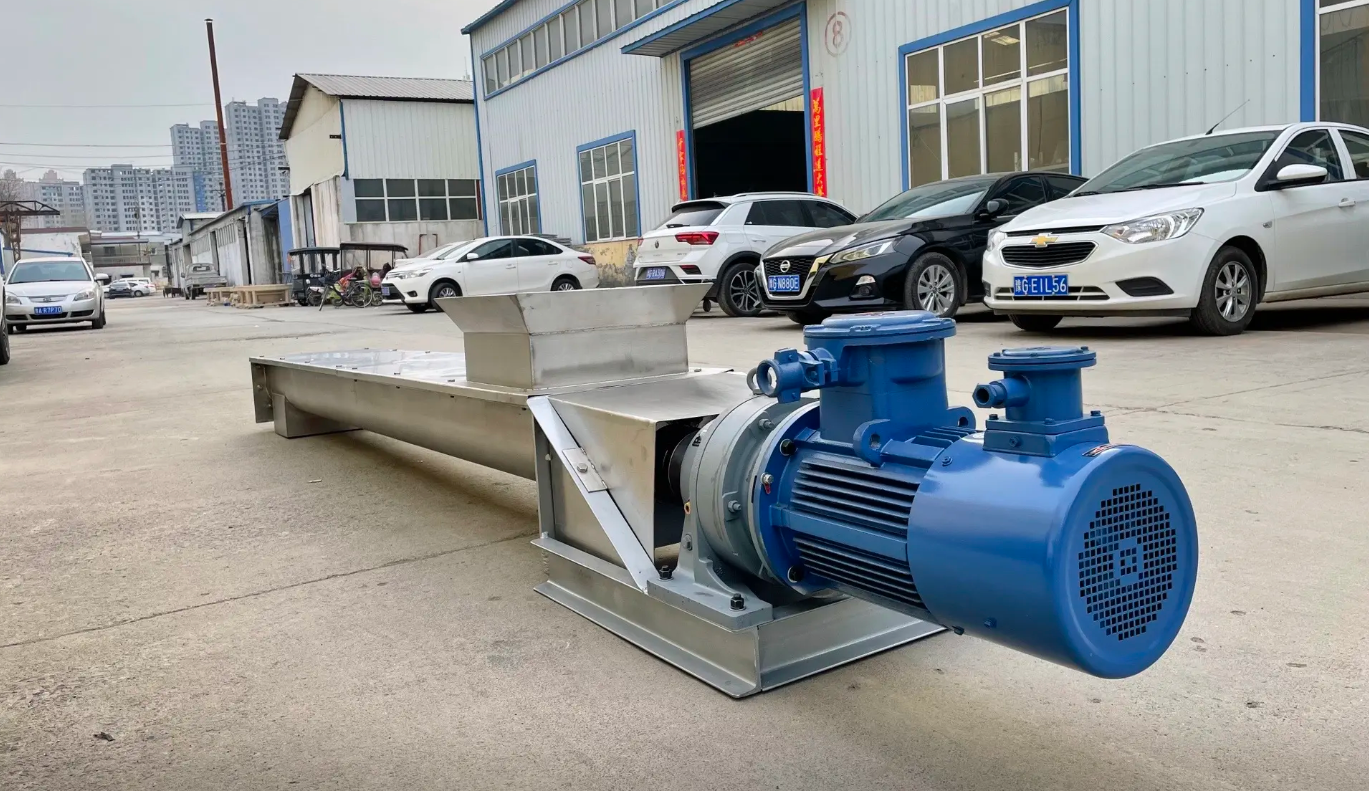

Horizontal screw feeder: The main shaft is parallel to the ground, suitable for horizontal or micro-angle conveying within 20 meters or less than 15°. It has a simple structure, convenient maintenance and low power consumption. It is often used for short-distance uniform conveying of powders such as food additives and chemical raw materials, and is suitable for scenes such as mixer feeding and packaging machine filling.

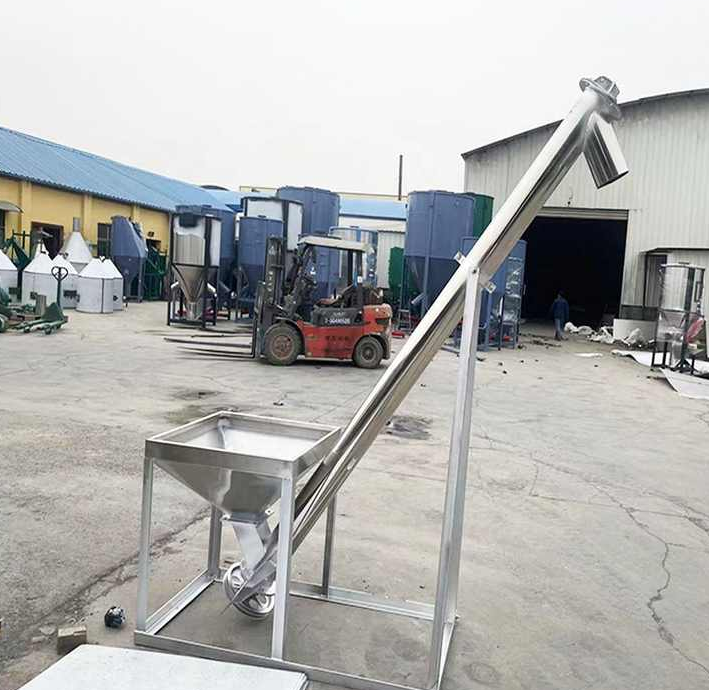

Inclined screw feeder: The tilt angle is 15°-45°. The motor power needs to be increased to overcome gravity. Variable pitch or baffle design is often used to prevent powder backflow. It is mainly used for powder lifting and conveying from underground silos to high-altitude equipment (such as drying towers).
Vertical screw feeder: The main shaft is vertical to the ground, with a small footprint but high energy consumption. It relies on high speed and special spiral blades to achieve lifting. It is suitable for vertical conveying scenarios with limited space, such as building cement filling and pharmaceutical powder lifting operations.
The closed dustproof design ensures clean conveying, variable frequency speed regulation achieves precise feeding, and the modular structure is easy to maintain. It is an ideal solution for powder processing.
Continuous and uniform feeding: The spiral blade rotates to push the powder to ensure stable material flow and avoid pulse conveying, which is particularly suitable for occasions that require precise metering.
Adapt to a variety of powder characteristics: By adjusting the speed and pitch, powders with poor fluidity, easy hygroscopicity or slight viscosity can be conveyed.
Multi-angle installation: horizontal, inclined (15°~45°) or vertical arrangement to meet the needs of different process flows.
Fully enclosed conveying: effectively prevent powder leakage, reduce dust pollution, and meet GMP, FDA and other hygiene standards.
Customized sealing: can be customized according to customer needs, and horizontal conveying supports customization of 30 meters.
It can convey ordinary dry powder, hygroscopic powder, corrosive powder, light fluffy material, slightly sticky material and high-temperature material to meet the conveying needs of powders with different characteristics.
|
Material Type |
Specific Examples |
Screw Feeder Requirements |
|
Ordinary Dry Powder |
Flour, milk powder, cement, graphite powder |
Conventional carbon steel/stainless steel, horizontal or inclined installation |
|
Hygroscopic Powder |
Sugar powder, salt, certain chemical raw materials |
Sealed design, nitrogen charging for moisture protection |
|
Corrosive Powder |
Fertilizers (urea), pigments, pharmaceutical intermediates |
Stainless steel 316L material, acid-base resistant coating |
|
Light and Fluffy Materials |
Carbon powder, talcum powder, diatomite |
Low rotation speed, large pitch, anti-flying design |
|
Slightly Sticky Materials |
Certain plastic particles, hydrometallurgical powders |
Paddle blades or self-cleaning function |
|
High-temperature Materials |
Metal powders (requiring cooling), ceramic powders |
High-temperature resistant bearings, optional water-cooled casing |
When the screw shaft rotates, the powder material enters the trough from the feed port and accumulates at the bottom of the trough under the action of gravity. The friction between the spiral blade and the material drives it to move. The feed amount can be controlled by adjusting the feed port gate or feeding device; during the conveying stage, the blade continues to rotate to push the material from the feed end to the discharge end, so that a continuous "material flow" is formed in the trough. After the material reaches the discharge port, it is discharged under the action of centrifugal force and gravity.
With the characteristics of strong airtightness, stable conveying and strong adaptability, the powder supply screw feeder can realize the rapid conveying of different powder materials in the above-mentioned multi-industry scenarios and meet the diversified needs of industrial production.

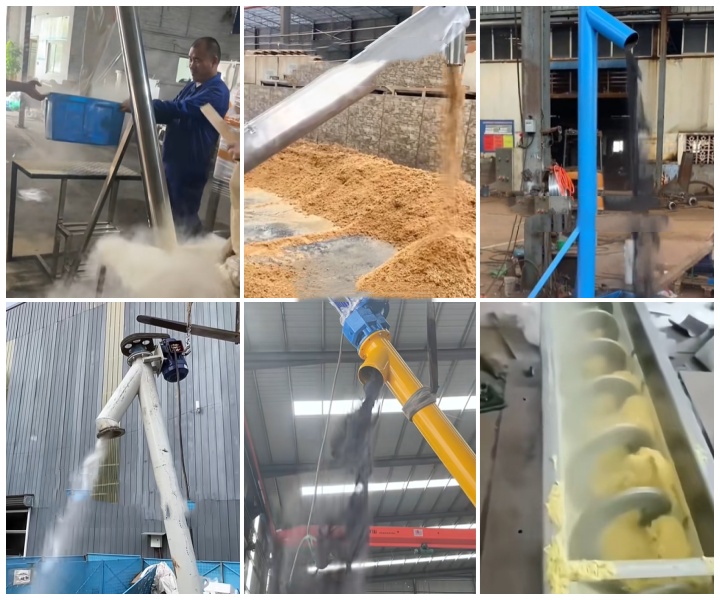

Food processing industry: Powder supply screw feeders are widely used in flour mills, dairy factories, seasoning production lines and food additive batching systems, and can be used with typical equipment such as mixers, packaging machines, baking equipment, and puffed food production lines.
Chemical industry: Suitable for fertilizer production, pigment/dye processing, plastic granule conveying, lithium battery material processing and other scenarios, often equipped with reactor feeding, drying tower feeding, packaging weighing system and other equipment to realize material conveying.
Pharmaceutical and health care product manufacturing: It plays a role in scenarios such as raw material delivery, tablet/capsule production, and powdered health care product batching, and can be used with typical equipment such as granulators, tablet presses, and V-type mixers.
Building materials and metallurgical industry: used in cement plants, fly ash processing, metal powder (such as aluminum powder, iron powder) transportation and other scenarios, often supporting sintering furnaces, concrete mixing stations, 3D printing metal powder feeding and other equipment.
For special powders such as hygroscopic/corrosive/high temperature, attention should be paid to material adaptation, sealing moisture-proof, anti-sticking design and temperature control maintenance to ensure safe and high-speed transportation.
Flammable and explosive powders (such as aluminum powder, coal powder): explosion-proof motor + fully enclosed structure is required to avoid static electricity accumulation
Ultrafine powders (nanomaterials, etc.): The speed needs to be reduced to prevent compaction, and pneumatic assisted transportation is used
Food/pharmaceutical grade materials: meet FDA/GMP standards, use mirror-polished stainless steel, and have no dead angle design
Dahan Machinery Manufacturing Co., Ltd. is a company specializing in the research and development and production of powder screw feeders. It has many patented technologies and its products have passed ISO9001, CE and other certifications. The company produces a full range of carbon steel/stainless steel screw feeders, and can customize special models such as explosion-proof, corrosion-resistant, and food-grade according to customer needs. With innovative modular design and a complete after-sales service system, the products are exported to more than 30 countries and regions.
The powder supply screw feeder has become an indispensable part of industrial production with its flexible conveying method, wide material adaptability and reliable performance. Whether it is ordinary dry powder or special material, efficient and stable conveying can be achieved through reasonable selection and standardized use.
