Vertical Conveyors For Small Goods is designed for granules, powders and small pieces of materials. It adopts the principle of spiral or bucket lifting, with an adjustable conveying height of 1-50 meters and a processing capacity of 0.5-10t/h. Vertical Conveyor can be made of carbon steel or 304 stainless steel, suitable for -20℃~80℃ working conditions, and supports a variety of materials such as grain, medicine powder, plastic granules, etc. The energy consumption is 40% lower than that of traditional conveying methods, which is an ideal choice for optimizing production line space!
Breaking through space limitations with compact design, carbon steel/stainless steel dual materials are suitable for multiple scenarios, with the advantages of stable operation, low noise, energy saving and easy maintenance.
Space saving: vertical design, suitable for narrow or height-restricted sites.
Fast conveying: adjustable conveying speed, processing capacity 0.5-10t/h (depending on the model).
Strong adaptability: can convey granules (such as grain, plastic granules), powders (such as flour, medicine powder) and small pieces of materials (such as nuts, feed).
Optional materials: carbon steel (economical) or stainless steel (food grade/corrosion resistant).
Customization supported: Source manufacturers can customize it for you according to your needs!

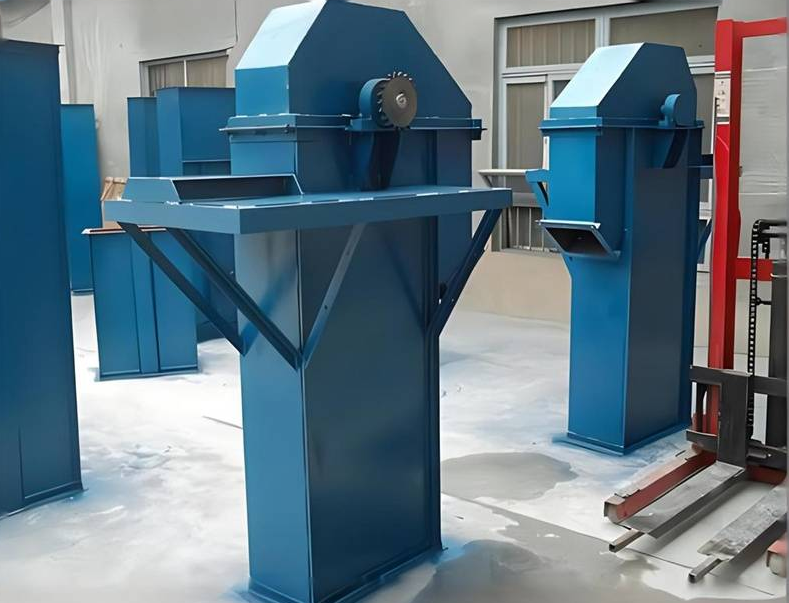

Small vertical conveyors are mainly divided into two types: spiral and bucket types, which achieve material lifting through different mechanical structures. The spiral type uses high-speed rotating spiral blades (200-400rpm) to use centrifugal force to push particles or powders vertically up along the pipe wall, which is suitable for dry materials with good fluidity; the bucket type uses an endless belt/chain to drive the hopper to scoop up the material and then lift it vertically, and unload it at the top by centrifugation or gravity, which is particularly suitable for fragile and wet materials.

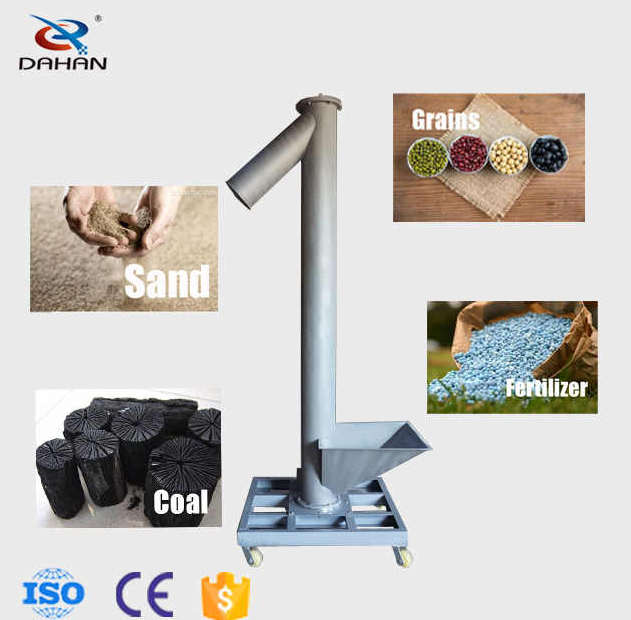

It can efficiently transport granular materials such as grains and plastic particles, and powdered materials such as flour and cement powder, accurately solving the problem of vertical transportation of various materials.
Powder materials: flour, medicine powder, milk powder, chemical powder, pigment, etc., suitable for spiral conveyor, fully enclosed dustproof design, flammable and explosive powders need to be equipped with anti-static or nitrogen protection system.
Granular materials: rice, wheat, plastic granules, feed, coffee beans, nuts, etc., dry ordinary granules → spiral or bucket type, fragile granules (such as potato chips, tablets) → bucket type (anti-breakage design) is preferred.
Wet/sticky materials: wet sand, clay (bucket type + anti-stick coating hopper required)
Mixed materials: medicine powder + granule combination (customized anti-segregation device required)

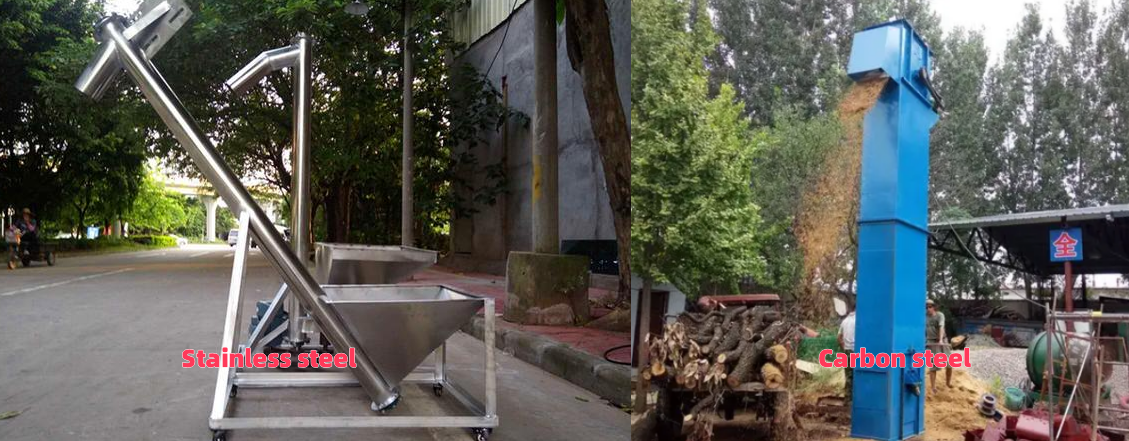

Provide carbon steel and stainless steel materials to provide precise equipment selection for vertical transportation of materials in different industries.
Carbon steel material: economical and practical, suitable for industrial scenes such as building materials and feed, good at handling dry non-corrosive materials such as grain and plastic granules, and the price is 30%-50% lower than stainless steel. Its high strength characteristics are suitable for heavy-load transportation (such as mineral sand).
Stainless steel material (304/316): Food-grade stainless steel conveyors are designed for high hygiene standards and are suitable for materials such as flour and powder. The 304 model is rust-proof and the 316 model is highly corrosion-resistant. The surface is smooth and easy to clean, and the service life is 2-3 times that of carbon steel.
Carbon steel and stainless steel material solutions achieve precise vertical transportation of granular/powder materials in different compact spaces.

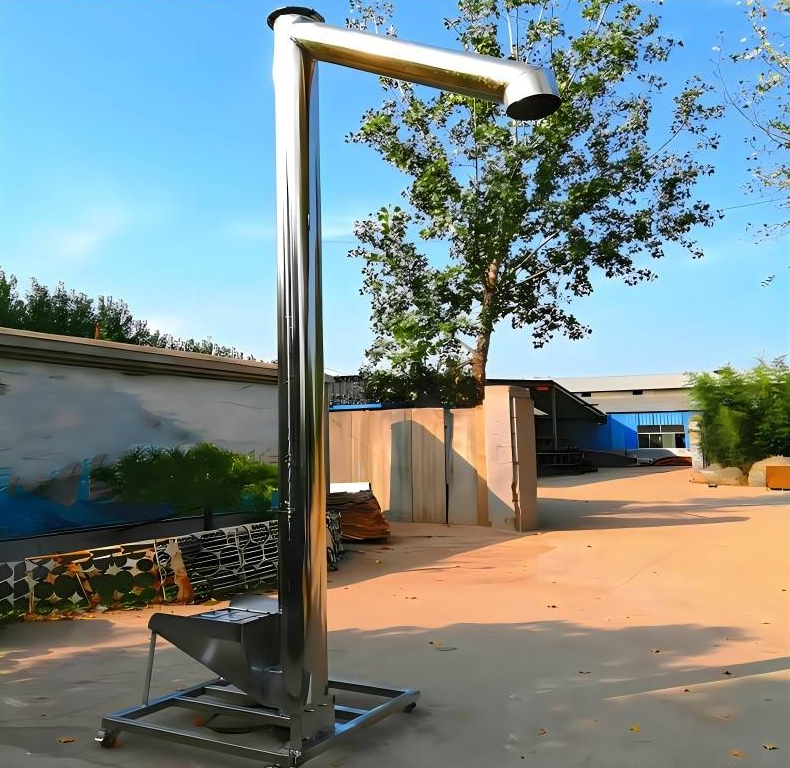

Vertical conveying of flour in food factories: A stainless steel 304 spiral vertical conveyor (5 meters in height) is used to lift flour from the grinding workshop to the packaging line, with a processing capacity of 2t/h. The fully sealed design of the equipment prevents dust from spilling out, and the efficiency is increased by 400% after replacing the original manual handling.
Automatic feeding of powder in pharmaceutical factories: In order to meet the cleanliness requirements of pharmaceutical workshops, customers customized 316 stainless steel bucket elevators (3 meters in height) to achieve aseptic transportation of powder from temporary storage to mixers, and the product qualification rate was increased from 92% to 99.5%.
Feed mill pellet raw material storage upgrade: carbon steel screw conveyor (8 meters in height) is used to vertically lift corn pellets to the silo, with a processing capacity of 5t/h. The wear-resistant design of the reinforced blades is suitable for high-load operation, and the energy consumption is reduced by 60% compared with traditional pneumatic conveying.
We have been focusing on the research and development and production of screw/bucket elevators for many years, and have passed ISO9001 certification and CE export qualifications. The core advantages include: a full range of models, covering 0.5-20t/h conveying capacity, 1-50 meters in height, customizable; dual material selection, carbon steel (industrial grade) and stainless steel (304/316 food grade); intelligent upgrade, optional frequency conversion control, remote monitoring system. We have served more than 500 customers in food, pharmaceutical, chemical, etc. Typical cases include a multinational pharmaceutical company's GMP workshop aseptic conveying system (316 stainless steel) and large grain silo automation transformation (carbon steel explosion-proof type).
Small cargo vertical conveyor is an indispensable logistics equipment in modern industrial and commercial fields. With its high efficiency, compactness and flexibility, it provides an economical and practical solution for the vertical transportation of various small cargoes and bulk materials, helping enterprises achieve higher production efficiency and space utilization.
