Concrete Belt Conveyor uses belt transmission to transport concrete from the production station to the mixer truck.
Slope Angle: 0-30
Belt width: 500/650/800/1000mm
Conveying length: Max.25 meters
Conveying capacity: 50-550m³/h
Conveying speed: 0.8-2.0 m/s
Lifting Height: adjustable
Application: Concrete belt conveyors are widely used in construction sites, concrete mixing stations and other scenarios to transport concrete, mortar, gravel, sand and other building materials.
Commitment: Free Shipping/5 Days Delivery/30-Day Returns/Support Customization
Concrete Belt Conveyor adopts a combination of high-strength rubber conveyor belt and grooved roller structure to achieve high-speed horizontal or inclined conveying of concrete mixture. It can adapt to different concrete ratios and maintain material uniformity through sidewall belts or special guide troughs. It is wear-resistant and impact-resistant, and the conveyor belt is equipped with an anti-wear layer to extend its service life. It has a flexible layout and supports installation at a horizontal angle of up to 45° to meet the space restrictions of the construction site. The equipment is equipped with a variable frequency speed motor to accurately control the conveying speed, and an automatic cleaning system is optional for easy maintenance.
Concrete Belt Conveyor is a mechanical device specially used for conveying concrete. It conveys concrete from one place to another through a continuously moving rubber belt. Its conveyor belt has specific grooves or protrusions, which can effectively prevent concrete from falling off during the conveying process.

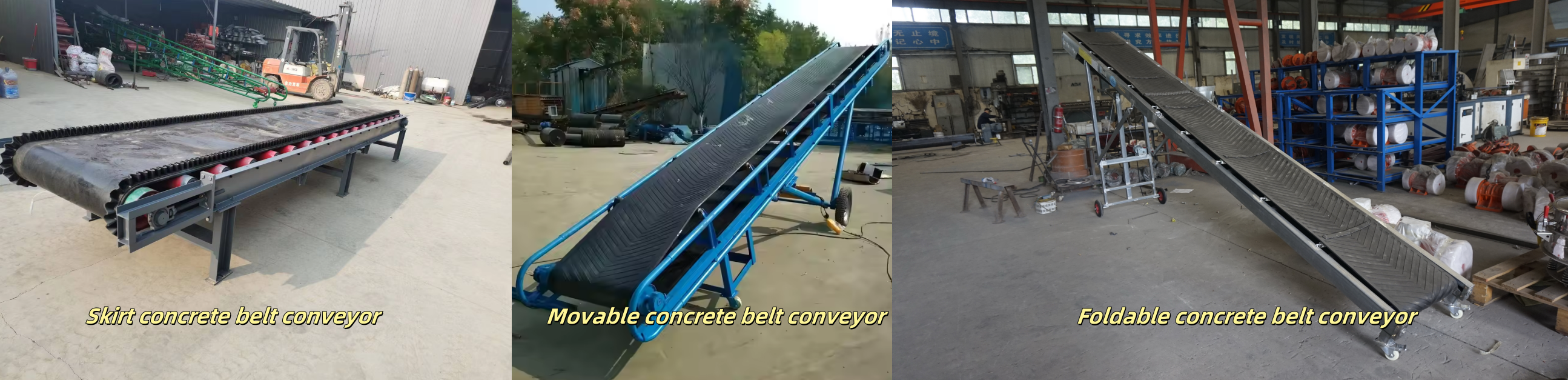

As a conveyor manufacturer, we sell different types of concrete belt conveyors, mainly including the following three types

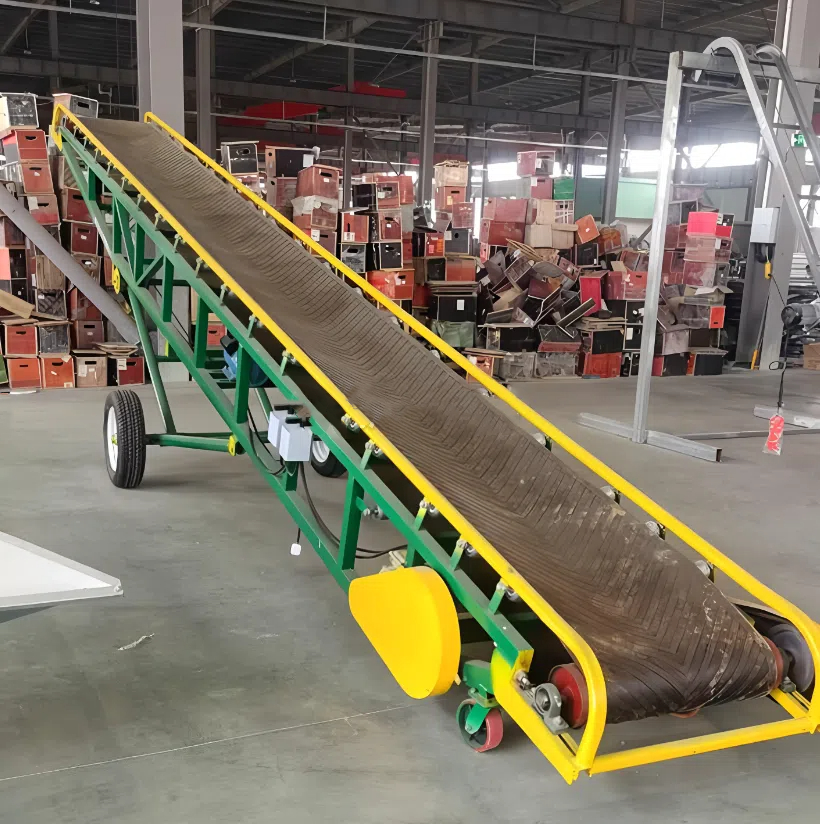

Movable concrete belt conveyor: It has a roller design at the bottom that can move the conveying position at will.
Skirt concrete belt conveyor: The skirt design can effectively prevent concrete from splashing and scattering during the conveying process.
Foldable concrete belt conveyor: It has a folding design in the middle, which can be folded up when not in use. It can be used in small scenes and low-volume concrete conveying.

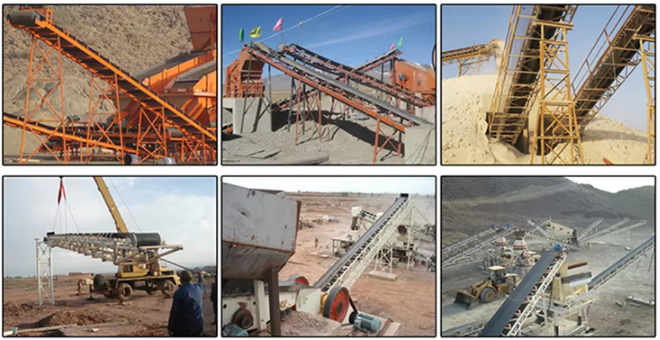

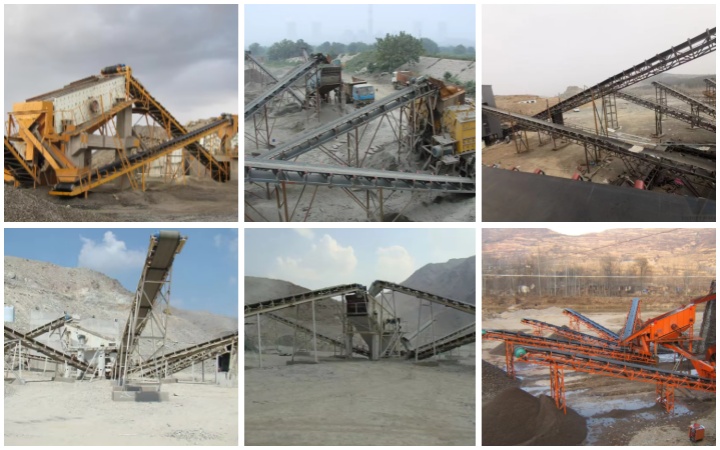

Concrete belt conveyors are mainly used for the transportation of materials such as concrete, sand, and gravel.
Concrete Mixing Plant: Transports the prepared concrete from the mixer to a truck or other storage equipment.
Construction Site: Transports the concrete from the concrete mixer to the designated location of the building materials.
Road and Bridge Construction: Transports the transported concrete to the location where it needs to be poured through a belt conveyor.
Water Conservancy Project: Used to transport concrete to large cement structures or dam construction sites to ensure construction quality and efficiency.
The key components of the concrete belt conveyor are made of alloy steel, equipped with variable frequency speed regulation and automatic cleaning systems, and its characteristics are mainly the following advantages.
Large-angle conveying: The specially designed conveyor belt and roller can achieve large-angle conveying, solving the problem of difficult conveying in high-altitude operations and complex terrain.
Wear-resistant and corrosion-resistant: The conveyor belt is made of high-strength, wear-resistant and corrosion-resistant materials.
Foldable design: We have different types of conveyors that can adapt to different scenarios.
PLC control system: PLC control system can realize automatic operation.

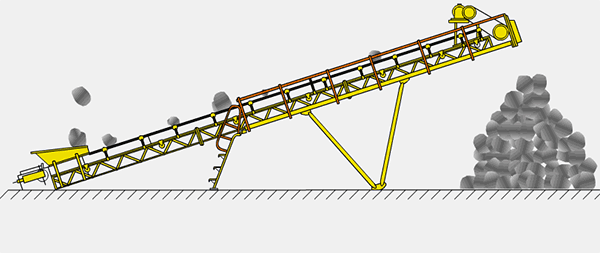

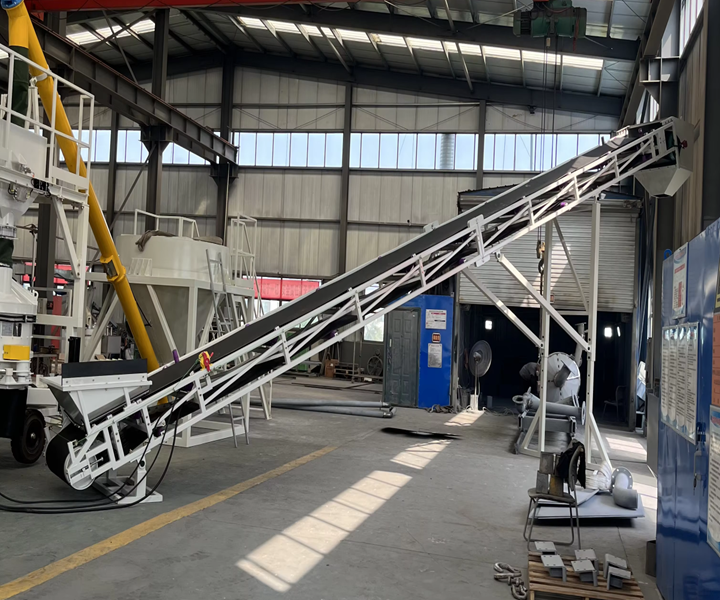

The concrete belt conveyor uses a motor to drive the circular rubber belt to operate continuously, and cooperates with trough rollers to form a stable conveying surface to achieve horizontal or inclined conveying of concrete ≤45°. The equipment ensures stable material transportation through skirt design and deep trough design, and the variable frequency speed regulation system can accurately control the conveying speed. In response to the special needs of large inclination angles, the matching Z-type inclined conveyor adopts a multi-stage return structure to achieve vertical lifting of concrete at an ultra-large inclination angle of 75-80°. The belt pressing device and reinforced roller group solve the problem of high-viscosity material sliding, providing a full range of solutions from horizontal transportation to large slope lifting.
| Double shaft horizontal mixer model | HDWJ2000 | HDWJ2500 | HDWJ3000 |
| production capacity(t/h) | 8 | 10 | 18 |
| Spindle speed(r/min) | 35 | 35 | 35 |
| motor (kw) | 7.5kw4class | 11kw4ciass | 15kw4class |
| Dimensions(LxWxH) | 3100x750x500 | 4200x800x620 | 4700x800x620 |
| equipment weight(kg) | 1600 | 2500 | 3200 |

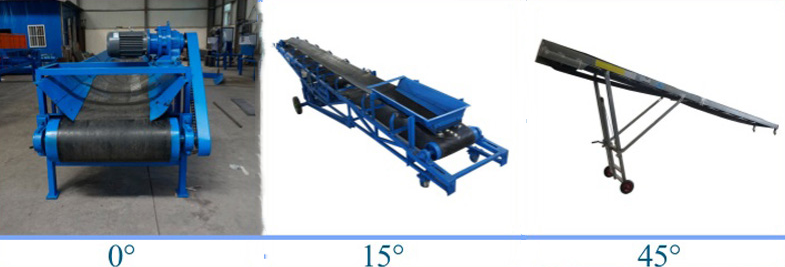

Generally speaking, the tilt angle of the concrete belt conveyor is between 0° and 45°.
0°: It is used for short-distance horizontal transportation and can be used when the material fluidity is good.
15°~25°: Common angles, generally used in construction sites and concrete mixing plants.
25°~45°: It is usually used to cross terrain with a large height difference, suitable for conveying long distances and materials with high viscosity.

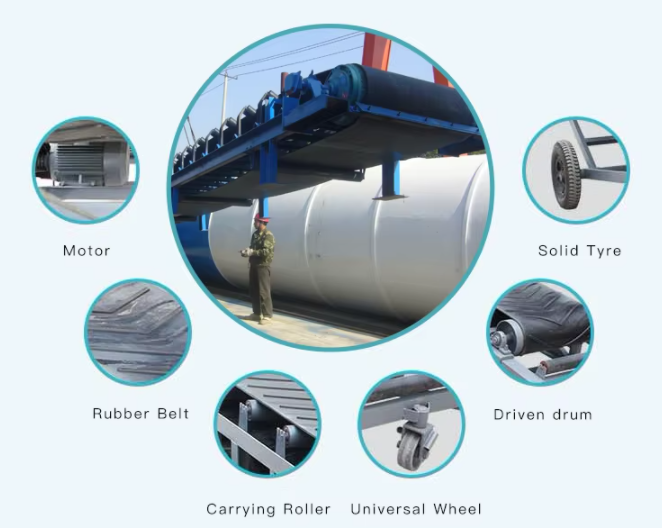

Concrete belt conveyor is a device composed of multiple components, mainly the following.
Conveyor belt: The conveyor belt is the core component of the concrete belt conveyor, usually made of rubber, plastic or metal materials for conveying concrete.
Rollers: Rollers are located at the bottom of the conveyor belt to support the belt conveyor and reduce the friction between the conveyor belt and the supporting structure.
Support structure: It is used to support the conveyor belt and other components to ensure the smooth operation of the conveyor belt.
Control system: The control system includes start-stop controllers, speed regulators and other equipment to control the start and stop, speed and direction of the conveyor belt.

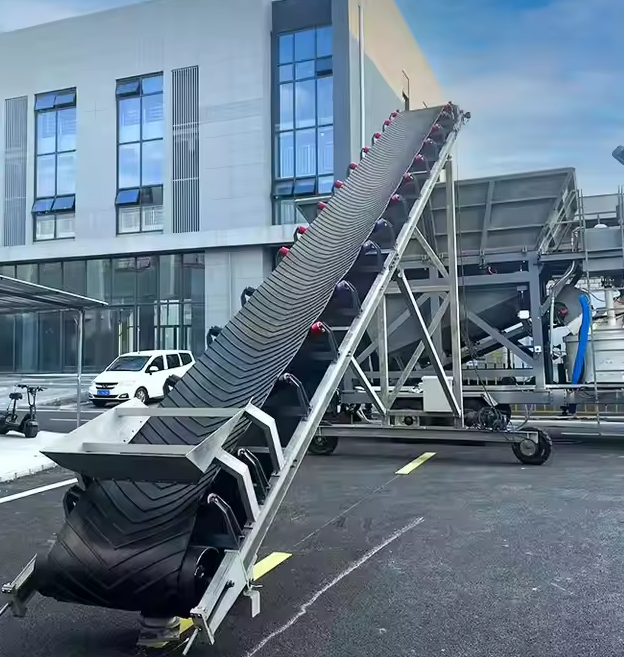

Taking a large infrastructure project as an example, the customer needs a customized concrete conveying solution with a conveying distance of 80 meters and an hourly output of 120 cubic meters. We responded quickly and designed and manufactured a large-angle reinforced belt conveyor for it, which perfectly solved the segregation problem in long-distance transportation. This is our core advantage:
In terms of output: Our equipment can meet the needs of small projects from 30m³/h to large projects of 200m³/h
In terms of conveying length: We provide flexible configurations from 20 meters to 150 meters to ensure a perfect match with your construction site layout.
Customization: In addition to fixed models, we can customize a suitable conveying solution for you according to your conveying site.
Choosing us, you will get not only equipment, but also a tailor-made concrete delivery solution!
