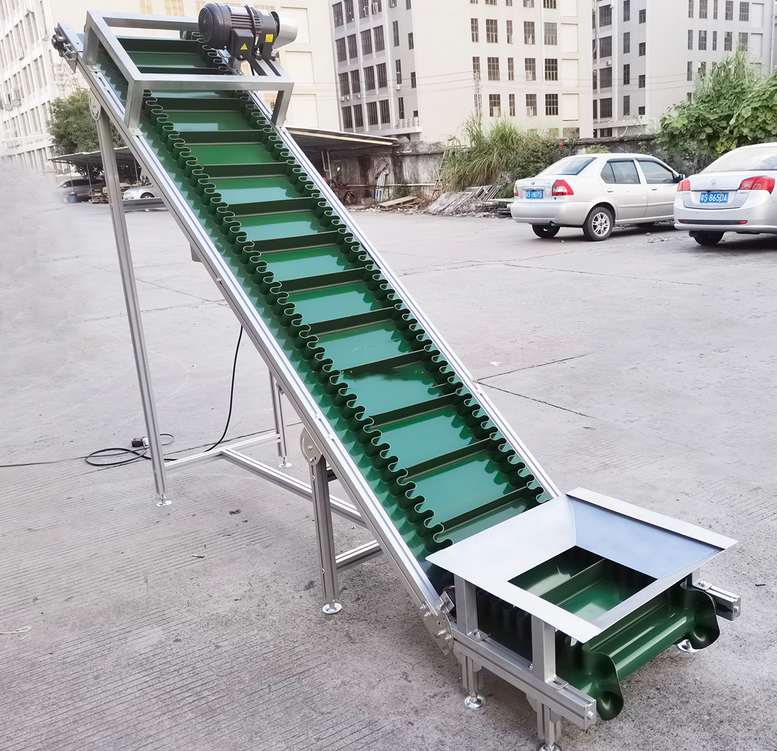

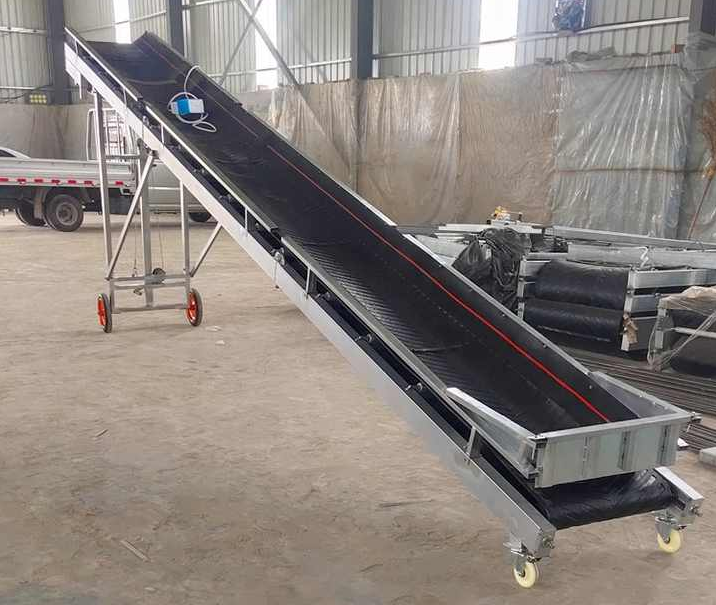

Concrete Belt Conveyor With Portable Base is a concrete conveying equipment that combines mobility, high-speed conveying and rapid deployment. Concrete Belt Conveyor is designed for construction sites, small projects and narrow spaces. Its core feature is that it is equipped with heavy-duty universal wheels or crawler chassis, which can be easily transferred and supports horizontal to 30° inclination conveying, significantly improving concrete pouring efficiency and reducing manual handling costs.
Break through site limitations with a foldable base, 360° rotating hopper for precise unloading, wear-resistant materials and intelligent control.
Flexible movement: equipped with reinforced rollers or rubber tracks to adapt to different ground conditions (such as mud, slopes).
Quick installation: modular design, assembly and commissioning can be completed in 10-15 minutes.
Fast conveying: conveying capacity 10-60m³/h, conveying distance 5-50 meters (customizable and extended).
Strong adaptability: supports electric (380V) or diesel drive, meeting the working environment with or without power supply.

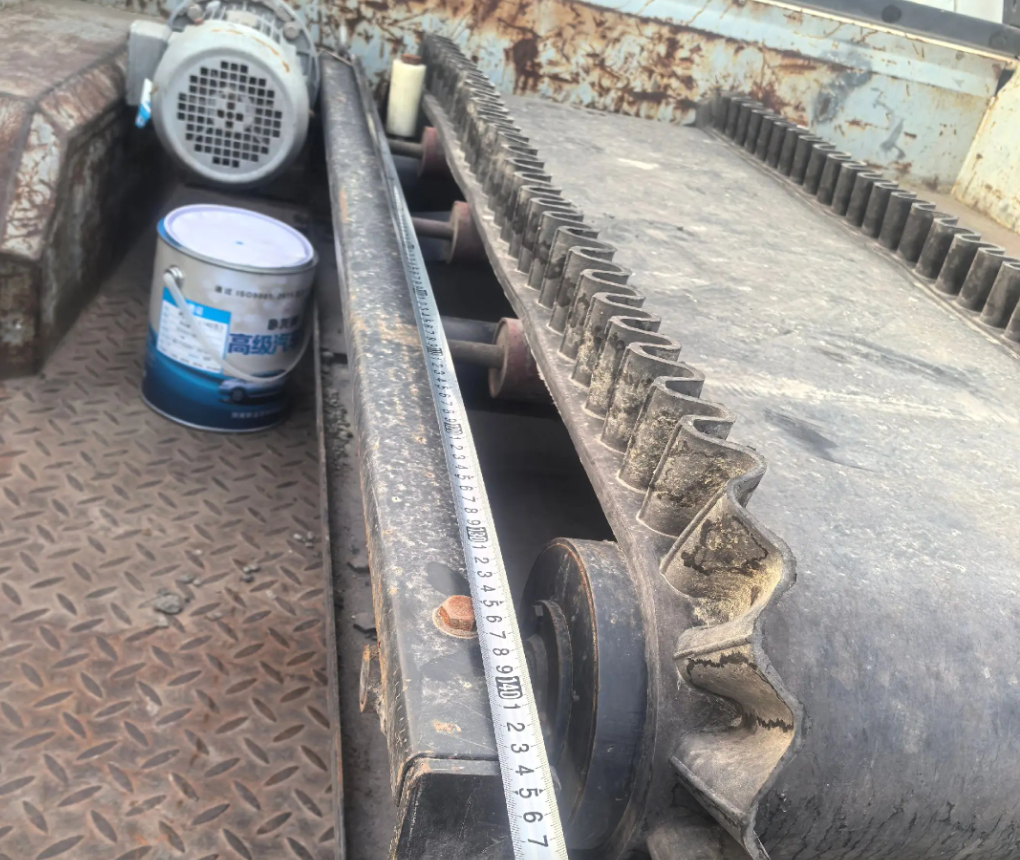

Durable structure: channel steel frame + wear-resistant rubber conveyor belt, impact-resistant, life of more than 5 years.

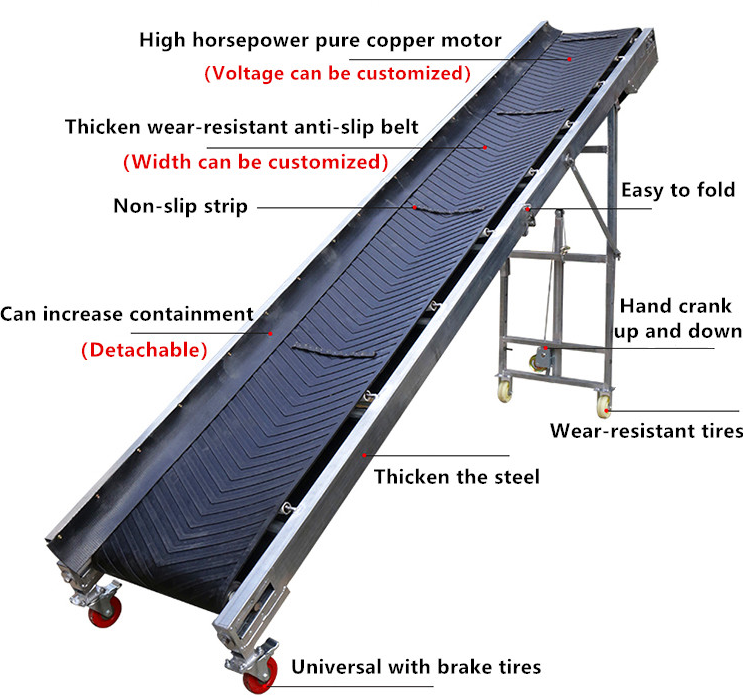

The portable base concrete belt conveyor is based on modular design, and each component works together to achieve mobility, conveying stability and unloading accuracy.

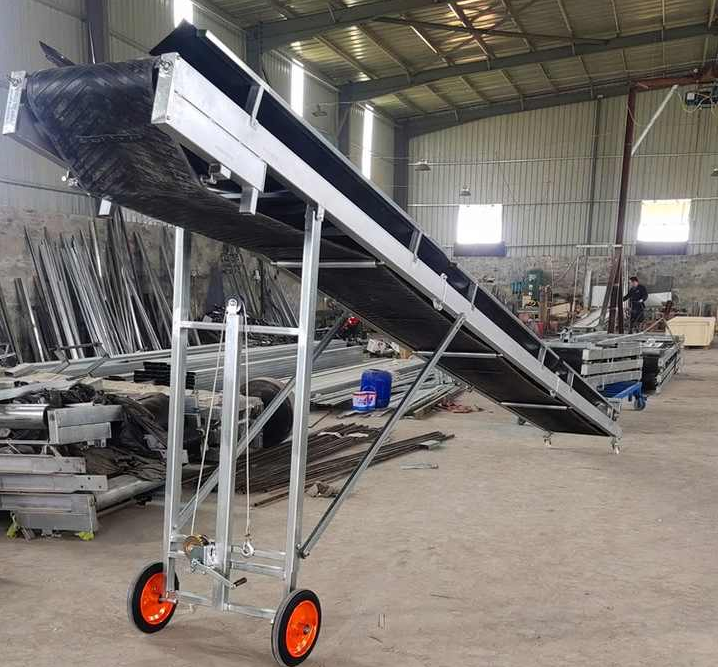

Base support system: The foldable frame is made of high-strength aluminum alloy or Q345B steel, which is 30% lighter than traditional steel structure, but can carry 5-10 tons.

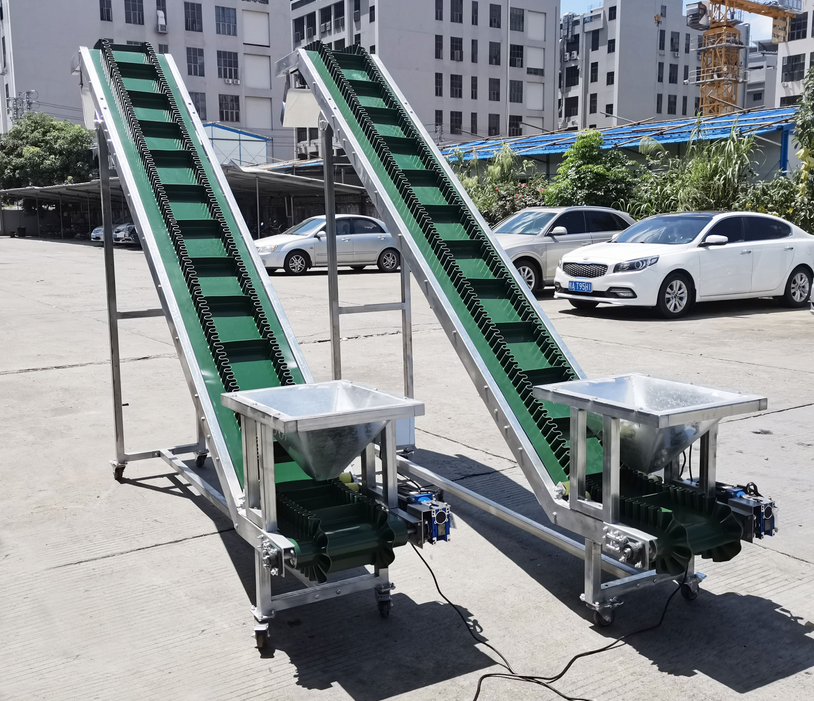

Hopper system: The conventional volume of the hopper is 1.5-3m³, which can be customized according to your needs. The inverted trapezoidal design ensures smooth self-flow of concrete. The inner wall is made of 6-8mm thick wear-resistant manganese steel plate or anti-stick coating, and the friction coefficient is reduced by 30%.
Upgraded unloading function: A 0.5-1.5kW vibration motor is installed on the inner wall of the hopper to break the concrete lumps through high-frequency vibration, and the unloading speed is increased by 1.5 times.
The combination of the foldable base and the mobile wheel group shortens the equipment transfer time to less than 50% of the traditional model, and can be quickly leveled in narrow spaces, slopes and other complex terrains.
The portable base concrete belt conveyor drives the belt to circulate concrete through the power system. The foldable frame and mobile wheel group of the base realize flexible transfer, the 360° rotating discharge port of the hopper cooperates with speed control for precise unloading, the inner wall vibration motor breaks the lumps, and the intelligent system monitoring ensures stable operation.

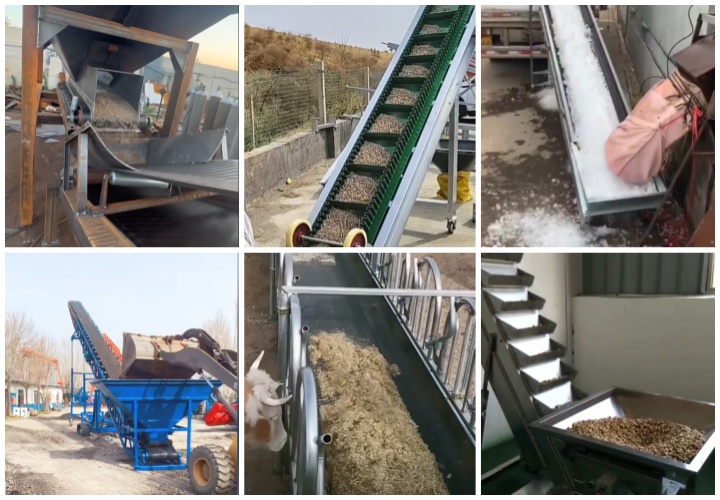

The portable base concrete belt conveyor is widely used in scenarios where traditional equipment is difficult to operate quickly due to its flexible movement, fast transfer and precise unloading.
Renovation of old urban communities: Concrete can be directly transported to indoor or balcony through 1.5-meter-wide corridors or alleys, replacing the inefficient transportation of manual carts.
Underground garage and tunnel construction: In closed spaces (such as the pouring of secondary structures in underground garages), the equipment can move autonomously without lifting, and the discharge port can be rotated to the side to accurately fill the wall or column formwork and reduce the waste of concrete spillage.
Mountain roads and water conservancy projects: On slopes with a slope of ≤15° (such as slope protection in mountainous areas and pouring of irrigation canals), four sets of adjustable legs can complete site leveling within 10 minutes.
Agricultural infrastructure in hilly areas: In uneven fields, the equipment legs have a single leg travel of ±300mm, which can quickly adapt to complex foundations such as pebbles and soil.
Mall/workshop renovation: In places that are sensitive to hygiene and noise, such as food factories and hospitals, the equipment operating noise is ≤75dB (10dB lower than concrete pump trucks), and the anti-stick coating on the inner wall of the hopper is easy to clean daily, meeting food-grade environmental requirements.
Subway station auxiliary structure construction: In narrow areas such as the platform cable trench (width 300mm), the equipment belt speed is adjustable from 0-2m/s to accurately control the concrete flow and avoid excessive pouring.
The core of choosing a portable base concrete belt conveyor is to solve the limitations of traditional equipment in complex scenarios. Specifically, there are the following points.
Break through site restrictions: After the base of the equipment is folded, the width is ≤1.2 meters and the height is ≤2.5 meters. It can easily enter narrow scenes such as old communities and underground garages that are difficult for traditional large equipment to reach through 1.5-meter-wide corridors, alleys or standard doorways.
Precise and controllable unloading: The 360° rotating unloading port can realize left, middle and right three-gear positioning, with an adjustable angle of 0°-45°. It can directly dock with the pump truck, string barrel or template edge to avoid secondary concrete transportation, and reduce the waste rate from 15% of the traditional process to less than 3%.
Efficient and continuous operation: The hopper volume is 1.5-3m³, and 30-150m³ of concrete can be transported per hour. A single discharge of a 3m³ hopper can cover 50㎡ of road pouring (thickness 18cm), reducing the waiting time for refilling.
Comprehensive cost optimization: The initial investment of the equipment is only 1/4-1/3 of that of a small concrete pump truck, the wear-resistant belt has a life of 3-5 years, the annual maintenance cost is 60% lower, and the electric drive wheel model saves 30% of fuel per hour than the pump truck.
The price span of portable base concrete belt conveyor is large and is affected by many factors. If the basic model has a low conveying capacity and a limited conveying volume per hour, the price is about $600-1500. If the conveying volume is higher, such as equipment that can convey 30-150 cubic meters of concrete per hour, the price is usually in the range of $2800-7000. In addition, the size of the hopper volume, the length of the belt, the quality of the material, and whether it is equipped with intelligent control functions will affect its price. If you need it, please feel free to contact us for the latest quotation!
Portable base concrete belt conveyors are becoming an important tool for modern construction with their convenient mobility and efficient conveying. Whether it is a temporary project or a fixed plant, it can significantly improve the efficiency of concrete conveying and reduce labor intensity. If you need a customized solution or to learn more about models, please feel free to contact us!
