Convenient Low Cost Dirt Conveyor

Convenient Low Cost Dirt Conveyor is designed for small and medium-sized earthwork projects, agricultural planting and landscaping. It adopts a lightweight modular structure, weighs less than 150kg, can be quickly assembled in 10 minutes, is easy to transport, has a conveying capacity of 10-30m³/h, is suitable for a variety of soils such as clay and sand, and has a maximum conveying distance of 15 meters. Compared with traditional conveying equipment, it reduces investment by 40%-60%, and has the characteristics of rapid deployment and flexible transfer.

Core features of Convenient Low Cost Dirt Conveyor

Dirt Conveyor is designed with low-cost and efficient transportation as the core, and has the following significant advantages.

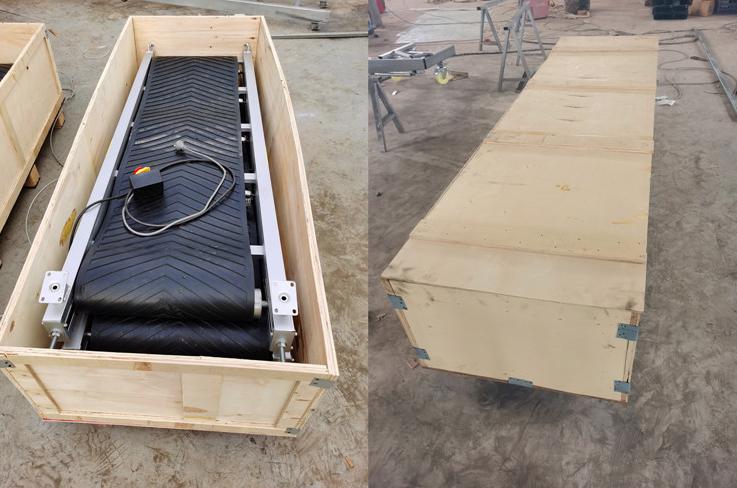

Simple structure and convenient movement: mostly adopt modular design, the whole machine is light (usually 500kg), can be quickly disassembled and assembled, and is suitable for transportation tools such as tricycles and pickup trucks. It is suitable for transfer in complex terrains such as fields and narrow construction sites.

Affordable price: The market price is usually between US$276 and US$1,380. , which is only 1/10~1/5 of large-scale construction machinery.

Low maintenance cost: The core components (such as belts, rollers, and spiral blades) use universal standard parts, with low maintenance and replacement costs. Daily maintenance only requires regular lubrication of bearings, and the annual maintenance cost is less than US$25.

Adaptable to a variety of soil types: It can transport loose soil, humus, sand, mixed soil of construction waste, etc., with loose requirements on moisture content (≤25%), and wet soil needs to be equipped with anti-sticking design (such as deepening the surface texture of the belt).

Mainstream types of Convenient Low Cost Dirt Conveyor

According to structural differences, convenient dirt conveyors are mainly divided into the following two categories.

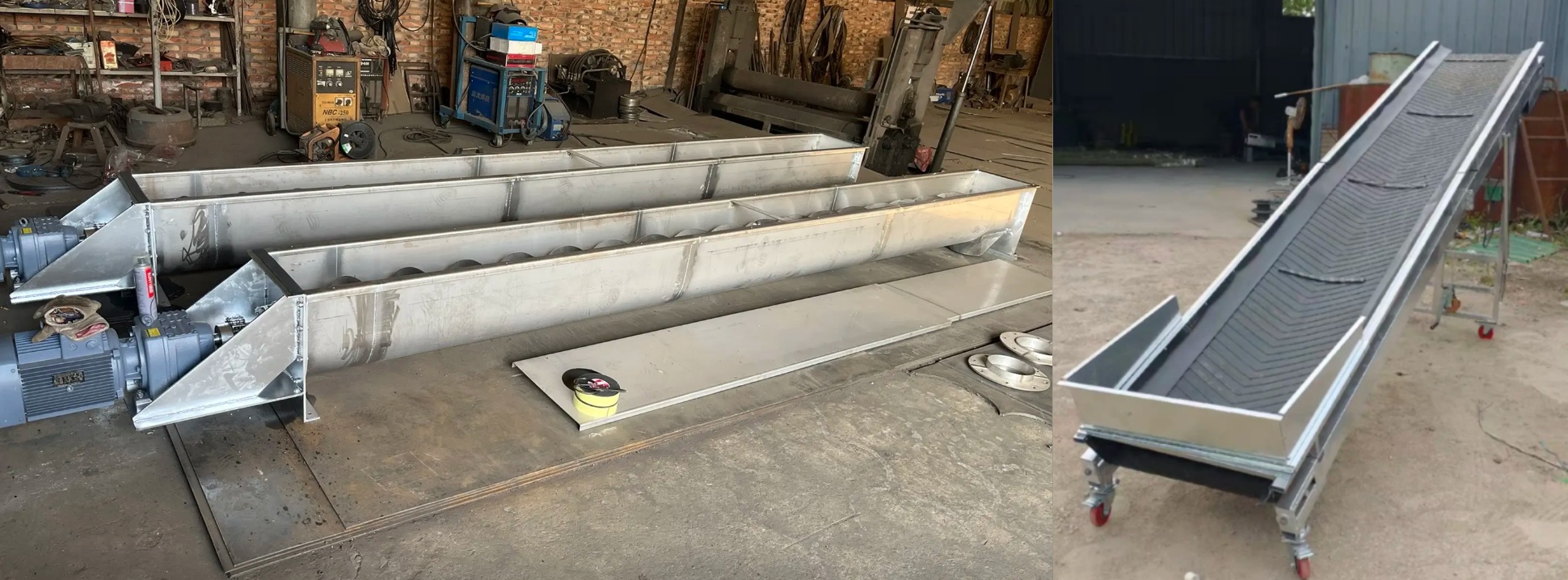

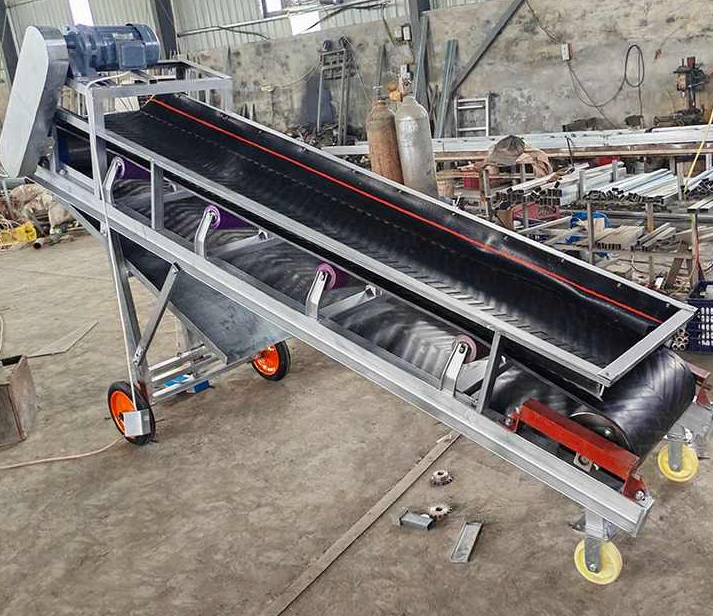

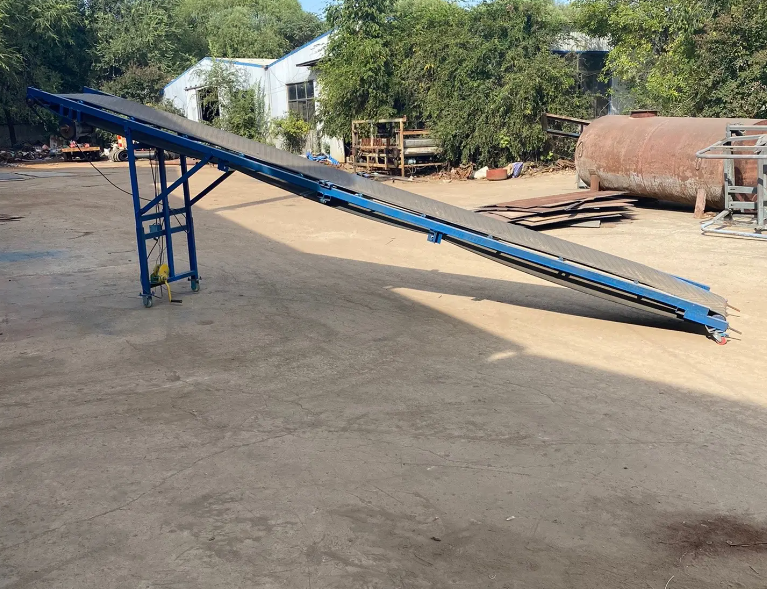

Belt-type dirt conveyor: The conveying is stable, the soil damage rate is low, and it is suitable for conveying humus soil or seedling substrates containing roots; the conveying inclination angle can reach 20°~25°, and the horizontal conveying distance can be up to 50 meters (can be extended by multiple machines in series).

Spiral dirt conveyor: The spiral blade rotates to push the material forward, and there are two types: shaft spiral and shaftless spiral. The shaftless spiral type can avoid soil entanglement and is suitable for conveying mixed soil containing weeds and tree roots; the closed conveyor trough design has good dust prevention effect and reduces soil spillage loss (loss rate <3%). The inclination angle can reach 30°, and the horizontal conveying distance is ≤30 meters.

Convenient Low Cost Dirt Conveyor Comparison

Convenient Low Cost Dirt Conveyor Selection

If long-distance horizontal conveying (>20 meters) or inclined climbing is required, belt conveyors are preferred;

If the soil contains many impurities, is easy to entangle, or requires closed conveying (such as indoor operations), shaftless spiral conveyors are selected.

Convenient Low Cost Dirt Conveyor Manufacturer

As a professional conveyor manufacturer, Dahan Machinery has always focused on developing cost-effective earthmoving solutions. The lightweight modular conveying equipment we produce has three core advantages: quick installation (10 minutes to assemble), convenient transportation (weight <150kg) and great value (starting from 150 yuan). It is widely used in agricultural planting, landscaping and small construction projects. The product adopts a wear-resistant and anti-sticking design, equipped with electric/diesel dual power options, with a conveying capacity of 30m³/h, saving 40%-60% of the cost compared to traditional equipment, and providing customized services such as anti-corrosion and explosion-proof. Choose Dahan Machinery to make your earthmoving work faster and more economical!

Convenient and low-cost soil conveyors provide high-speed and economical solutions for small and medium-sized earthwork operations with the idea of ​​"small equipment solving big problems". Whether it is agricultural planting, garden maintenance or family infrastructure, the reasonable selection of such equipment can significantly reduce labor intensity and improve work efficiency, becoming a practical tool for modern grassroots production.
