Handheld Grain Suction Machine

Handheld Grain Suction Machine is a portable grain transfer equipment designed for agriculture and farms. It provides two models: stainless steel and beef tendon hose. The suction range is 5-15 meters, which can be customized and the processing capacity is 1-3t/h. The equipment has three options: diesel/electric/motor. It does not need to be fixed and installed. One person can complete operations such as grain silo cleaning and truck unloading.

Types of Handheld Grain Suction Machine

As a source manufacturer, we provide customers with hose type and stainless steel type to meet customers' different transportation needs.

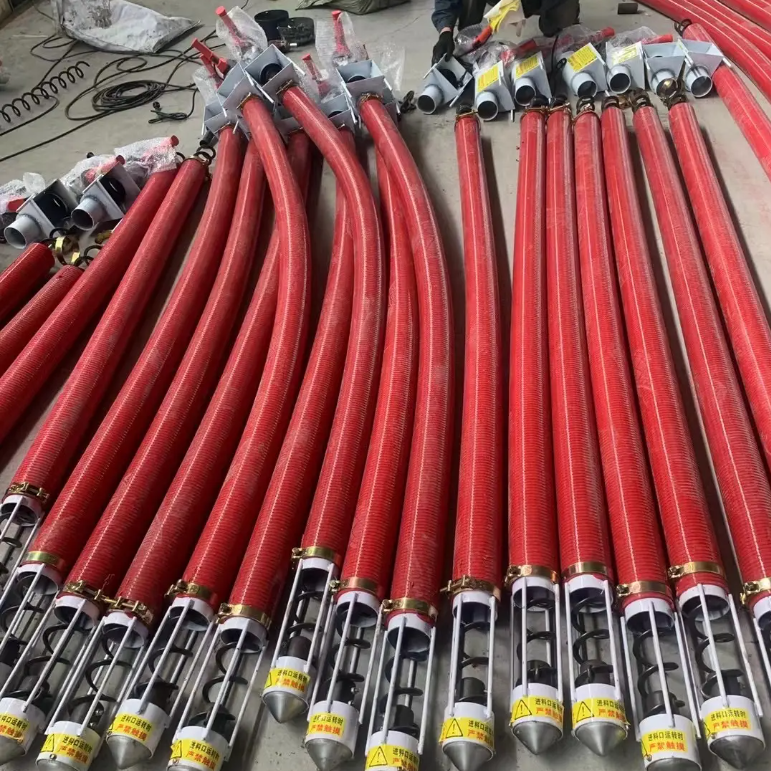

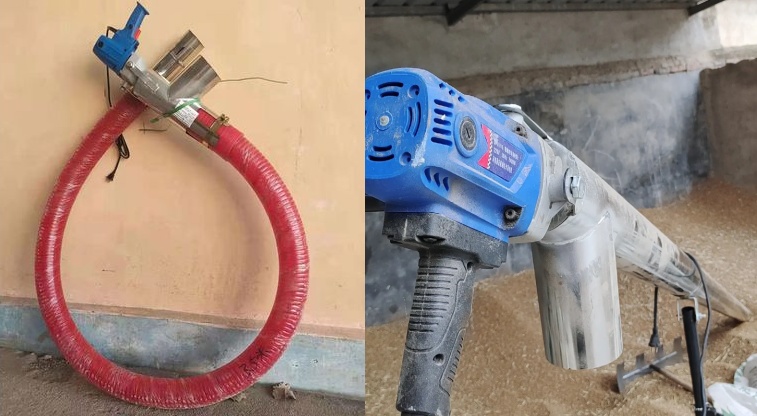

Hose type handheld grain suction machine: With high-strength wear-resistant beef tendon hose as the core material, the whole machine weighs only 10-15kg, which is light and easy to carry. Its bendable characteristics enable it to shuttle freely in narrow spaces, and at the same time, it is low in cost, especially suitable for temporary or low-frequency grain transportation operations.

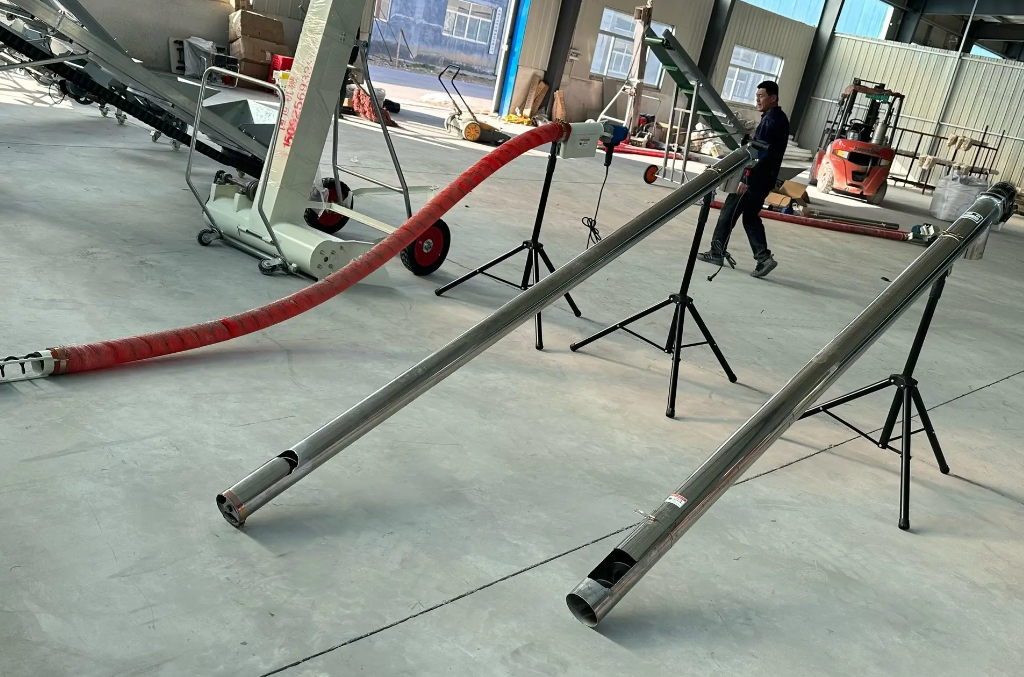

Stainless steel handheld grain suction machine: It uses 304 stainless steel tube body with metal suction head, which has excellent durability, outstanding wear resistance and corrosion resistance. As a sanitary equipment, it meets the strict standards of the food and feed industry, and its high suction design makes it perform well when conveying large particles or wet grains.

Advantages of Handheld Grain Suction Machine

The whole machine is light and easy to carry, and the bendable conveying pipe is suitable for multiple scenarios, with high conveying capacity, wear-resistant materials and anti-loss, saving electricity and low maintenance.

Lightweight body: The weight of the whole machine is only 10-15kg (hose type) to 20-25kg (stainless steel type), which can be easily carried by one hand or two people, and is suitable for mobile operations in multiple scenarios such as grain warehouses and fields.

High conveying efficiency: The spiral propulsion design achieves a conveying capacity of 7-9 tons/hour, which is 5-8 times higher than the efficiency of manual handling, and can complete the loading and unloading of about 200 bags of grain in 1 hour.

Multi-directional conveying capacity: supports horizontal (≤10 meters), inclined (≤45°), and vertical (≤3 meters) conveying, and is suitable for grain piles, trucks, grain storage tanks and other scenes with different height differences.

Anti-entanglement design: The spiral blade adopts a variable pitch structure to prevent straw, hemp rope and other debris from getting stuck in the machine.

Protective device: The motor is equipped with an overload protection switch as standard, and an anti-slip buckle is installed at the hose interface to avoid safety hazards caused by falling off during operation.

Working principle of Handheld Grain Suction Machine

When the motor is started, it drives the internal spiral spring or spiral blade to rotate at high speed. At the feed inlet, the rotating spiral component generates a strong pushing force to roll the grain into the conveying pipeline. The grain continues to rise and move forward along the spiral rise angle direction of the spiral component. During the conveying process, the material overcomes gravity and friction under the push of the spiral and continues to move toward the discharge port. When it reaches the discharge port, the grain is automatically discharged due to gravity and the pushing effect of the spiral, completing the entire grain suction and conveying process.

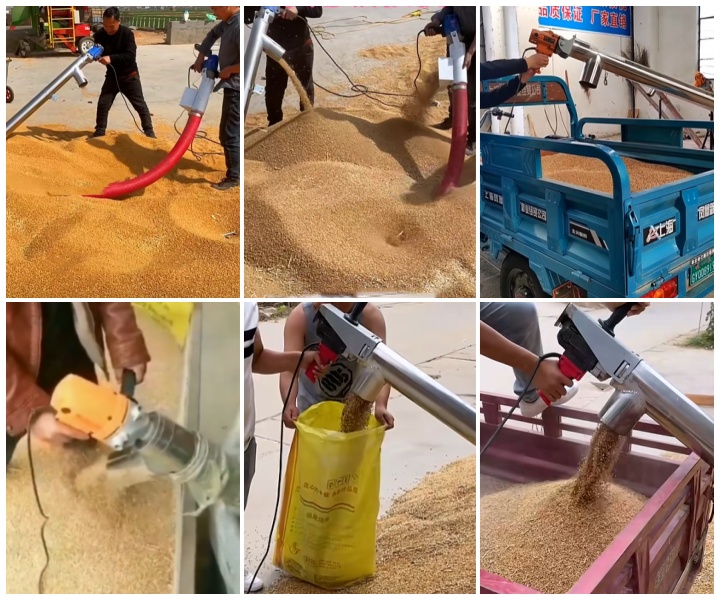

Application of Handheld Grain Suction Machine

It is suitable for farmers' grain storage and transportation, grain depot stacking and loading, food/feed factory raw material transportation, and farm feed delivery, and can flexibly respond to the needs of multiple industries.

Rural farmers: During the harvest season, farmers can use handheld grain suction machines to quickly transport wheat, corn, soybeans and other grains that have just been harvested from the fields to their home warehouses for storage.

Agricultural cooperatives and small farms: They can be used for stacking and sorting grain in the warehouse, and for transferring and mixing grains from different locations and batches. At the same time, when adding seeds to the seeder, it can also accurately and efficiently complete material transportation to ensure smooth sowing.

Small grain processing plants: Such as flour mills and rice processing plants, raw grains can be quickly transported from the storage area to the processing equipment to ensure the continuous operation of the production line.

Animal husbandry: Handheld grain suction machines can be very useful when transporting and storing feed in farms. Whether it is unloading bagged feed from transport vehicles to warehouses, or transporting feed in warehouses to feeding troughs in various breeding areas.

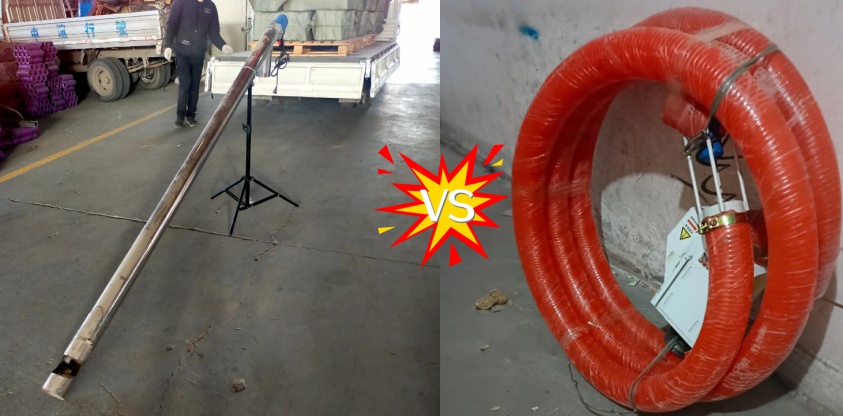

Hose grain suction machine vs stainless steel grain suction machine

Handheld Grain Suction Machine selection recommendations

When choosing a handheld grain suction machine, it is crucial to select the appropriate type according to actual needs. Hose type and stainless steel type have their own focuses.

Hose handheld grain sucker: If the budget is limited, the hose type grain sucker is the only economical choice. Its manufacturing cost is low, only one-third to one-half of the stainless steel type. In temporary use scenarios, such as seasonal grain harvesting and short-term warehouse transfer, the convenience advantage of the hose type grain sucker is fully demonstrated. In terms of lightweight requirements, whether in narrow granary aisles, low containers, or fields with complex terrain, it can flexibly shuttle with its flexible hose to achieve high-speed operation, which is perfectly suitable for temporary, non-high-frequency grain transportation tasks.

Stainless steel handheld grain sucker: For high-frequency operation scenarios, the stainless steel type grain sucker stands out with its excellent durability. Its 304 stainless steel tube body and metal suction head are extremely resistant to wear and corrosion. Even if it is operated continuously for a long time every day, the loss of key components is extremely small, and the service life can reach 5-8 years, which is much higher than the 2-3 years of the hose type. In a humid or highly corrosive environment, such as granaries in coastal areas and feed mills that frequently contact fertilizers, ordinary materials are prone to rust and damage, while stainless steel grain suction machines are not afraid of high humidity and acid-base corrosion and can operate stably.

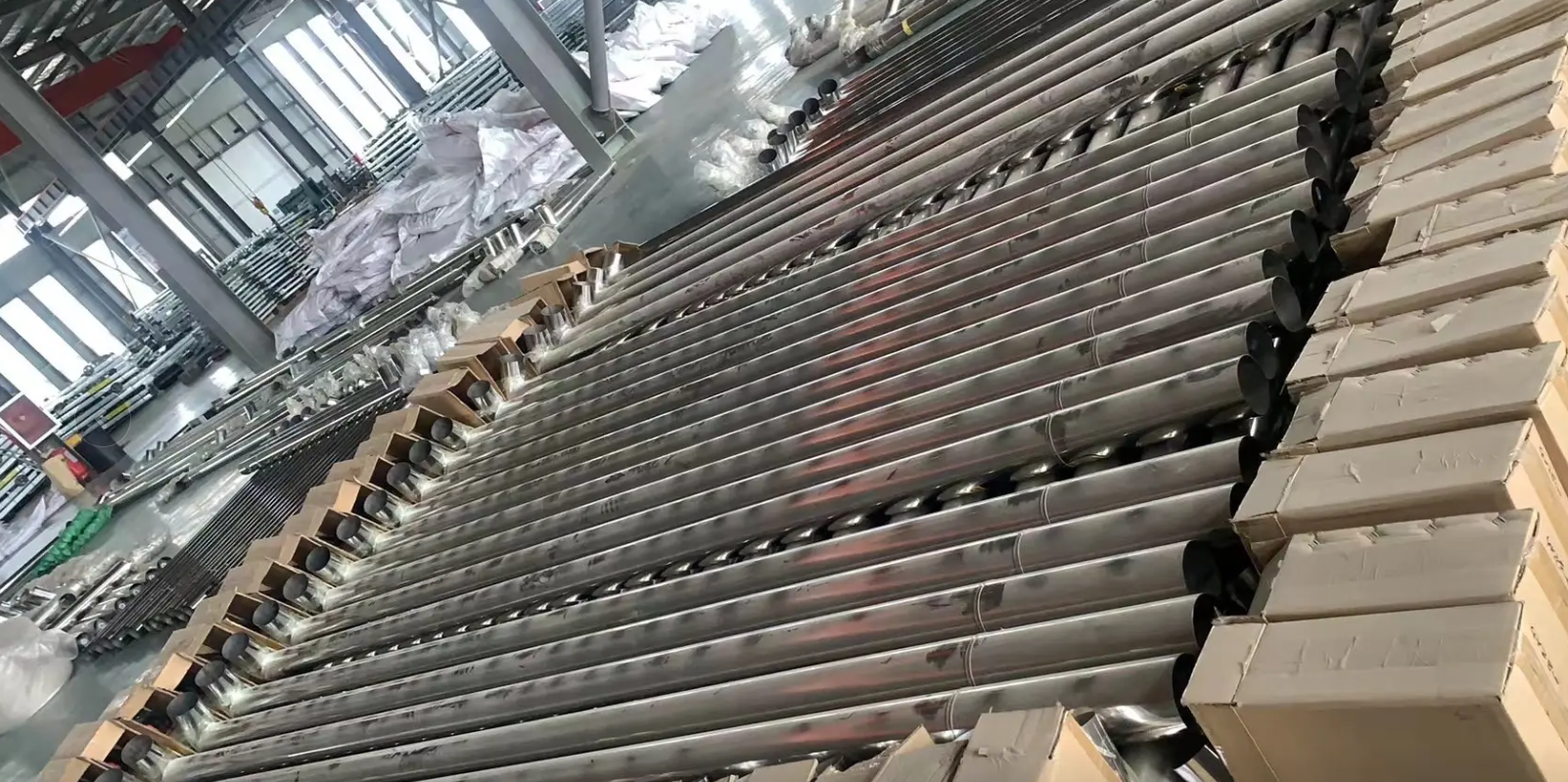

Handheld Grain Suction Machine Manufacturer

Professional handheld grain suction machine manufacturer, focusing on the research and development and manufacturing of conveying equipment for many years, providing two series of models of stainless steel (304 food grade) and beef tendon hose, providing a variety of choices of 50-100mm pipe diameter and 5-12m suction range, supporting electric/motor/diesel power customization, and has served more than 1,000 customers in agriculture, breeding, etc. Typical cases include bulk purchases of stainless steel models for grain reserves and feed feeding systems for farms with hose models. Free customization needs are provided to provide you with a good conveying solution.

As the "new favorite" of modern agriculture and grain storage, handheld grain suckers are gradually replacing traditional manual handling with their unique advantages. Whether it is a flexible hose type or a stainless steel type that focuses on sturdiness and hygiene, they all provide high-speed and convenient solutions for grain handling. Choosing a handheld grain sucker that suits you will surely become an indispensable assistant in your grain operations.
