Shaftless screw conveyor, as a key equipment for handling complex materials such as sludge, kitchen waste, and chemical waste, its performance directly affects production efficiency. As a Shaftless screw conveyor suppliers who has been deeply involved in the field of industrial material transportation for many years, we have always been committed to providing high-quality shaftless screw conveyors and customized conveying solutions to global customers.
As a supplier of shaftless screw conveyors, materials and functions can be customized on demand, energy consumption is 18% lower, maintenance is less, and professional capabilities are used to provide you with high-quality solutions.

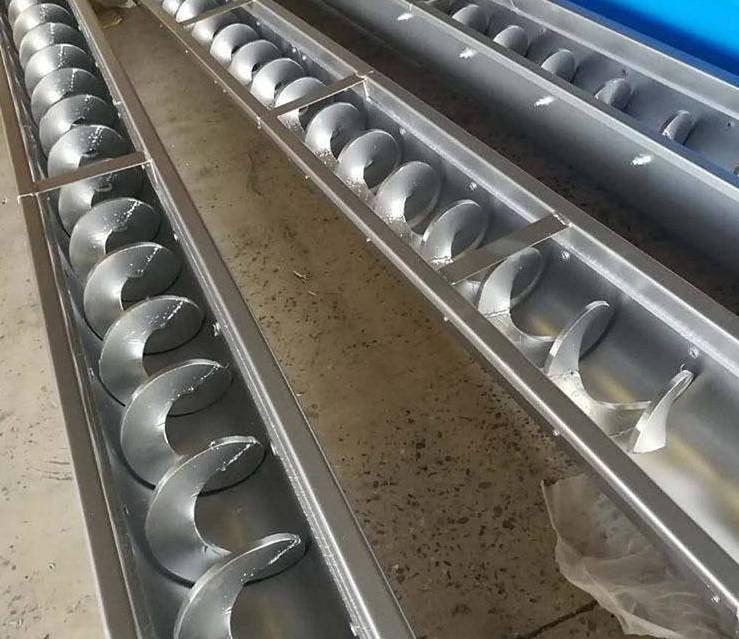

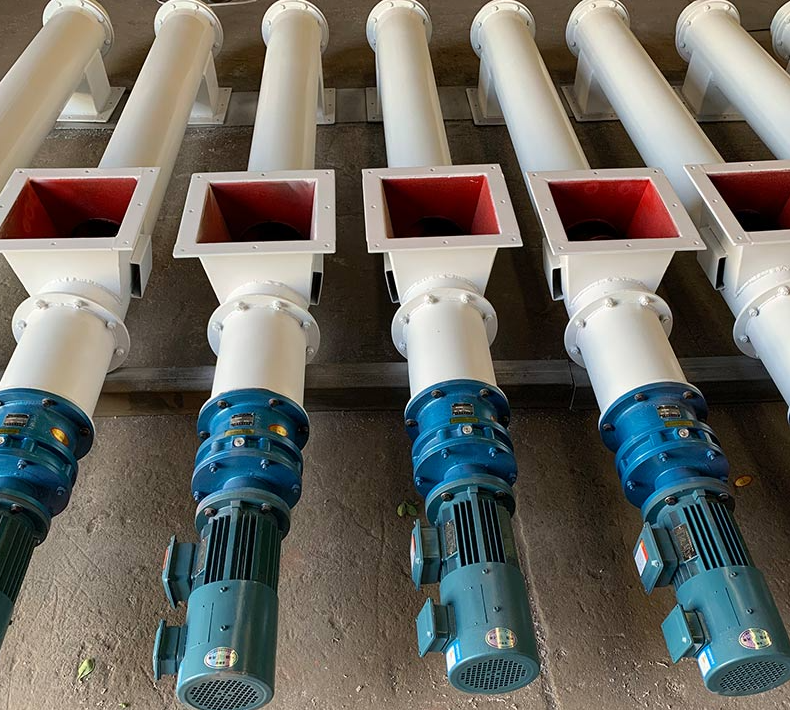

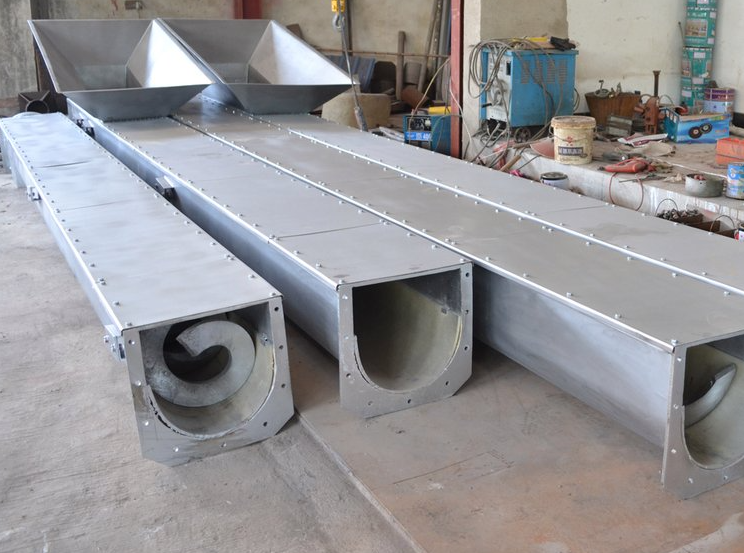

Innovative design: Abandoning the traditional shaft structure, an integral shaftless spiral blade design is adopted to fundamentally solve the problem of entanglement of fibrous materials. The equipment is equipped with two standard U-shaped/tubular trough structures. The U-shaped open type is easy to inspect and maintain, and the tubular closed type can achieve zero dust leakage to meet the environmental protection needs of different working conditions.
Strict quality control: The spiral blades are made of Q345B wear-resistant steel or 316L stainless steel, the key components are tested by ultrasonic flaw detection, and the trough welding accuracy is controlled within ±0.5mm.
Customized service
Flexible material selection: Provide multiple material solutions for different material characteristics: carbon steel + wear-resistant coating is suitable for abrasive materials such as sandstone, construction waste, etc.; food-grade 304 stainless steel is mirror-polished and suitable for flour and pharmaceutical powder transportation; 316L stainless steel trough for the chemical industry, with polytetrafluoroethylene lining, acid and alkali corrosion resistance is improved by 90%.

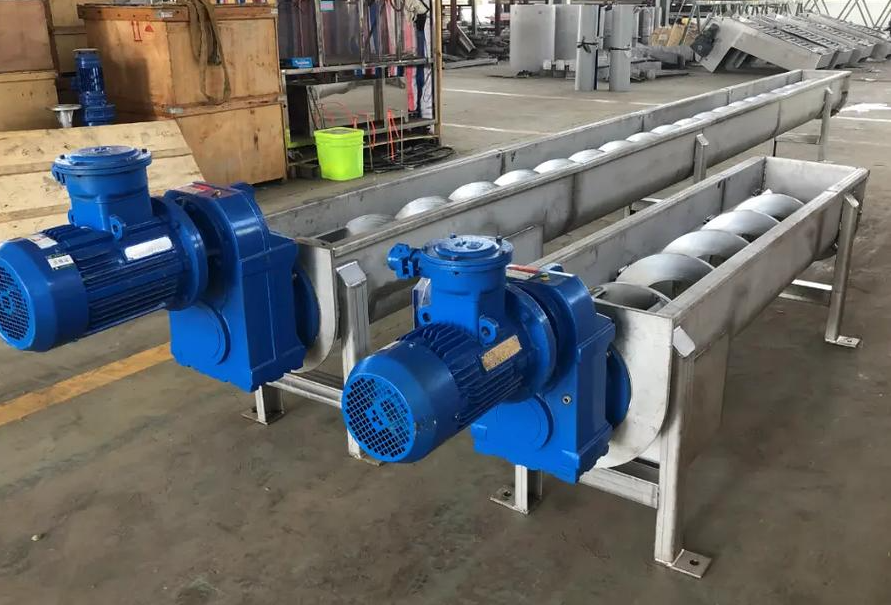

Functional modular expansion: Functional modules such as variable frequency speed regulation system, CIP online cleaning device, ATEX certified explosion-proof motor, etc. can be integrated as needed.
We provide full-cycle service for shaftless screw conveyors, from demand analysis, solution design to equipment customization, to escort the high-speed operation of the equipment throughout the whole process.
One-stop solution: Professional technical team provides on-site survey, scheme design, simulation services, and customizes the optimal configuration according to the requirements of conveying distance (single machine up to 30 meters), angle (≤90° tilt) and flow rate (maximum 458m³/h). Example
Customized design: We can make a suitable production equipment solution for you according to the customer's production needs and production site.
All-round service: We provide a full range of services such as pre-sales, in-sales, and after-sales to ensure that your entire purchase process is smooth.
| Model | WLS150 | WLS200 | WLS250 | WLS300 | WLS400 | WLS500 |
| Spiral diameter(mm) | 150 | 184 | 237 | 284 | 365 | 470 |
| Outer diameter(mm) | 180 | 219 | 273 | 351 | 402 | 500 |
| Incline degree(a) | 0 °-30 ° | 0 °-30 ° | 0 °-30 ° | 0 °-30 ° | 0 °-30 ° | 0 °-30 ° |
| Max Length(m) | 12 | 13 | 16 | 18 | 22 | 25 |
| Capacity(t/h) | 2.4 | 7 | 9 | 13 | 18 | 28 |
| Motor | Model | L ≤ 7 | Y90L-4 | Y100L1-4 | Y100L2-4 | Y132S-4 | Y160M-4 | Y160M-4 |
| Power kW | L ≤ 7 | 1.5 | 2.2 | 3 | 5.5 | 11 | 11 | |
| Model | L>7 | Y100L1-4 | Y100L2-4 | Y112M-4 | Y132M-4 | Y160L-4 | Y160L-4 | |
| Power kW | L>7 | 2.2 | 3 | 4 | 7.5 | 15 | 15Notes : The parameter above is just for reference, Model please inquiry us directly. We accept customization. |
When purchasing a shaftless screw conveyor, you need to pay attention to the conveying distance, screw material, drive device and lining material, and match the efficiency and cost as needed.
Conveying distance: The conveying distance of a single machine is inversely proportional to the capacity. The maximum conveying length of a conventional single machine is 30 meters. If it exceeds this distance, a multi-stage series design is required. For example, when treating 200 tons of screen residue per day in an urban sewage treatment plant, 3 20-meter equipment must be configured in series to ensure conveying efficiency and stability.
Carbon steel: has significant cost advantages, suitable for conveying non-corrosive materials such as cement, sand and gravel, economical and practical.
304 stainless steel: has good general corrosion resistance and is widely used in food processing, chemical industry and other scenes with requirements for hygiene and corrosion prevention.
316L stainless steel: has outstanding resistance to chloride ion corrosion, especially suitable for strong corrosive environments such as seawater desalination and hydrometallurgy, ensuring long-term stable operation of equipment.

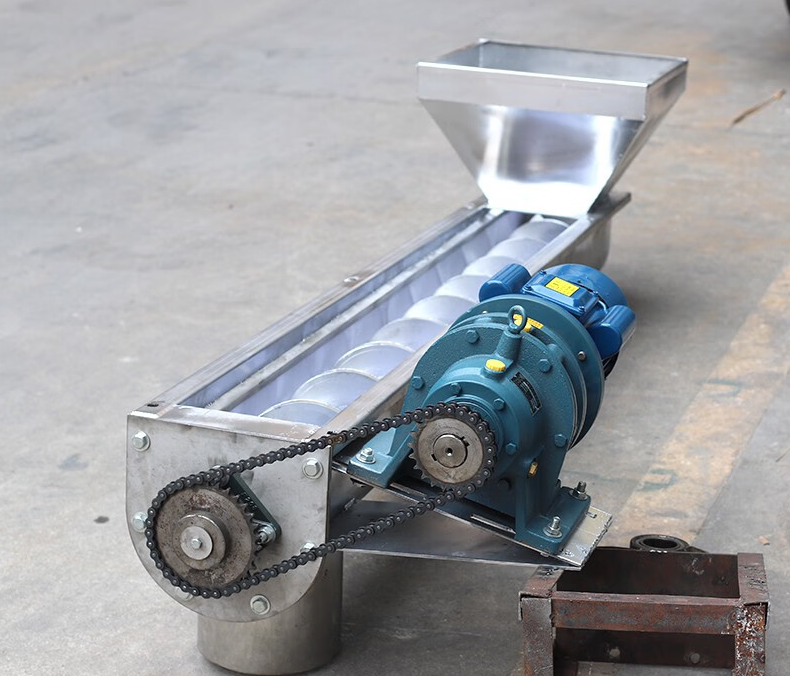

Cycloidal pinwheel reducer: compact structure and small size, suitable for light load and low speed conditions, such as daily powder conveying and other scenes.

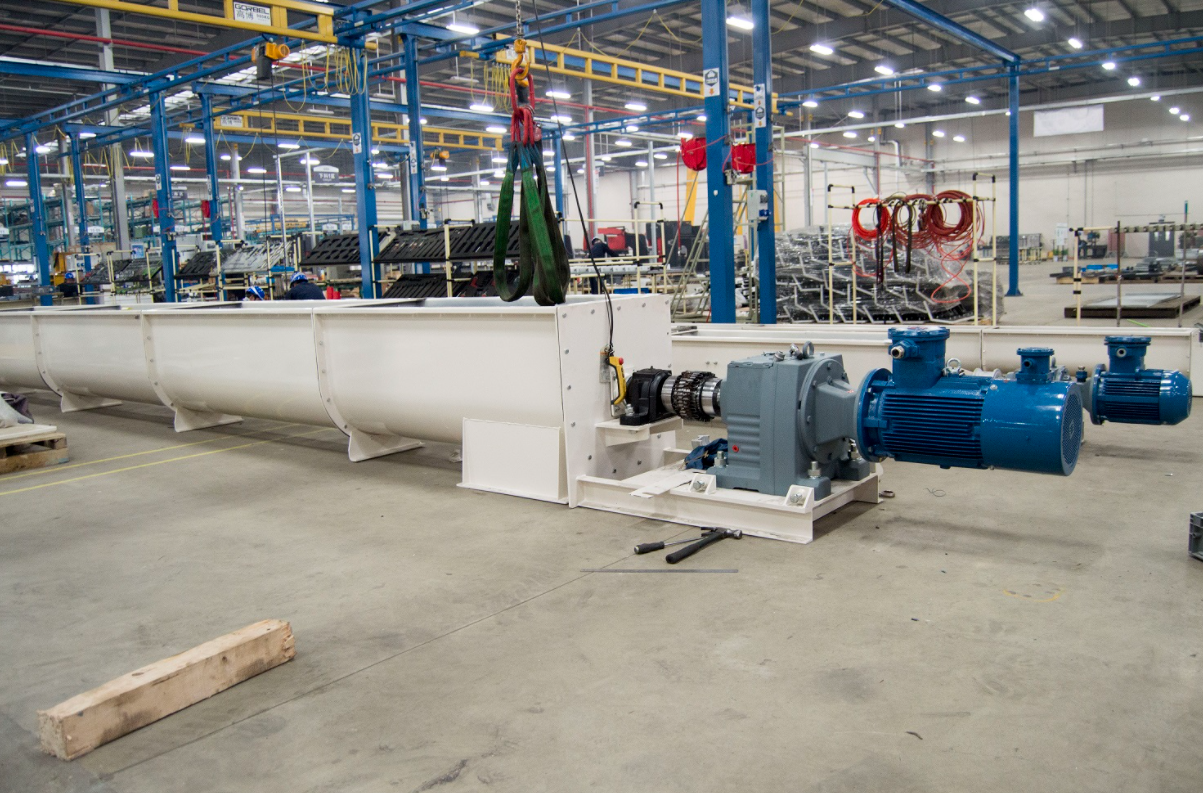

Hard tooth surface gear reducer: strong load capacity and high transmission efficiency, specially designed for heavy load and high-speed conveying, can meet the high-intensity operation requirements of mine tailings, construction slag and other high-intensity operations.
Rubber lining: low cost but general wear resistance, suitable for conveying dry materials such as grains and coal ash.
Polyethylene lining: excellent self-lubrication, friction coefficient as low as 0.1, can effectively reduce the adhesion of sticky materials and improve the smoothness of conveying.
Cast stone lining: excellent wear resistance, Mohs hardness of 7, is an ideal choice for high wear scenarios (such as ore, sand and gravel conveying), can greatly extend the service life of the equipment.
We not only provide high-quality shaftless screw conveyors, but also provide comprehensive and considerate services. The professional technical team will tailor the most suitable conveying solution for you according to your material characteristics, conveying requirements and on-site conditions. From equipment installation and commissioning, operation training, to later maintenance and parts replacement, we will follow up throughout the process to ensure that the equipment is always in the best operating state. At the same time, we have established a complete after-sales service network to respond to your needs at any time, so that you have no worries.
Choosing our shaftless screw conveyor is to choose a fast, reliable and energy-saving material conveying solution. We look forward to working with you to jointly improve production efficiency and create greater value. If you have any needs or questions, please feel free to contact us, we will serve you wholeheartedly!
