Shaftless screw conveyor is a continuous conveying device designed without a central shaft, optimized for handling viscous, easily entangled or fiber-containing materials. Compared with traditional shafted screw conveyors, its anti-clogging, corrosion-resistant and low-maintenance characteristics make it an ideal choice for industries such as sewage treatment, chemical industry, and food processing. As a source manufacturer, we provide different types of shaftless screw conveyors, and can also be customized according to customer needs.

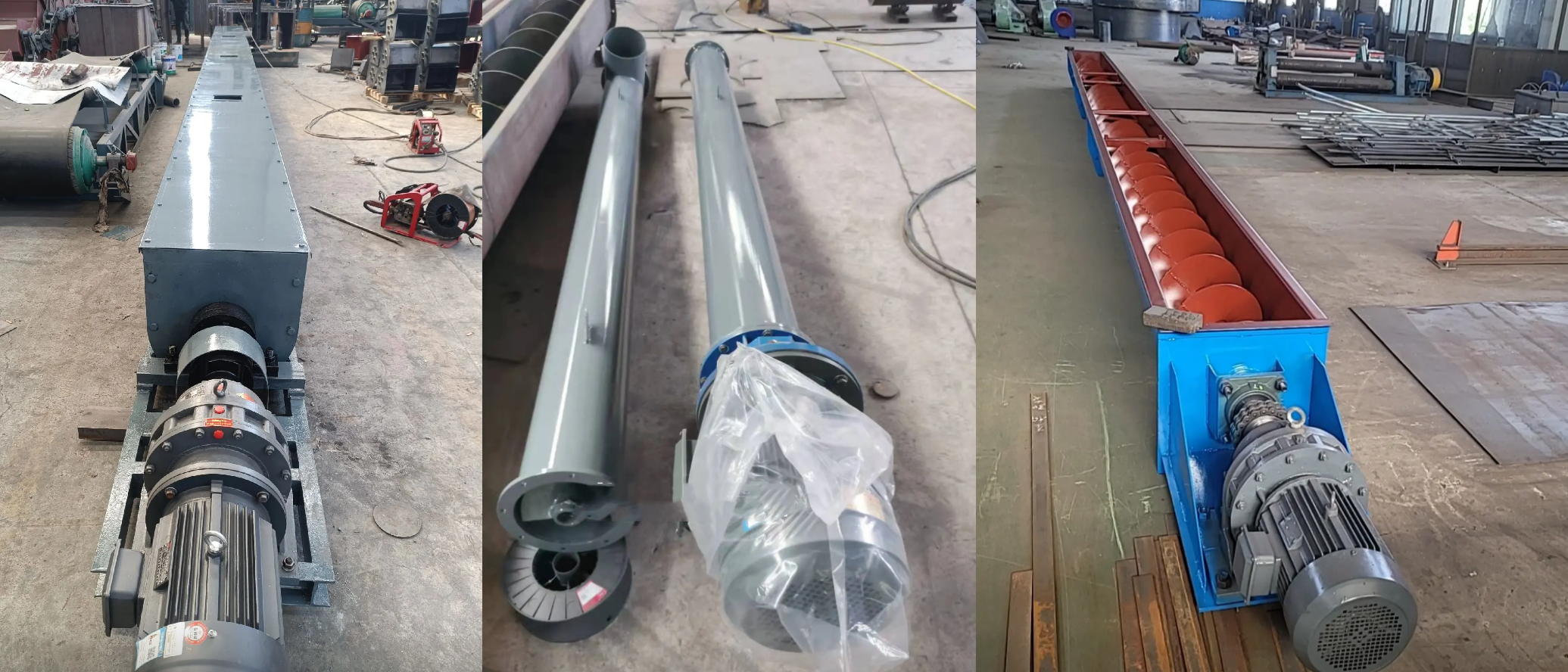

We sell a variety of shaftless screw conveyors. U-shaped trough type is open; tubular enclosed type is fully enclosed; heavy-duty wear-resistant type.

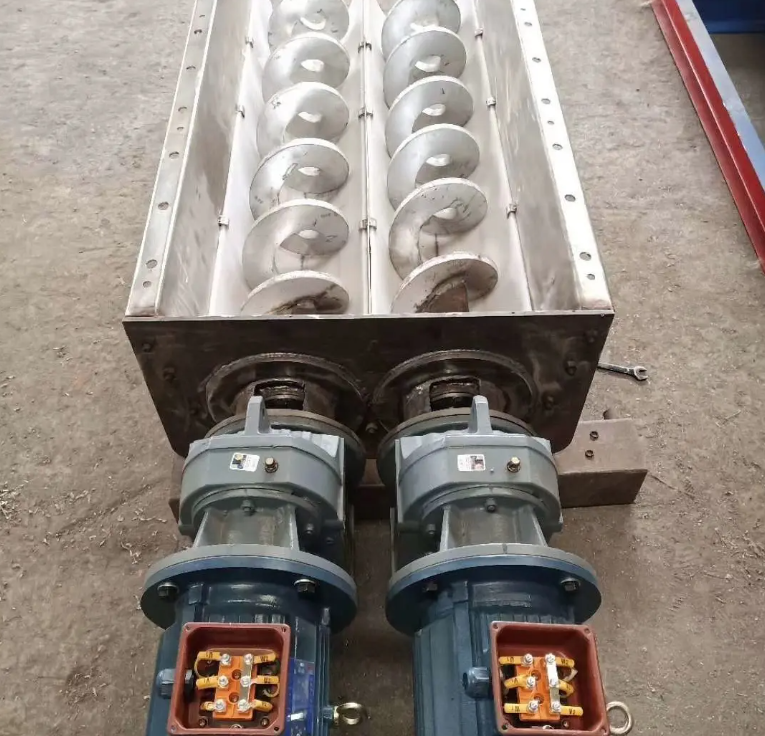

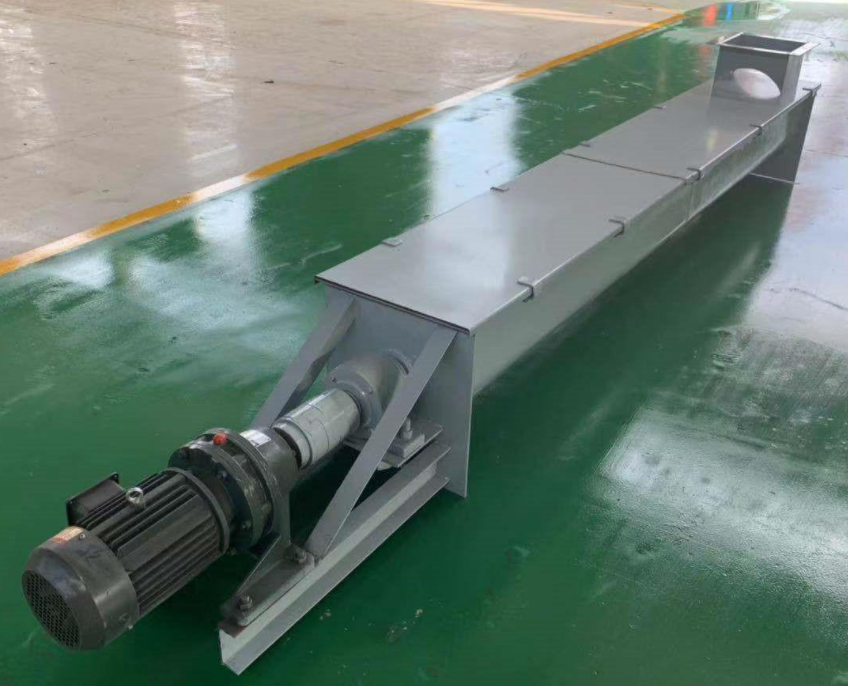

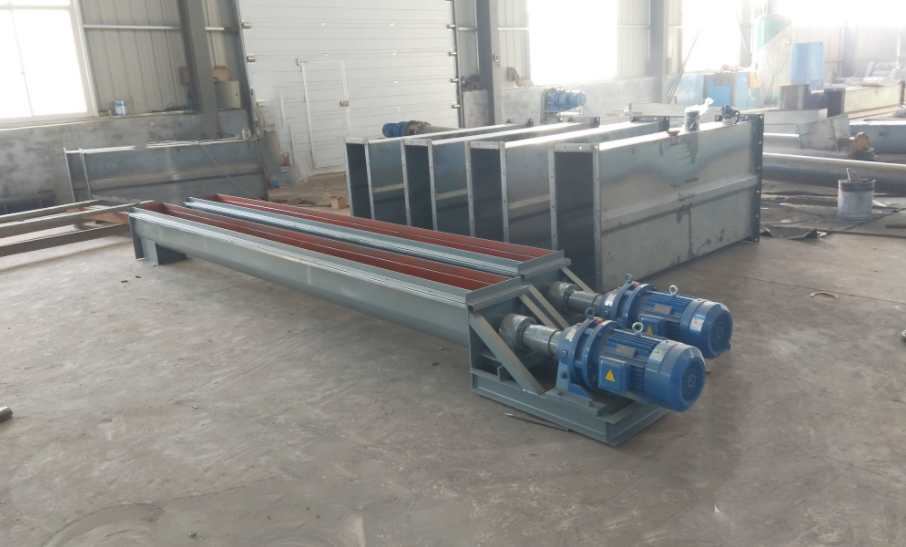

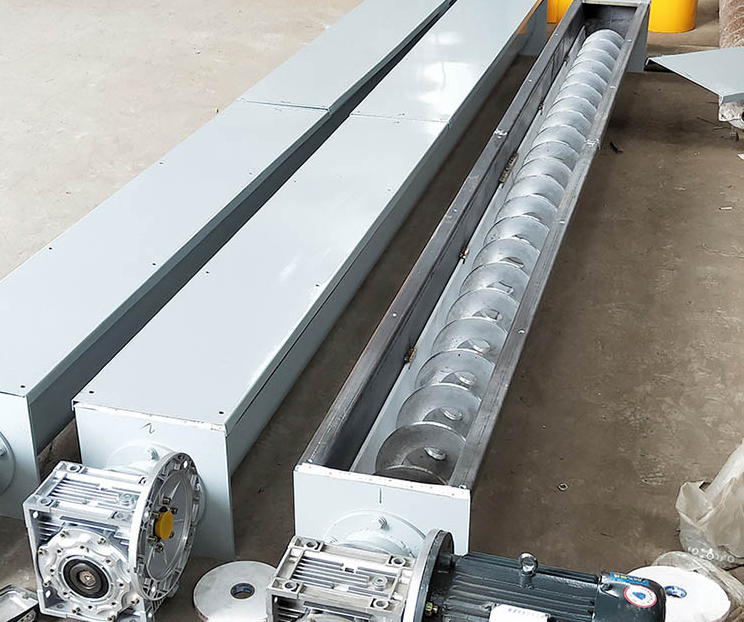

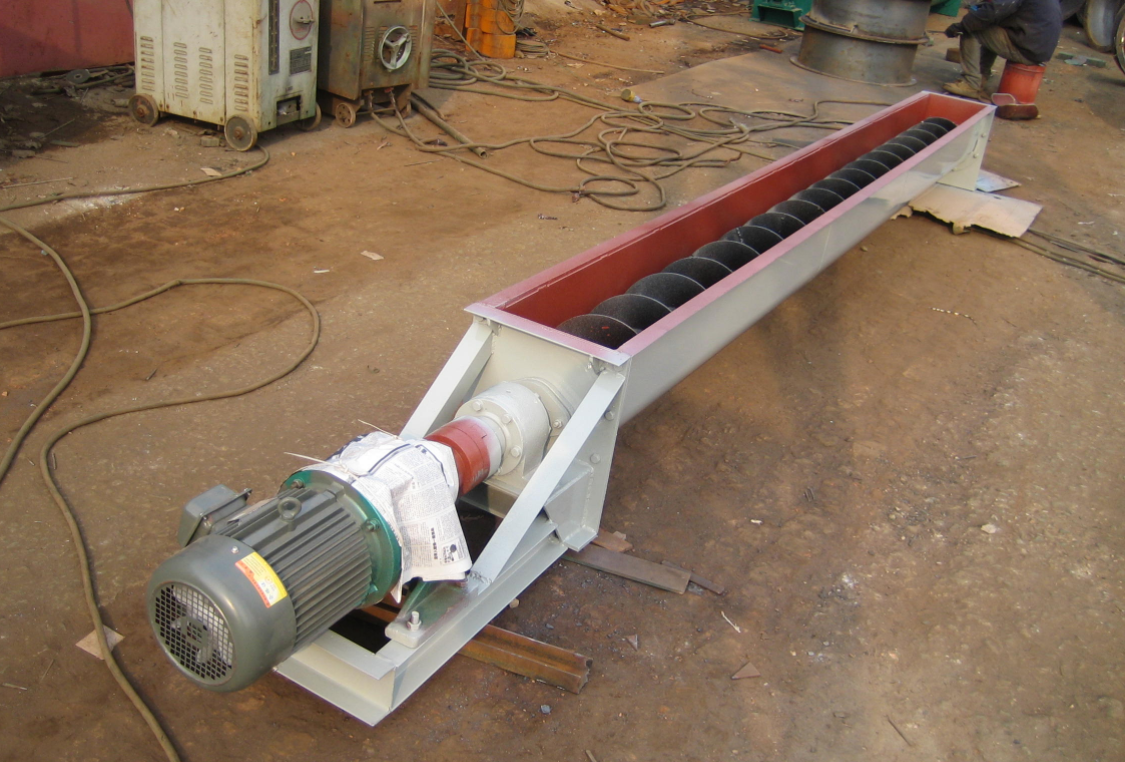

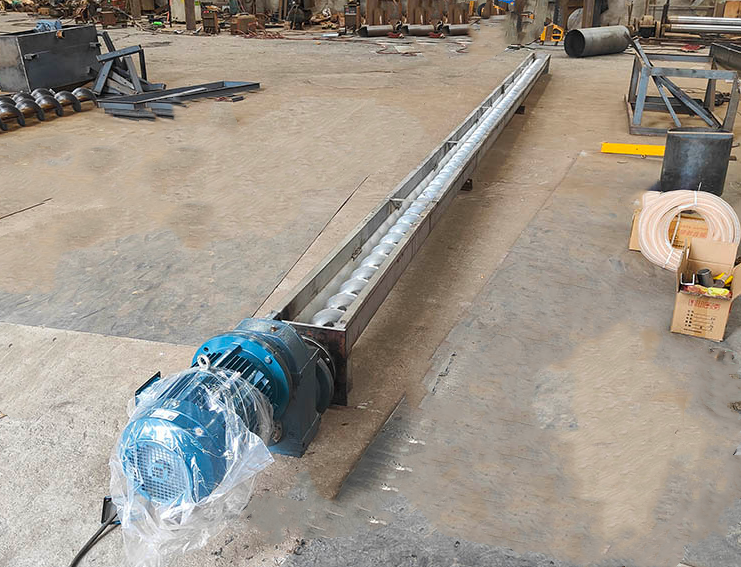

U-shaped trough shaftless screw conveyor: adopts an open U-shaped trough structure, the top can be flexibly covered and sealed, the bottom arc design is matched with a removable wear-resistant liner, and the maintenance efficiency is increased by 40%. It is typically used for dewatered sludge transportation in sewage treatment plants. The open trough body is convenient for observing the changes in sludge moisture content.

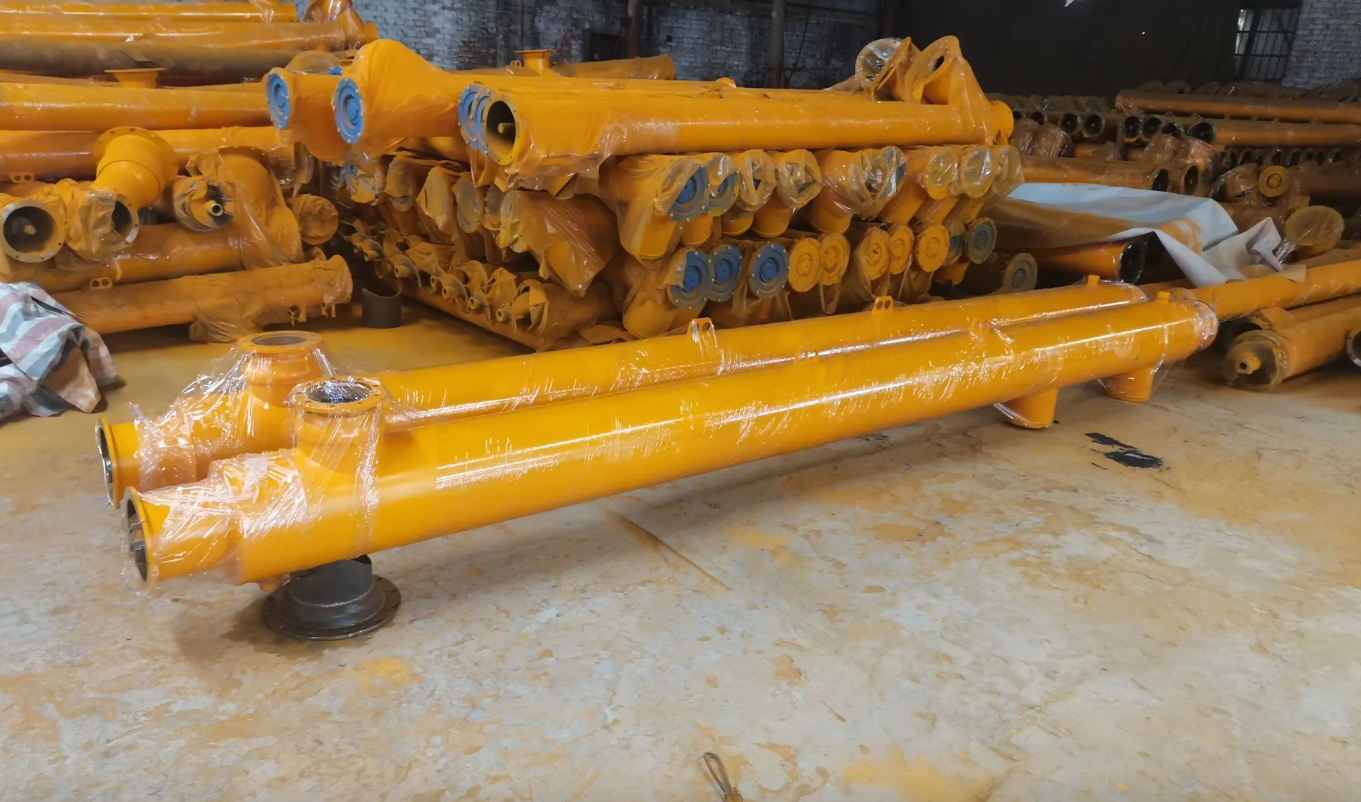

Tubular enclosed shaftless screw conveyor: fully enclosed round tube structure with flange seal, dust leakage ≤0.1mg/m³, meeting the environmental protection emission requirements of the chemical industry and food GMP hygiene standards.
Heavy-duty wear-resistant shaftless screw conveyor: The spiral blades are made of 20mm thickened wear-resistant steel plates, and the bottom of the trough is inlaid with tungsten-cobalt alloy linings. The wear life is 8 times that of ordinary carbon steel, and it can easily cope with highly abrasive materials such as mine tailings and construction slag.
Our shaftless screw conveyor has significant advantages: the shaftless design is anti-winding and suitable for complex materials such as sludge; the sealing structure is environmentally friendly and prevents leakage and dust.
Anti-winding design: no central shaft structure, completely solving the problem of material blockage.
Corrosion and wear resistance: 304/316 stainless steel or carbon steel + wear-resistant lining, adapting to harsh working conditions.
Enclosed and environmentally friendly: fully enclosed structure to prevent dust leakage and meet environmental protection standards.
High efficiency and low consumption: The conveying volume is 5-100m³/h, and the energy consumption is 20% lower than that of traditional equipment.
Flexible customization: Supports non-standard sizes (diameter 200-800mm), explosion-proof, food grade and other requirements.
The shaftless screw conveyor adopts high-quality materials, and the conveying trough body adopts carbon steel, stainless steel or engineering plastics according to the material characteristics.
Spiral blades: According to the material characteristics and conveying requirements, a variety of material options are provided. High-strength wear-resistant steel is suitable for conveying high-wear materials such as ore, sand and gravel; 304/316L stainless steel is used in industries with extremely high requirements for hygiene and corrosion resistance such as food, medicine, and chemical industry. For extreme wear conditions, the blade surface can also be welded with a wear-resistant layer or sprayed with tungsten carbide, which increases the service life by 3-5 times.
Conveying trough body: The trough body material is also rich and diverse. Carbon steel tank is economical and practical, suitable for general industrial environment; 316L stainless steel or fiberglass tank with polytetrafluoroethylene or rubber lining can effectively resist the erosion of corrosive materials such as chemical raw materials, sewage sludge, etc., and the acid and alkali corrosion resistance is increased by 90%; for high-temperature materials, heat-resistant steel tank with high-aluminum ceramic or cast stone lining can withstand high temperatures below 600℃.
| Model | WLS150 | WLS200 | WLS250 | WLS300 | WLS400 | WLS500 |
| Spiral diameter(mm) | 150 | 184 | 237 | 284 | 365 | 470 |
| Outer diameter(mm) | 180 | 219 | 273 | 351 | 402 | 500 |
| Incline degree(a) | 0 °-30 ° | 0 °-30 ° | 0 °-30 ° | 0 °-30 ° | 0 °-30 ° | 0 °-30 ° |
| Max Length(m) | 12 | 13 | 16 | 18 | 22 | 25 |
| Capacity(t/h) | 2.4 | 7 | 9 | 13 | 18 | 28 |
| Motor | Model | L ≤ 7 | Y90L-4 | Y100L1-4 | Y100L2-4 | Y132S-4 | Y160M-4 | Y160M-4 |
| Power kW | L ≤ 7 | 1.5 | 2.2 | 3 | 5.5 | 11 | 11 | |
| Model | L>7 | Y100L1-4 | Y100L2-4 | Y112M-4 | Y132M-4 | Y160L-4 | Y160L-4 | |
| Power kW | L>7 | 2.2 | 3 | 4 | 7.5 | 15 | 15Notes : The parameter above is just for reference, Model please inquiry us directly. We accept customization. |
We provide customized services for shaftless screw conveyors. Carbon steel, stainless steel and other materials can be selected according to needs, and functions such as variable frequency speed regulation and CIP cleaning can be expanded to support horizontal/inclined installation.
Material selection: Diversified material selection can be provided according to material characteristics and use environment, carbon steel with wear-resistant coating, food-grade 304 stainless steel, 316L stainless steel, and we provide you with different materials for different scenarios.
Function expansion and customization: The variable frequency speed regulation system relies on PLC control to achieve 0-100rpm stepless speed change, which can intelligently adapt to material characteristics, prevent material blockage and reduce energy consumption by 25%; the CIP online cleaning function uses high-pressure nozzles and rotating nozzles to efficiently complete the cleaning of the entire equipment within 30 minutes, and the cleaning water recovery rate reaches 85%.
Flexible customization of installation method: supports horizontal (0°), inclined (≤30°) and mixed layout transportation, and the maximum length of a single machine can reach 60 meters. For special sites such as narrow and long passages, a U-shaped trough segmented splicing structure can be designed for easy handling and installation; the mobile model is equipped with universal wheels and hydraulic lifting brackets, which can realize material switching between different production lines in a short time.
The price range of shaftless screw conveyors is $2,280-$2,200. Its price is affected by many factors, such as conveying capacity, distance, material characteristics, and equipment material. If ordinary carbon steel is used for general material transportation, the price is usually at the lower end of the range; if stainless steel is used for food, medicine or corrosive material scenarios, the price will be higher. Please note that models with high-end customized functions such as explosion-proof and intelligent control need to be quoted separately according to specific customization requirements.
We provide a full range of 304/316 stainless steel and carbon steel models, support explosion-proof/food grade customization, and have an accuracy of ±0.5mm. Choosing us means choosing a professional, high-speed, worry-free conveying solution!
Professional experience, trustworthy: We have more than ten years of industry experience and have provided conveying solutions for more than 1,000 companies, including sewage treatment, food processing, chemical industry and other industries. The equipment runs stably and has won wide acclaim.
High-quality manufacturing, strict quality control: Laser cutting + CNC rolling process is used to ensure the accuracy of spiral blades (±0.5mm); core components (motor, reducer) are selected from international brands such as SEW and Siemens, which have a longer life.
Flexible customization, precise matching of needs: supports 304/316 stainless steel, carbon steel, engineering plastics and other materials; can customize special functions such as explosion-proof, food grade, variable frequency speed regulation; provide free 3D solution design to ensure the perfect fit between the equipment and the production line.
Choosing our shaftless screw conveyor means choosing a high-speed, reliable and energy-saving material conveying solution. We look forward to working with you to jointly improve production efficiency and create greater value. If you have any needs or questions, please feel free to contact us, we will serve you wholeheartedly!
