Shrimp Shell Powder Screw Conveyor is a conveyor system for transporting and lifting shrimp shell powder, shrimp shell scraps, and dried and crushed shrimp shells. It addresses industry pain points in seafood processing, such as difficult handling, high loss due to spillage, and low efficiency of manual handling of shrimp shell materials. Custom-designed for the characteristics of shrimp shell powder—lightweight, easily adhering, and containing small amounts of moisture and fibrous impurities—it enables continuous material transport throughout the entire process from raw material collection and crushing to subsequent storage and feeding. It is suitable for horizontal conveying as well as inclined and vertical lifting, adapting to different workshop layouts. The horizontal length can reach 30 meters, and non-standard customization is supported, allowing for tailored production to specific conveying needs.
The Shrimp Shell Powder Screw Conveyor is specifically optimized for the characteristics of shrimp shell powder. Its stainless steel construction is suitable for conveying shrimp shell powder containing small amounts of moisture and fibrous impurities, preventing material from sticking to the conveyor walls, clogging, or accumulating. It supports continuous 24-hour operation, fitting the large-scale production rhythm of the seafood processing industry. The machine's sealing design minimizes dust dispersion, maintaining a clean workshop environment. The equipment is easy to operate, with simple daily debugging and basic maintenance procedures, requiring no dedicated personnel on-site. Specifications can be flexibly customized according to the actual conveying distance, lifting height, and material processing capacity of the workshop, adapting to the personalized needs of seafood processing enterprises of different sizes.

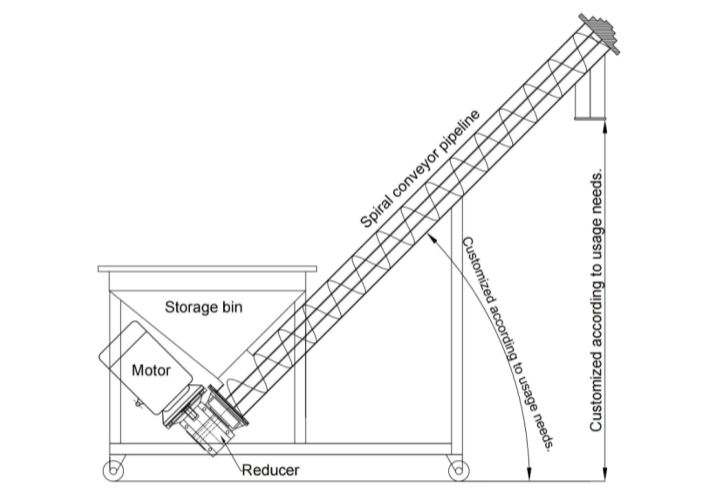

The Shrimp Shell Powder Screw Conveyor has a streamlined and concise overall structure. Its core consists of five main parts: the drive assembly, the screw shaft, the conveyor housing, the inlet and outlet ports, and the support and fixing components. There are no unnecessary or complex components, making disassembly and maintenance convenient. The drive unit, serving as the power source for the entire machine, is equipped with a suitable motor and reduction gear, ensuring smooth power output. The screw shaft features custom-designed helical blades; the blade spacing and curvature are tailored to the flowability of shrimp shell powder, preventing material crushing and damage. The conveyor casing uses a closed pipeline with a smooth, flat inner wall, reducing material resistance. The inlet and outlet positions can be flexibly adjusted according to on-site installation requirements, facilitating connection to upstream and downstream equipment. The supporting and fixing components are highly stable and adaptable to various installation methods, including ground mounting and bracket mounting.
The Shrimp Shell Powder Screw Conveyor utilizes mechanical rotational thrust to transport materials. Its core mechanism involves a drive assembly that rotates the main screw shaft at a constant speed upon power activation, while the screw blades fixed to the shaft move synchronously in a circular motion. After the shrimp shell powder falls into the conveyor housing from the inlet, it is affected by its own gravity and the friction of the inner wall of the housing. Instead of rotating with the screw blades, it is propelled smoothly along the conveying channel towards the outlet by the axial thrust generated by the continuous pushing of the blades, ultimately completing the horizontal conveying or inclined lifting of the material.
| Specifications | Spiral diameter(mm) | Pitch (mm) | Speed(r/min) | Delivery capacity(m³/h) | Speed(r/min) | Delivery capacity(m³/h) | Speed(r/min) | Delivery capacity(m³/h) | Speed(r/min) | Delivery capacity(m³/h) | |
| small | 100 | 100 | 100 | 140 | 2.2 | 112 | 1.7 | 90 | 1.4 | 71 | 1.1 |
| 125 | 125 | 125 | 125 | 3.8 | 100 | 3.0 | 80 | 2.4 | 63 | 1.9 | |
| 160 | 160 | 160 | 112 | 7.1 | 90 | 5.7 | 71 | 4.5 | 56 | 3.6 | |
| 200 | 200 | 200 | 100 | 12.4 | 80 | 9.9 | 63 | 7.8 | 50 | 6.2 | |
| medium | 250 | 250 | 250 | 90 | 21.8 | 71 | 17.2 | 56 | 13.6 | 45 | 10.9 |
| 315 | 315 | 315 | 80 | 38.8 | 63 | 30.5 | 50 | 24.2 | 40 | 13.4 | |
| 400 | 400 | 355 | 71 | 62.5 | 56 | 49.3 | 45 | 38.6 | 36 | 31.7 | |
| large | 500 | 500 | 400 | 63 | 97.7 | 50 | 77.6 | 40 | 62.0 | 32 | 49.6 |
| 630 | 630 | 450 | 50 | 138.5 | 40 | 110.8 | 32 | 88.6 | 25 | 69.3 | |
| 800 | 800 | 500 | 40 | 198.5 | 32 | 158.8 | 25 | 124.1 | 20 | 99.3 | |

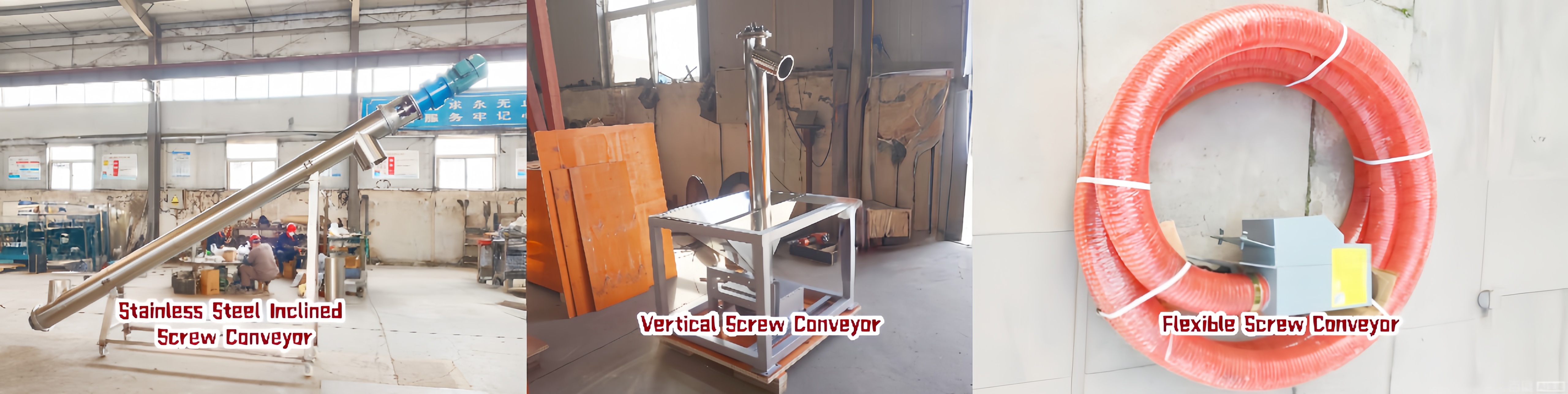

Our factory offers different types of Shrimp Shell Powder Screw Conveyors based on customers' production needs and usage scenarios. Customers can choose according to their own needs. All models support non-standard customization and can adapt to conveying in different scenarios.

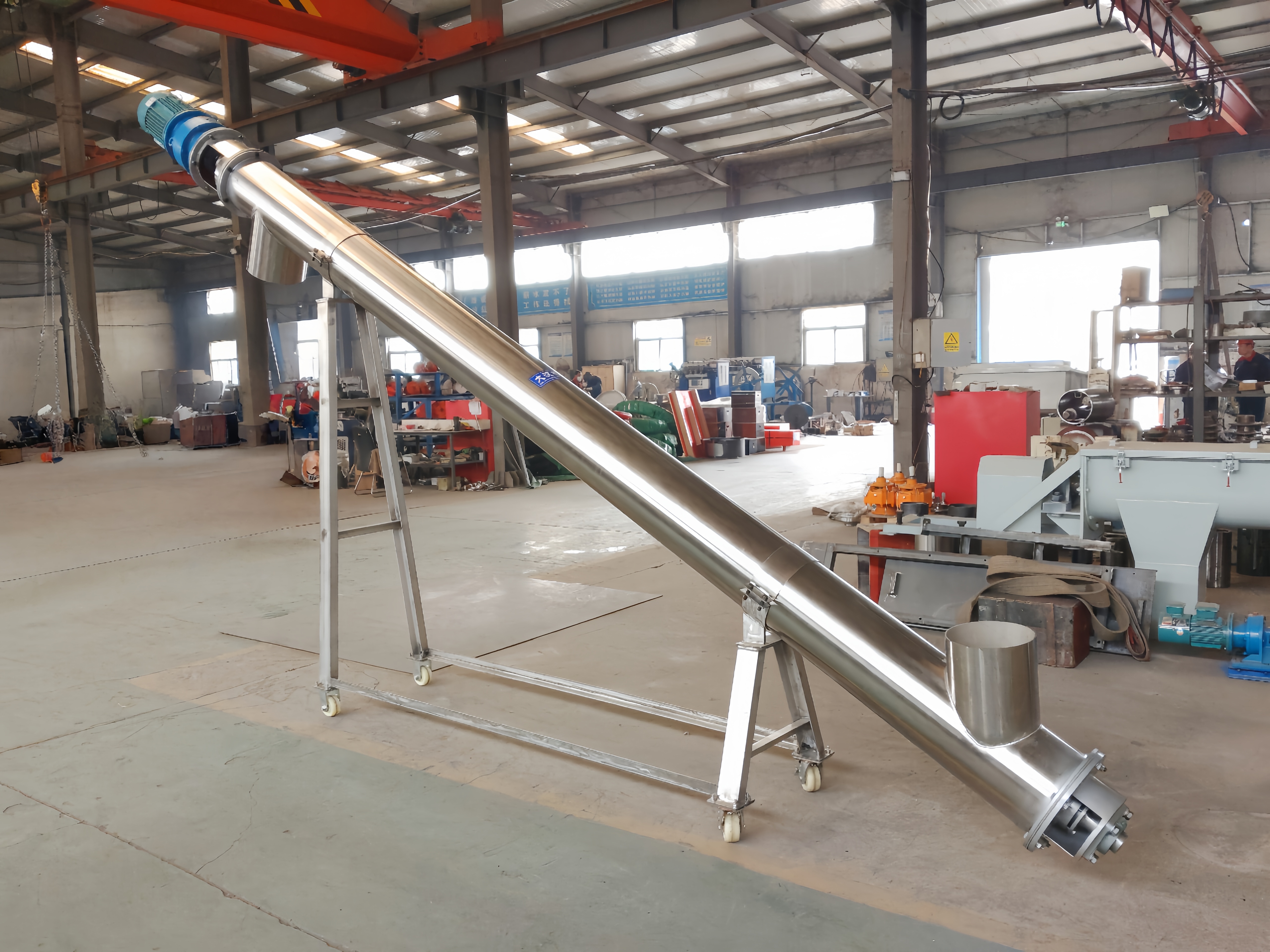

Stainless Steel Inclined Screw Conveyor: A best-selling model in shrimp shell powder processing applications. All parts in contact with the material are made of food-grade stainless steel, resistant to slight corrosion from shrimp shell powder residue. Daily cleaning and wiping are convenient, meeting workshop hygiene management standards. It can achieve inclined lifting and conveying within a range of 0-45°, perfectly solving the need for transferring shrimp shell powder from low-level processing areas to high-level storage and feeding areas.
Vertical Screw Conveyor: Primarily designed for small-space, high-lift conveying needs, specifically designed for workshops with limited floor space requiring vertical upward transfer of shrimp shell powder. The entire machine has a vertical structure, occupying minimal lateral space, and can be placed directly in workshop corners or between equipment. The lifting height can be customized according to actual needs, directly conveying shrimp shell powder raw materials from the bottom to the interior of upper-level silos, reactors, and other equipment.
Flexible Screw Conveyor: A highly flexible and portable conveying device, available in lengths up to 30 meters. Its main advantages are its flexibility and mobility, breaking the layout limitations of traditional fixed conveyors. It is suitable for shrimp shell powder processing workshops with variable equipment layouts and non-fixed material transfer points.
The Shrimp Shell Powder Screw Conveyor is widely used in various scenarios across the entire aquatic product processing industry chain. Its core applications include the collection and transfer of shrimp shell waste in fresh shrimp processing workshops, the conveying of dried and crushed shrimp shells, the feeding and transfer of raw materials in shrimp shell powder feed production workshops, the directional material conveying in chitin extraction production lines, the centralized transfer in aquatic waste resource utilization plants, and the distribution of shrimp shell powder raw materials to pet food processing plants. Whether it's a small family-run aquatic product processing workshop or a large-scale shrimp shell deep-processing enterprise, a suitable model can be found. It can also connect to upstream and downstream equipment such as shrimp shell washing equipment, crushers, dryers, silos, and packaging machines to form a complete material conveying production line, achieving fully automated transfer from shrimp shell waste collection to finished shrimp shell powder packaging.

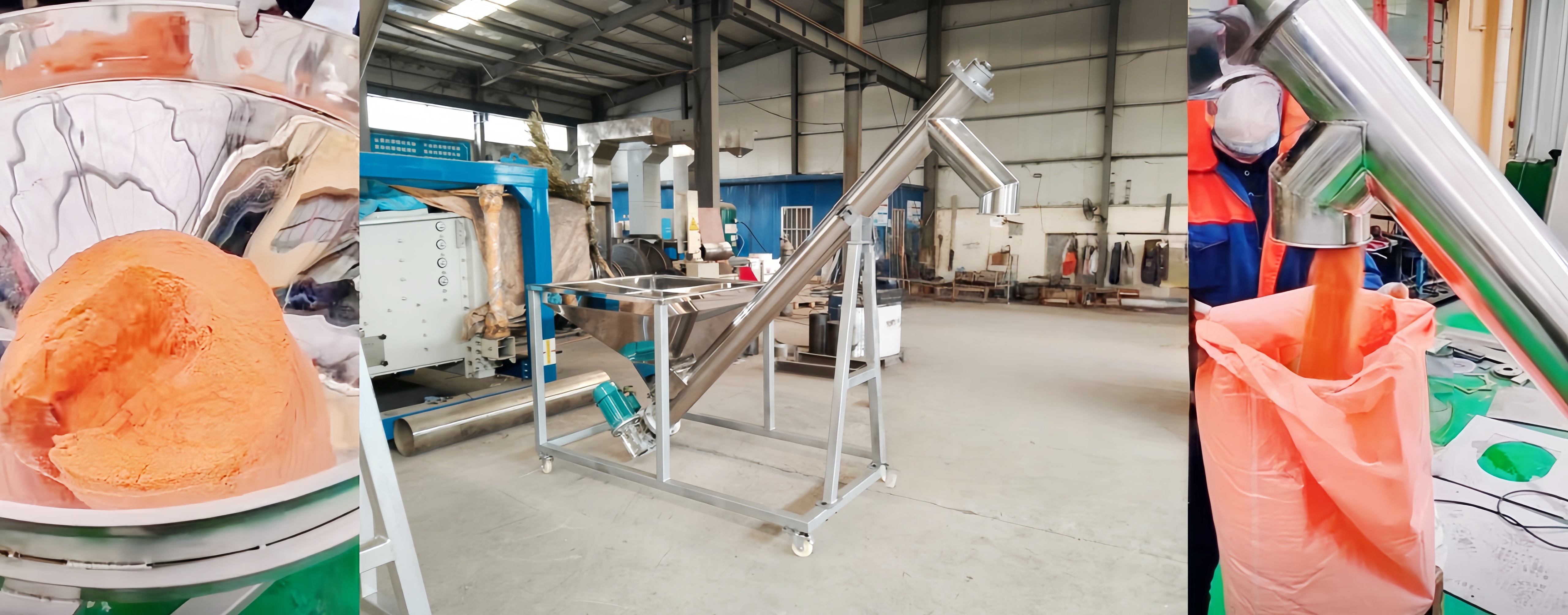

A large aquatic feed company previously relied on manual handling of shrimp shell powder, which was not only costly in terms of labor but also resulted in material spillage and dust pollution in the workshop. After introducing a customized stainless steel inclined screw conveyor, they achieved continuous automated transport of shrimp shell powder from the crushing workshop to the feed mixing silo, requiring no manual intervention throughout the process. The equipment features custom-designed casters at the bottom, allowing for easy repositioning and transport of shrimp shell powder to different workstations. The conveyor is 5 meters long, at a 30-degree angle, with a pipe diameter of 125mm, and can process up to 600 kg per hour. The customer reported that the equipment is highly practical, significantly simplifying the production process and reducing labor intensity. They subsequently repurchased multiple units to adapt to new production lines.
DaHan Machinery's Shrimp Shell Powder Screw Conveyor boasts transparent and reasonable pricing, with starting prices from $800. Detailed quotations are calculated based on the customer's specific needs, including model, specifications, and configuration. Key factors influencing price include equipment type, conveying length, lifting height, material selection, drive power, and customized accessories. We will provide a personalized, precise quote based on the customer's workshop layout, conveying distance, material handling capacity, and hygiene requirements. The quote includes the equipment itself and shipping costs, with no hidden fees. Customers can choose the appropriate model based on their budget and production needs.
With its stable operation, industry-appropriate structural design, and flexible specifications, the Shrimp Shell Powder Screw Conveyor has become a core component in the seafood processing and shrimp shell deep processing industries. From equipment selection and customization to after-sales service, we offer one-stop service, with multiple models to meet the conveying needs of businesses of different scales and scenarios.
