Chicken Feed Tubular Screw Conveyor allows for the transfer of chicken feed from one location to another, supporting both horizontal and vertical conveying.
Length: 1-30 meters / Customization available
Material: Carbon steel, stainless steel, plastic
Diameter: 89-800mm
Capacity: 458m³/h
Angle: 0-90°
Applicable Materials: Chicken feed, feed pellets, powder, granules, nutritional powder, forage

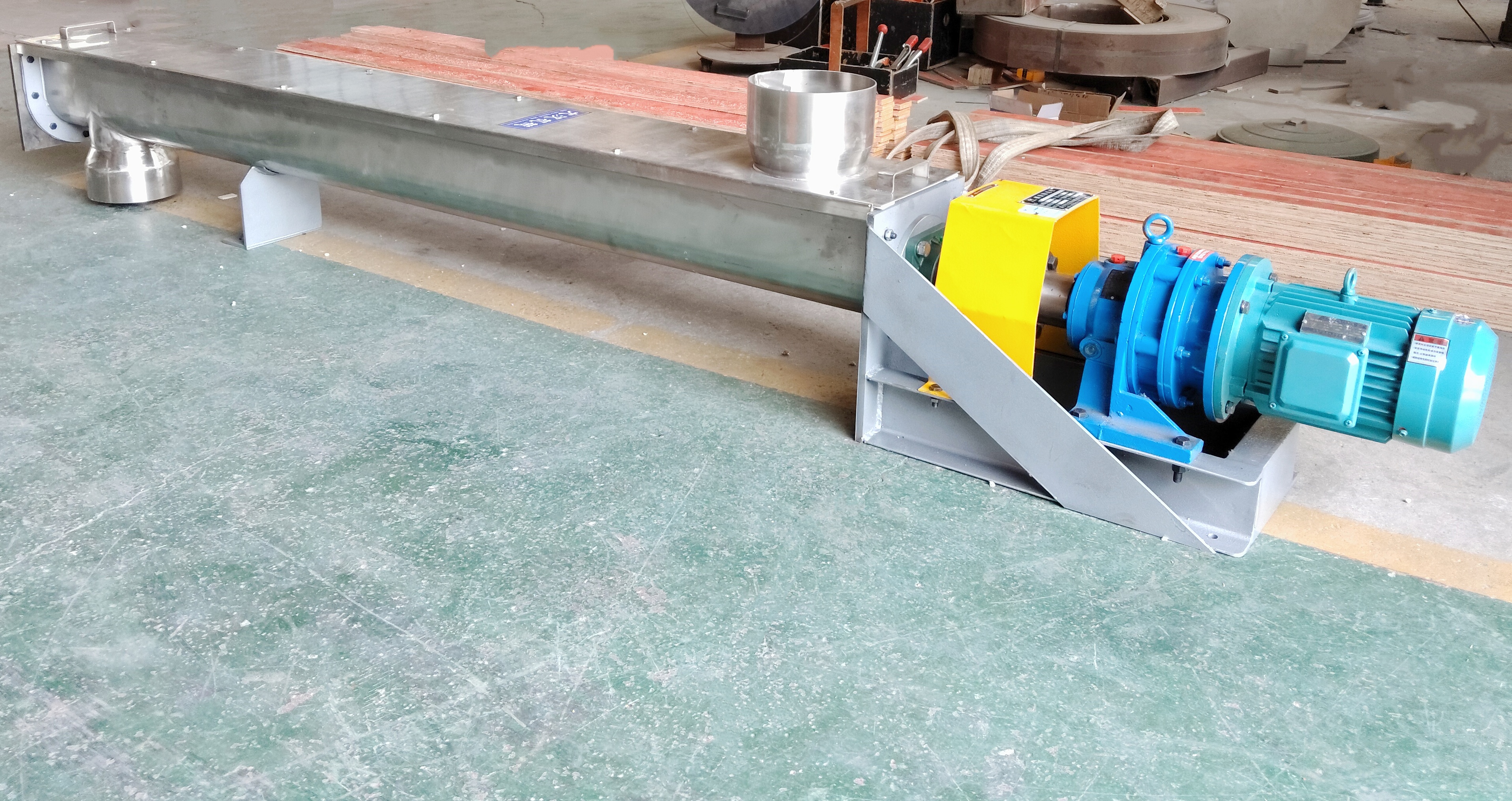

Chicken Feed Tubular Screw Conveyor is a closed-loop chicken feed conveyor with a fully enclosed circular tube design. Compared to traditional U-shaped trough conveyors, the tubular structure offers superior sealing performance, effectively preventing feed dust leakage and improving the working environment on farms. The product supports horizontal, inclined, and vertical conveying, adapting to different angles for chicken feed transport. Customization is available to meet specific site conditions and requirements.
Choosing a reliable tubular screw conveyor is crucial for the storage, transfer, and feeding of chicken feed. To meet the actual needs of different farm scales and production scenarios, we offer various models of chicken feed tubular screw conveyors for sale, ensuring stable operation.

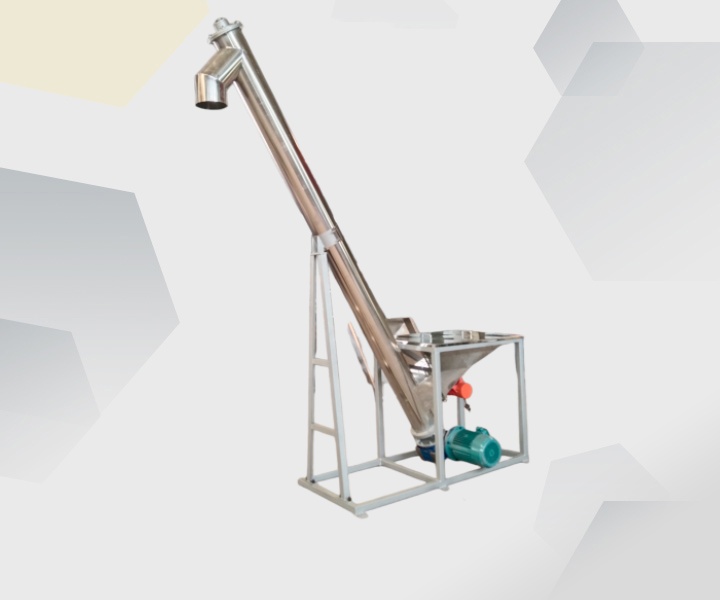

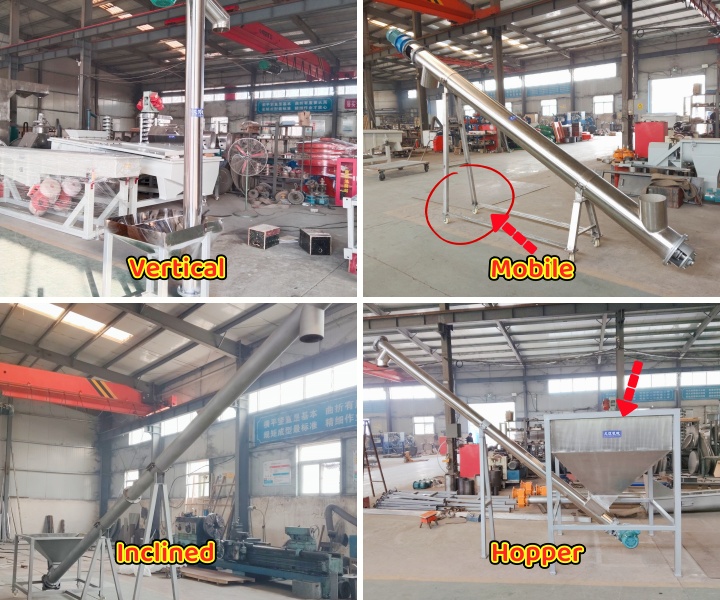

Inclined Type: Inclined tubular screw conveyors are suitable for transporting chicken feed from ground-level storage silos to feeding lines or mixing silos in high-rise chicken houses. This model can operate stably within an inclination range of 0° to 60°, with a maximum conveying distance of over 12 meters.
Vertical Type: Vertical tubular screw conveyors can lift chicken feed directly to a designated height at a near-vertical angle, significantly saving floor space. For farms or feed processing workshops with limited space, the vertical type is the optimal choice.
Mobile Type: Mobile tubular screw conveyors are equipped with casters or swivel casters at the bottom, allowing for flexible movement to different working positions as needed. One unit can meet the feed conveying needs of multiple chicken houses or different production lines, making it particularly suitable for small and medium-sized farms or multi-point feeding scenarios.
Hopper Type: Hopper-type tubular screw conveyors integrate a large-capacity receiving hopper at the inlet end, which can be directly connected to feed trucks, balers, or bulk feed silo outlets. The bottom of the hopper is connected to a screw conveyor pipe; after the material enters the hopper, it is forcibly propelled by the screw blades, achieving integrated operation from receiving, storage to conveying.
The Chicken Feed Tubular Screw Conveyor boasts multiple advantages in design and performance. Its fully enclosed circular tube structure ensures hygiene and safety during feed transport, effectively preventing dust spillage and material spoilage due to moisture, meeting the high quality requirements of modern aquaculture. Secondly, its compact structure and small size significantly reduce the footprint compared to traditional conveying equipment, facilitating flexible layout and installation in existing farms. Furthermore, key components such as bearings are designed externally within the material chamber, simplifying daily inspection and maintenance, and significantly reducing maintenance costs and downtime. The entire machine adopts a modular design, allowing for customization of different lengths and specifications to meet specific needs, making it highly adaptable.
The Chicken Feed Tubular Screw Conveyor mainly consists of core components such as a drive unit, screw shaft, screw blades, circular tube body, feed inlet, and discharge outlet. The drive unit typically uses a geared motor directly connected to the screw shaft, offering advantages such as high torque, low noise, and long lifespan. The screw shaft, as the core transmission component, is welded with continuous or intermittent helical blades. The blade type and pitch are optimized according to the physical properties of chicken feed to ensure efficient conveying of various feed types. Intermediate and end bearings play a crucial supporting role in long-distance conveying, ensuring smooth and reliable operation of the screw shaft.
The Chicken Feed Tubular Screw Conveyor operates based on the pushing action of the helical blades. When the motor starts, the reducer drives the screw shaft to rotate at a set speed, and the helical blades welded to the shaft rotate accordingly. Feed enters the closed circular tube through the inlet, and under the push of the rotating helical blades, the material moves forward along the pipe's axis. Finally, the material exits from the outlet, completing the entire conveying process.
| LS type | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| GX type | 200 | 250 | 300 | 400 | 500 | ||||||
| Spiral diameter (mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| Pitch (mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| Speed (r/min) | 140 | 120 | 90 | 90 | 75 | 75 | 60 | 60 | 45 | 35 | 30 |
| Delivery capacity QΦ=0.33 (m³/h) | 2.2 | 7.6 | 11 | 22 | 36.4 | 66.1 | 93.1 | 160 | 223 | 304 | 458 |
| 功率Pd 1=10m（KW） | 1.1 | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 | 4.1 | 8.6 | 12 | 16 | 24.4 |
| Power Pd 1=30m (KW) | 1.6 | 2.8 | 3.2 | 5.3 | 8.4 | 11 | 15.3 | 25.9 | 36 | 48 | 73.3 |
| Speed (r/min) | 120 | 90 | 75 | 75 | 60 | 60 | 45 | 45 | 35 | 30 | 20 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.9 | 5.7 | 18 | 18 | 29.1 | 52.9 | 69.8 | 125 | 174 | 261 | 305 |
| Power Pd 1=10m (KW) | 1.0 | 1.3 | 2.1 | 2.1 | 2.9 | 4.1 | 4.7 | 6.8 | 9.4 | 14.1 | 16.5 |
| Power Pd 1=30m (KW) | 1.5 | 2.3 | 4.5 | 4.5 | 7 | 8.9 | 11.6 | 20.4 | 28.3 | 42.2 | 49.5 |
| Speed (r/min) | 90 | 75 | 60 | 60 | 45 | 45 | 35 | 35 | 30 | 20 | 16 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.4 | 4.8 | 15 | 15 | 21.8 | 39.6 | 54.3 | 97 | 149 | 174 | 244 |
| Power Pd 1=10m (KW) | 0.9 | 1.2 | 1.9 | 1.9 | 2.5 | 3.4 | 4.3 | 5.4 | 8.1 | 9.5 | 13.3 |
| Power Pd 1=30m (KW) | 1.2 | 2.2 | 3.8 | 3.8 | 5.4 | 6.8 | 9.2 | 16 | 24.4 | 28.6 | 39.9 |
| Speed (r/min) | 75 | 60 | 45 | 45 | 35 | 35 | 30 | 30 | 20 | 16 | 13 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.2 | 3.8 | 11 | 11 | 17 | 31.7 | 46.5 | 73.0 | 99.3 | 139 | 199 |
| Power Pd 1=10m (KW) | 0.75 | 1.1 | 1.6 | 1.6 | 2.1 | 3.1 | 3.7 | 4.6 | 5.7 | 7.7 | 11 |
| Power Pd 1=30m (KW) | 1.1 | 1.8 | 3.4 | 3.4 | 4.4 | 5.6 | 8 | 14 | 16.7 | 23.2 | 33 |
Chicken feed comes in various forms, each with different requirements for conveying equipment. Tubular screw conveyors, with their flexible conveying capacity and sealed structure, can perfectly adapt to various feed types.
Flake Feed: Flake chicken feed is usually made through a flaking process, resulting in a large surface area and a degree of brittleness. Tubular screw conveyors, by optimizing the screw blade pitch and rotation speed, can achieve stable conveying of flake feed, effectively reducing breakage and dust generation during transport.
Pellet Feed: Pellet feed is the most commonly used feed form in chicken farms, characterized by good flowability and resistance to clumping. The standard design of tubular screw conveyors perfectly adapts to the conveying needs of pellet feed, enabling continuous conveying of large quantities from several tons to tens of tons per hour.
Powdered Feed: The conveying of powdered feed places the highest demands on the sealing of the equipment. The fully enclosed structure of the tubular screw conveyor effectively prevents dust from being emitted from the powdered feed, reducing material loss and improving the working environment.
We provide clients with various conveying solutions across multiple dimensions, including material characteristics, equipment configuration, and operational performance, ensuring chicken feed is efficiently delivered to designated locations.

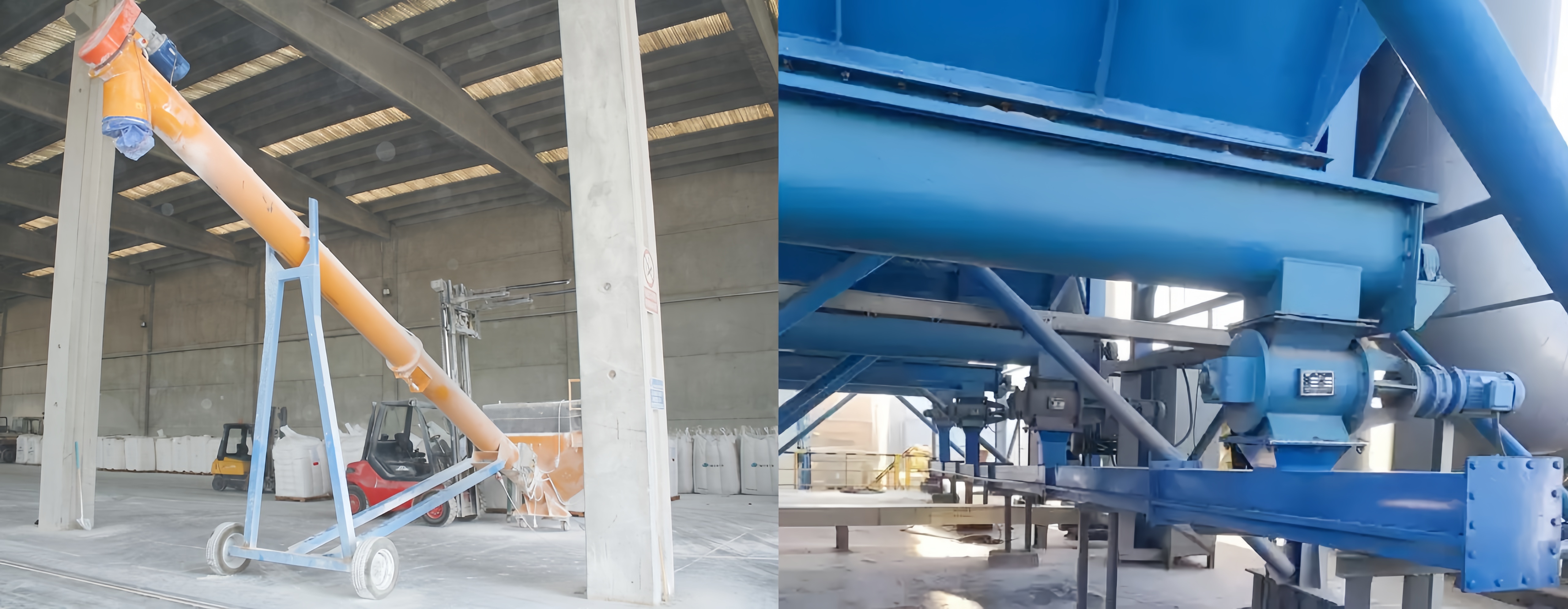

Large-scale layer chicken farm: The farm houses 200,000 layer chickens using stacked cages. The client needed to transport pelleted feed produced in the feed processing workshop to the feed storage towers atop five chicken houses. We provided an inclined tubular screw conveyor system for this purpose. The material is pelleted chicken feed, with each conveyor line 18 meters long, 219mm diameter, and an inclination angle of 30°, achieving a conveying capacity of 10 tons/hour. After the equipment was put into operation, fully automated conveying was achieved from the feed workshop to the feed towers in each chicken house.
Feed processing plant: The plant mainly produces powdered compound chicken feed, which, after packaging, needs to be transported to the finished product warehouse palletizing area. We customized a 15-meter-long, 273mm diameter horizontal tubular screw conveyor for this purpose. This equipment is made of stainless steel and transports powdered chicken feed, with a capacity of 12 tons of finished product per hour.
Dahan Vibration Machinery primarily designs, manufactures, and services various bulk material conveying equipment, including tubular screw conveyors and U-shaped screw conveyors. Our products are widely used in over 60 industries, including feed, grain, chemical, food, and pharmaceutical. We possess full-chain capabilities from R&D and design to manufacturing. With a professional design team, advanced production processes, and a comprehensive global service system, we have provided customized conveying solutions to customers in over 30 countries worldwide, offering full-cycle services from technical consultation and solution design to equipment commissioning and after-sales maintenance.
The Chicken Feed Tubular Screw Conveyor, with its unique advantages of fully enclosed conveying, fast and stable operation, and flexible adaptability, has become an indispensable core piece of equipment in modern large-scale farming and feed processing.
