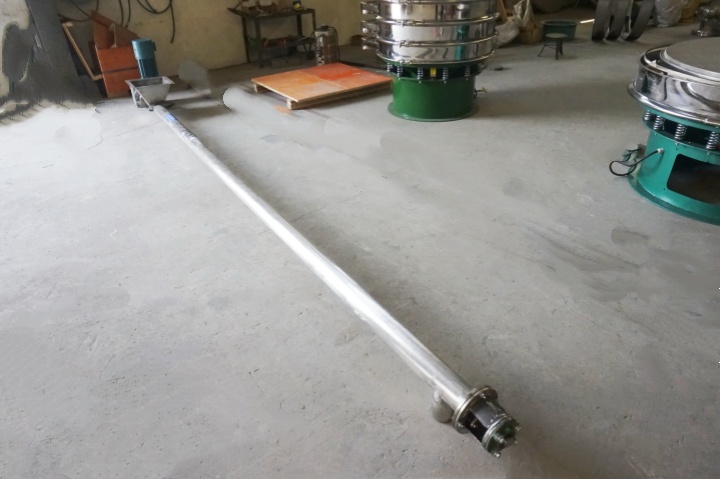

Kaolin Tubular Screw Conveyor Equipment is optimized for the sticky and agglomerated characteristics of kaolin. The entire machine is constructed with seamless steel pipes, with seamless flange connections for a fully enclosed conveying system. Materials include carbon steel, 304 stainless steel, and flexible hoses. Customization is supported, enabling horizontal, inclined, and vertical conveying. Suitable pipe diameters, lengths, inlet/outlet ports can be customized to meet specific needs, easily adapting to different kaolin conveying scenarios.

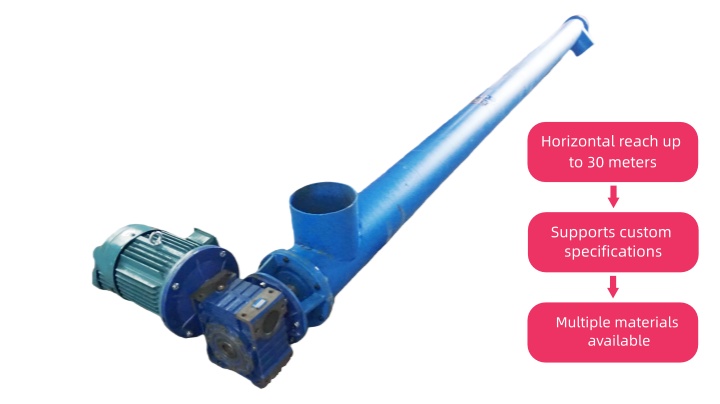

Kaolin Tubular Screw Conveyor Equipment is specifically optimized for the sticky and dust-generating characteristics of kaolin. It boasts core advantages such as anti-sticking and anti-clogging, airtight dustproof design, and wear resistance and durability. Its multi-directional conveying capability is highly adaptable, and its explosion-proof motor perfectly matches the conveying needs of the entire kaolin processing process.

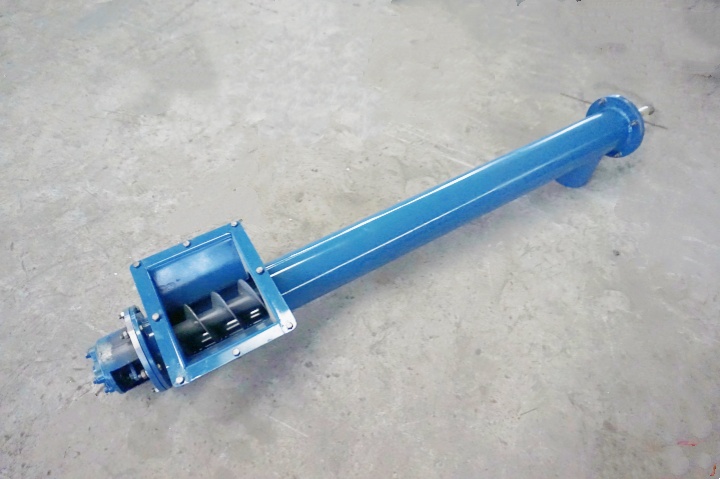

Anti-sticking and anti-clogging: Optimized for the sticky and agglomerated characteristics of kaolin, the blades are polished to prevent sticking. An optional hollow variable pitch design reduces material adhesion and prevents conveyor blockage.
Fully enclosed design: Seamless steel pipe body + flange seamless connection, with a labyrinth seal at the shaft end, ensuring fully enclosed conveying and eliminating dust and leakage of kaolin powder.
Wear-resistant and durable: Different materials are available for the pipe body and blades, offering wear resistance and corrosion resistance, suitable for the continuous conveying of kaolin micro-particles.
Stable conveying: Stable operating speed, adjustable conveying volume, suitable for the uniform transfer of kaolin powder and micro-particles, meeting the supply requirements of industries such as ceramics and coatings.
Customization Supported: Suitable conveyors can be customized to fit the specific on-site conveying scenario and production volume, ensuring seamless integration of upstream and downstream equipment.

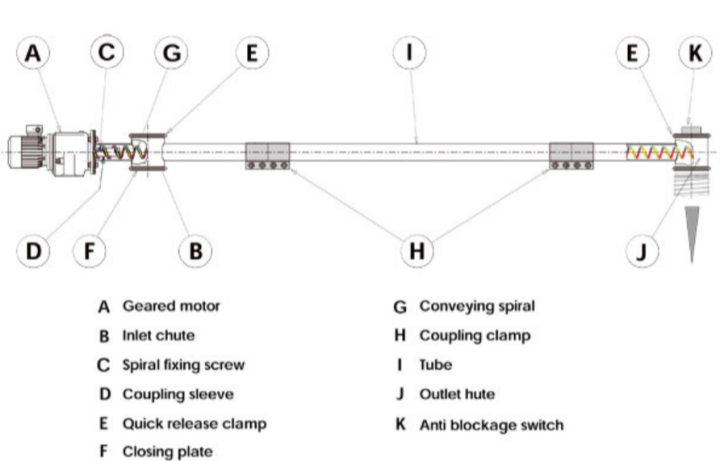

The main body of the Kaolin Tubular Screw Conveyor Equipment is a fully enclosed circular conveying pipe, with a wear-resistant helical shaft running through it. Helical blades optimized for material characteristics are welded onto the shaft. The drive end is powered precisely by a motor and reducer, while an adjustable bearing seat at the rear tensions the helical shaft. The inlet and outlet ports are custom-designed according to process interfaces to ensure seamless connections. The entire machine adopts a modular design, supporting multiple units connected in series horizontally for ultra-long-distance conveying.

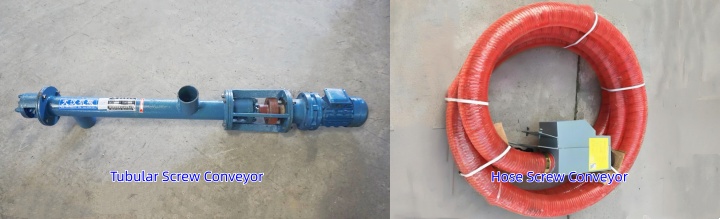

We offer both tubular screw conveyors and flexible hose screw conveyors, tailored to customer production needs and scenarios. We can customize and recommend suitable models and specifications based on customer conveying requirements, easily completing the conveying of kaolin.
Tubular Screw Conveyor: Its fully enclosed tubular structure is ideal for conveying kaolin powder with dust and leakage prevention requirements, making it the preferred choice for kaolin transport. The blades and tube body are optimized for anti-sticking and wear resistance, effectively preventing kaolin from sticking and clogging. It is suitable for fixed process connections in kaolin production workshops in the ceramics and coatings industries.
Flexible Screw Conveyor: More suitable for flexible transfer scenarios involving small batches and multiple workstations of kaolin. The flexible hose combined with a lightweight body allows for easy bending and movement, suitable for temporary material replenishment and small-scale material feeding needs in the workshop.
Kaolin Tubular Screw Conveyor Equipment utilizes a motor-driven screw shaft that rotates at high speed inside a circular tube. The screw blades welded to the shaft generate a powerful axial thrust. After entering through the inlet, kaolin powder, constrained by the blades and the pipe wall, does not revolve with the screw. Instead, it is continuously and steadily pushed forward along the smooth inner wall of the pipe, like a screw-in nut, until it is discharged from the outlet.
| LS type | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| GX type | 200 | 250 | 300 | 400 | 500 | ||||||
| Spiral diameter (mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| Pitch (mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| Speed (r/min) | 140 | 120 | 90 | 90 | 75 | 75 | 60 | 60 | 45 | 35 | 30 |
| Delivery capacity QΦ=0.33 (m³/h) | 2.2 | 7.6 | 11 | 22 | 36.4 | 66.1 | 93.1 | 160 | 223 | 304 | 458 |
| 功率Pd 1=10m（KW） | 1.1 | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 | 4.1 | 8.6 | 12 | 16 | 24.4 |
| Power Pd 1=30m (KW) | 1.6 | 2.8 | 3.2 | 5.3 | 8.4 | 11 | 15.3 | 25.9 | 36 | 48 | 73.3 |
| Speed (r/min) | 120 | 90 | 75 | 75 | 60 | 60 | 45 | 45 | 35 | 30 | 20 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.9 | 5.7 | 18 | 18 | 29.1 | 52.9 | 69.8 | 125 | 174 | 261 | 305 |
| Power Pd 1=10m (KW) | 1.0 | 1.3 | 2.1 | 2.1 | 2.9 | 4.1 | 4.7 | 6.8 | 9.4 | 14.1 | 16.5 |
| Power Pd 1=30m (KW) | 1.5 | 2.3 | 4.5 | 4.5 | 7 | 8.9 | 11.6 | 20.4 | 28.3 | 42.2 | 49.5 |
| Speed (r/min) | 90 | 75 | 60 | 60 | 45 | 45 | 35 | 35 | 30 | 20 | 16 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.4 | 4.8 | 15 | 15 | 21.8 | 39.6 | 54.3 | 97 | 149 | 174 | 244 |
| Power Pd 1=10m (KW) | 0.9 | 1.2 | 1.9 | 1.9 | 2.5 | 3.4 | 4.3 | 5.4 | 8.1 | 9.5 | 13.3 |
| Power Pd 1=30m (KW) | 1.2 | 2.2 | 3.8 | 3.8 | 5.4 | 6.8 | 9.2 | 16 | 24.4 | 28.6 | 39.9 |
| Speed (r/min) | 75 | 60 | 45 | 45 | 35 | 35 | 30 | 30 | 20 | 16 | 13 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.2 | 3.8 | 11 | 11 | 17 | 31.7 | 46.5 | 73.0 | 99.3 | 139 | 199 |
| Power Pd 1=10m (KW) | 0.75 | 1.1 | 1.6 | 1.6 | 2.1 | 3.1 | 3.7 | 4.6 | 5.7 | 7.7 | 11 |
| Power Pd 1=30m (KW) | 1.1 | 1.8 | 3.4 | 3.4 | 4.4 | 5.6 | 8 | 14 | 16.7 | 23.2 | 33 |
A ceramic raw material processing company mainly produces kaolin powder. Its original conveying equipment was prone to material sticking and clogging, resulting in severe dust generation, affecting production efficiency and failing to meet workshop environmental requirements. A customized 304 stainless steel kaolin tubular screw conveyor was installed. The blades were polished to prevent sticking, and the fully enclosed pipe body completely solved the problems of material sticking and dust generation. The equipment supports horizontal and inclined combined conveying, connecting the storage silo and the slurry preparation process. A single machine can convey 18 meters horizontally. After the equipment was put into operation, the kaolin conveying efficiency increased by 40%, workshop dust emissions were significantly reduced, and continuous and stable operation was achieved, earning high praise from the customer.
The price of Kaolin Tubular Screw Conveyor Equipment is not fixed, as it is a highly customized piece of equipment. Its cost primarily depends on material specifications, conveying capacity, process complexity, and configuration level. A specific price needs to be determined based on your actual working conditions, such as conveying volume, length, angle, material characteristics, and optional requirements. As the manufacturer, our standard configuration equipment is priced between approximately $800.00 and $5,320.00. For higher configurations or more complex customized solutions, the price will be adjusted accordingly. We recommend that you provide detailed technical specifications so that we can provide you with the most cost-effective and accurate quote and solution.

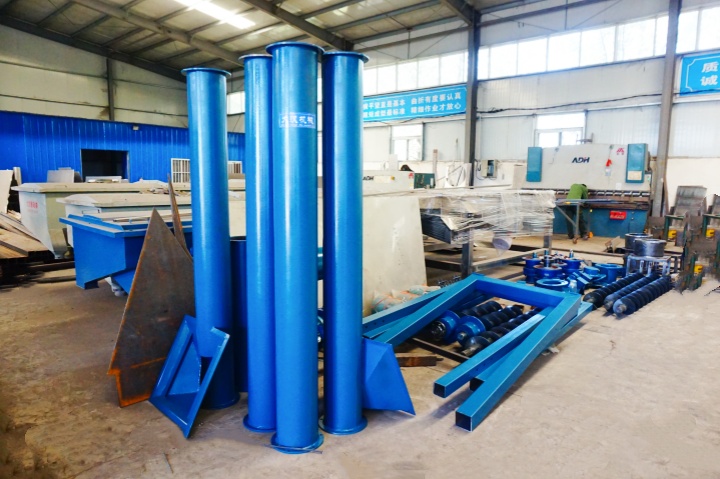

Dahan Machinery boasts a standardized production base and a senior R&D team. Our Kaolin Tubular Screw Conveyor Equipment is available in materials such as wear-resistant carbon steel, 304/316 stainless steel, and Oxford hose. Custom configurations include explosion-proof features and rollers. We maintain strict control over the entire production process, and our equipment undergoes multiple quality inspections. It is suitable for all kaolin conveying scenarios in industries such as ceramics, coatings, and papermaking. As a direct manufacturer, we eliminate middlemen and provide one-stop services including factory testing, solution design, and spare parts supply. We support global export and offer lifetime technical support and spare parts supply.
With its core advantages of anti-sticking, anti-clogging, and dustproof sealing, Kaolin Tubular Screw Conveyor Equipment has become the preferred conveying equipment in the kaolin processing industry. We can customize solutions according to production conditions, providing full support from equipment design to after-sales service. With highly adaptable equipment and comprehensive services, we facilitate high-speed, clean, and stable kaolin conveying operations.
