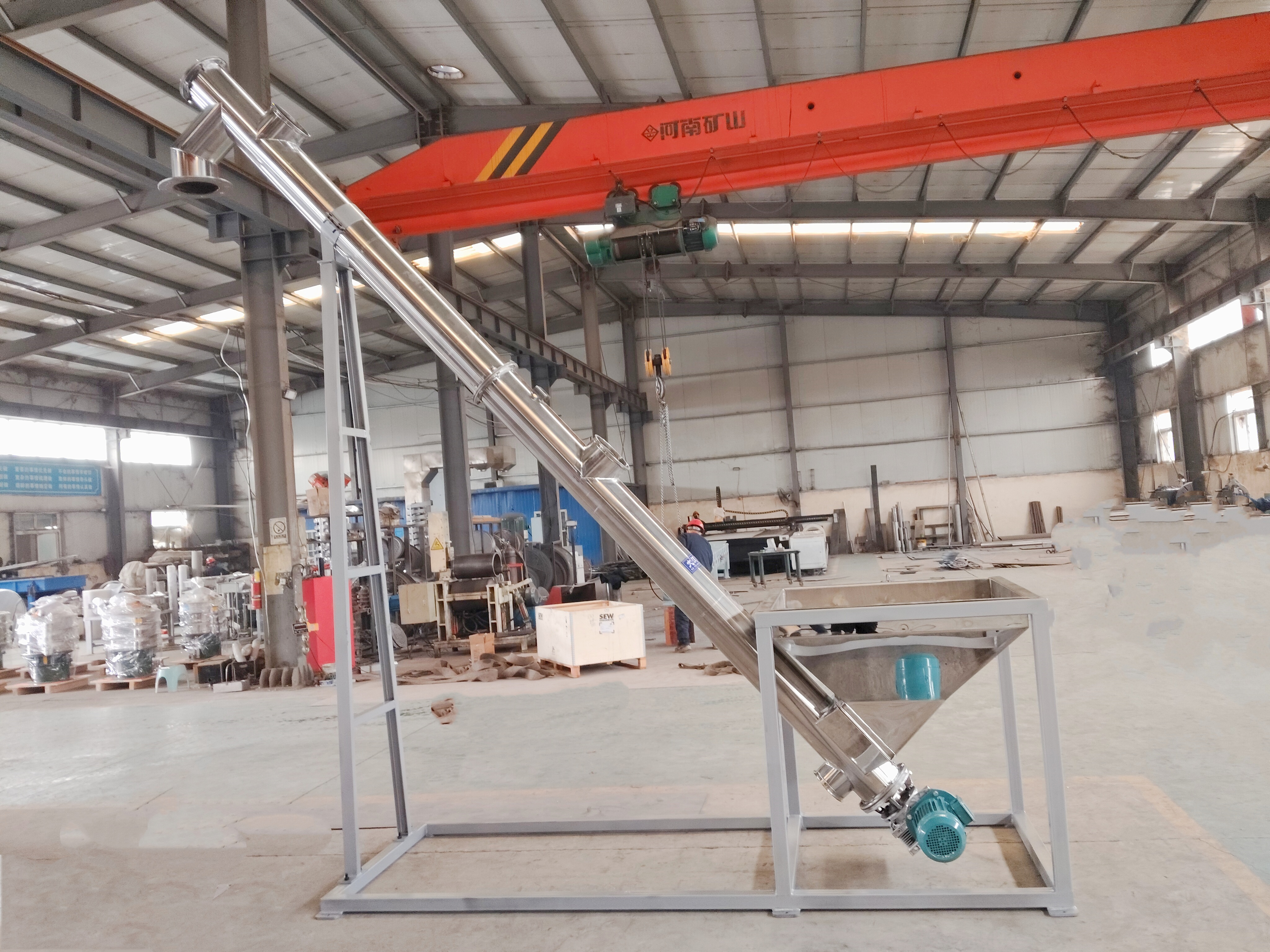

Resin Powder Inclined Screw Conveyor is a screw conveyor suitable for conveying chemical powders. It features an inclined installation layout and utilizes a screw pushing structure to transfer resin powder materials. It can handle material conveying between high and low heights, easily transporting resin powder from a low position to a mixer or mixing tank. It is available in stainless steel, carbon steel, and polypropylene. Customization is supported, allowing for production tailored to integrate with upstream and downstream equipment.

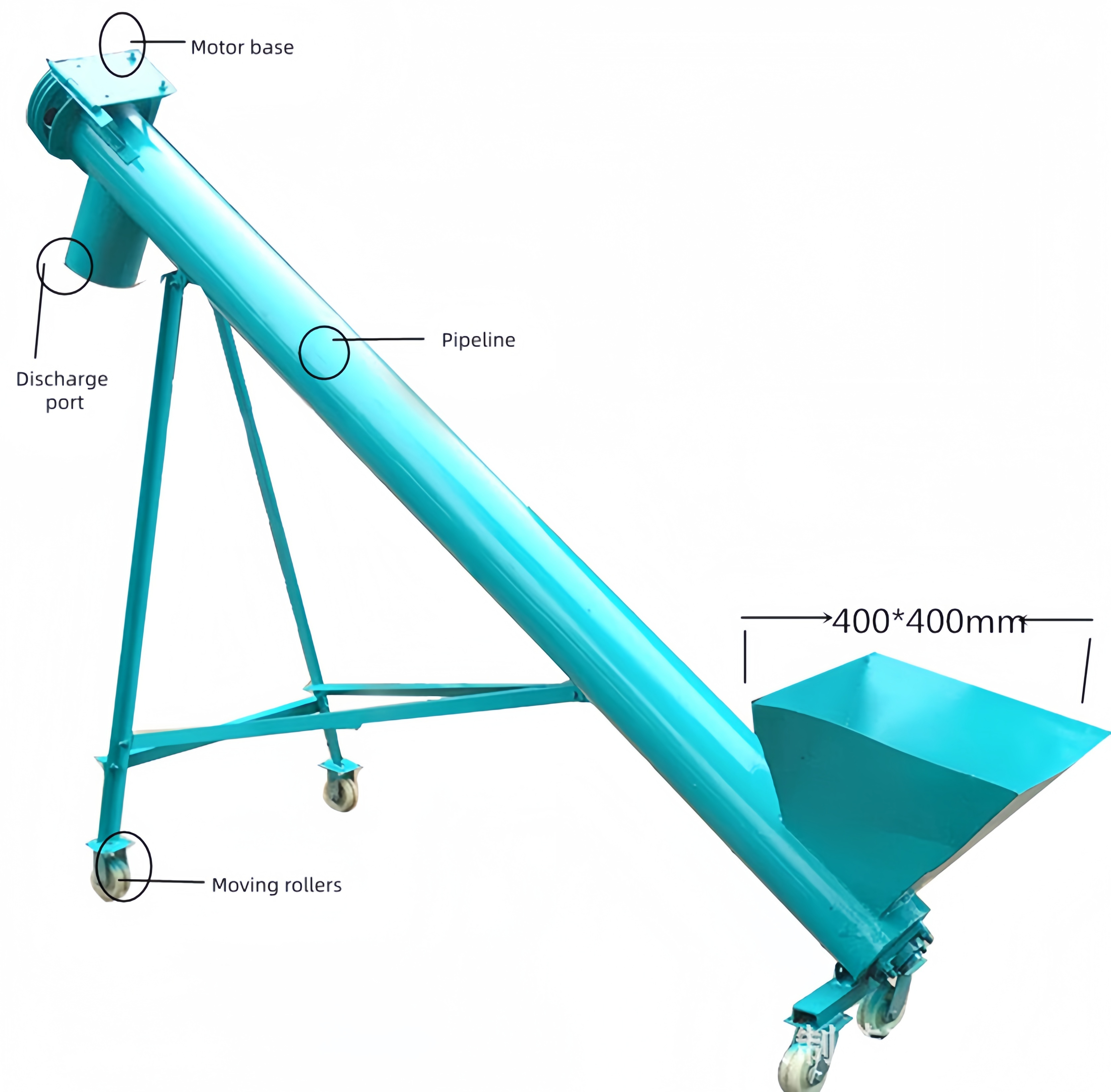

The Resin Powder Inclined Screw Conveyor mainly consists of a drive motor, a reduction gear transmission assembly, a screw shaft, screw blades, a sealed conveyor cylinder, an inlet, an outlet, and a frame support structure. The components are compactly assembled, the cylinder is highly airtight, and the overall structure is stable. The tilt angle can be adjusted for installation according to site conditions.

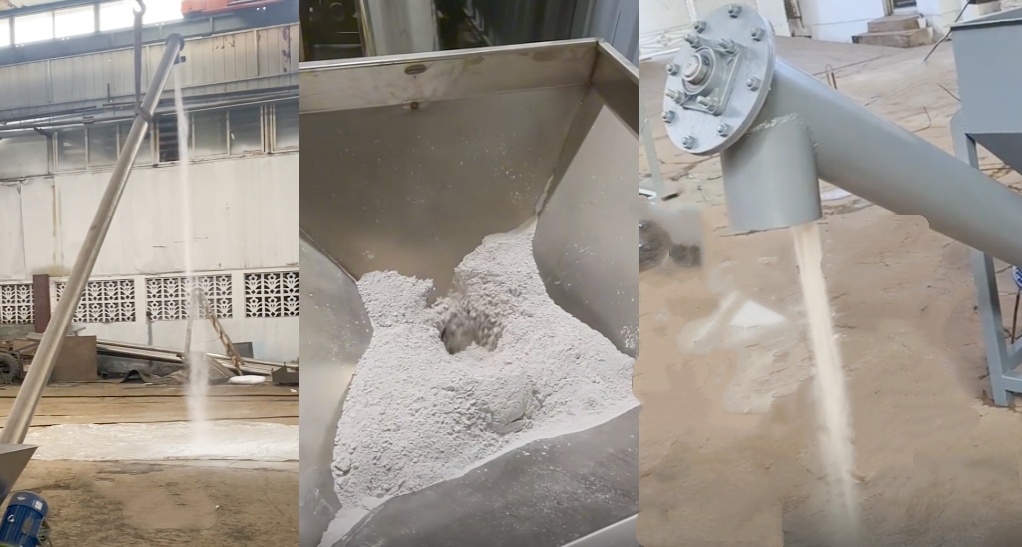

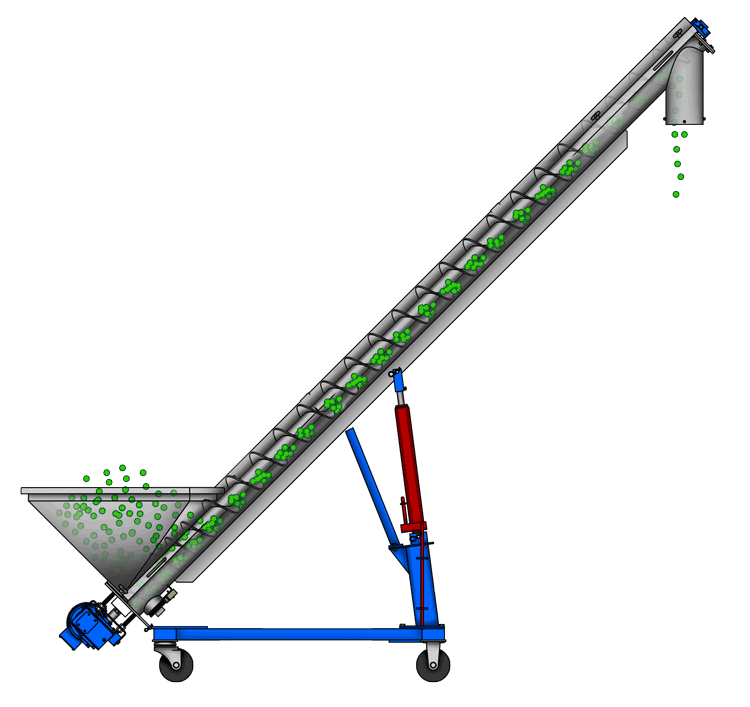

The Resin Powder Inclined Screw Conveyor relies on the motor and reducer to output power, driving the internal screw shaft and blades to rotate at a constant speed. Resin powder enters the cylinder cavity from the inlet. Due to its own gravity and the friction of the cylinder wall, the resin powder does not rotate synchronously with the blades. The rotating blades continuously generate axial thrust, overcoming the gravitational component of the inclined conveying force, steadily pushing the powder material upwards along the inclined cylinder, and finally discharging it orderly from the outlet.
The Resin Powder Inclined Screw Conveyor boasts stable and reliable operation. Its sealed chamber structure effectively suppresses dust dispersion, reduces material loss, and allows for flexible adjustment of the conveyor angle to adapt to varying site elevations.
Sealed Conveying: Effectively prevents resin powder leakage, reduces material loss, and improves the workshop working environment.
High Conveying Capacity: Adaptable to varying site elevations, offering high site flexibility.
Simple Structure: Convenient for daily maintenance and repair; stable operation minimizes material blockage and clumping.
Small Footprint: Flexibly connects to mixers, silos, packaging machines, and other equipment, suitable for various production lines.
| LS type | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| GX type | 200 | 250 | 300 | 400 | 500 | ||||||
| Spiral diameter (mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| Pitch (mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| Speed (r/min) | 140 | 120 | 90 | 90 | 75 | 75 | 60 | 60 | 45 | 35 | 30 |
| Delivery capacity QΦ=0.33 (m³/h) | 2.2 | 7.6 | 11 | 22 | 36.4 | 66.1 | 93.1 | 160 | 223 | 304 | 458 |
| 功率Pd 1=10m（KW） | 1.1 | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 | 4.1 | 8.6 | 12 | 16 | 24.4 |
| Power Pd 1=30m (KW) | 1.6 | 2.8 | 3.2 | 5.3 | 8.4 | 11 | 15.3 | 25.9 | 36 | 48 | 73.3 |
| Speed (r/min) | 120 | 90 | 75 | 75 | 60 | 60 | 45 | 45 | 35 | 30 | 20 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.9 | 5.7 | 18 | 18 | 29.1 | 52.9 | 69.8 | 125 | 174 | 261 | 305 |
| Power Pd 1=10m (KW) | 1.0 | 1.3 | 2.1 | 2.1 | 2.9 | 4.1 | 4.7 | 6.8 | 9.4 | 14.1 | 16.5 |
| Power Pd 1=30m (KW) | 1.5 | 2.3 | 4.5 | 4.5 | 7 | 8.9 | 11.6 | 20.4 | 28.3 | 42.2 | 49.5 |
| Speed (r/min) | 90 | 75 | 60 | 60 | 45 | 45 | 35 | 35 | 30 | 20 | 16 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.4 | 4.8 | 15 | 15 | 21.8 | 39.6 | 54.3 | 97 | 149 | 174 | 244 |
| Power Pd 1=10m (KW) | 0.9 | 1.2 | 1.9 | 1.9 | 2.5 | 3.4 | 4.3 | 5.4 | 8.1 | 9.5 | 13.3 |
| Power Pd 1=30m (KW) | 1.2 | 2.2 | 3.8 | 3.8 | 5.4 | 6.8 | 9.2 | 16 | 24.4 | 28.6 | 39.9 |
| Speed (r/min) | 75 | 60 | 45 | 45 | 35 | 35 | 30 | 30 | 20 | 16 | 13 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.2 | 3.8 | 11 | 11 | 17 | 31.7 | 46.5 | 73.0 | 99.3 | 139 | 199 |
| Power Pd 1=10m (KW) | 0.75 | 1.1 | 1.6 | 1.6 | 2.1 | 3.1 | 3.7 | 4.6 | 5.7 | 7.7 | 11 |
| Power Pd 1=30m (KW) | 1.1 | 1.8 | 3.4 | 3.4 | 4.4 | 5.6 | 8 | 14 | 16.7 | 23.2 | 33 |
The Resin Powder Inclined Screw Conveyor supports a variety of optional components, which can be flexibly customized and added according to the resin powder conveying conditions, safety standards, and site requirements. Different accessories optimize the overall performance of the machine from the aspects of feed control, operational safety, and equipment mobility, adapting to various production scenarios.
Feed Hopper: Customized feed hoppers can regulate the material feeding rhythm, prevent resin powder from splashing and spilling, and evenly guide the material into the conveying chamber. A baffle structure can also be used to control the feed rate, adapting to both manual feeding and automatic hopper unloading modes.
Explosion-proof Motor: For working conditions where resin powder has flammable and explosive properties, an explosion-proof motor can be selected, meeting chemical explosion-proof safety standards and avoiding safety hazards caused by dust accumulation.

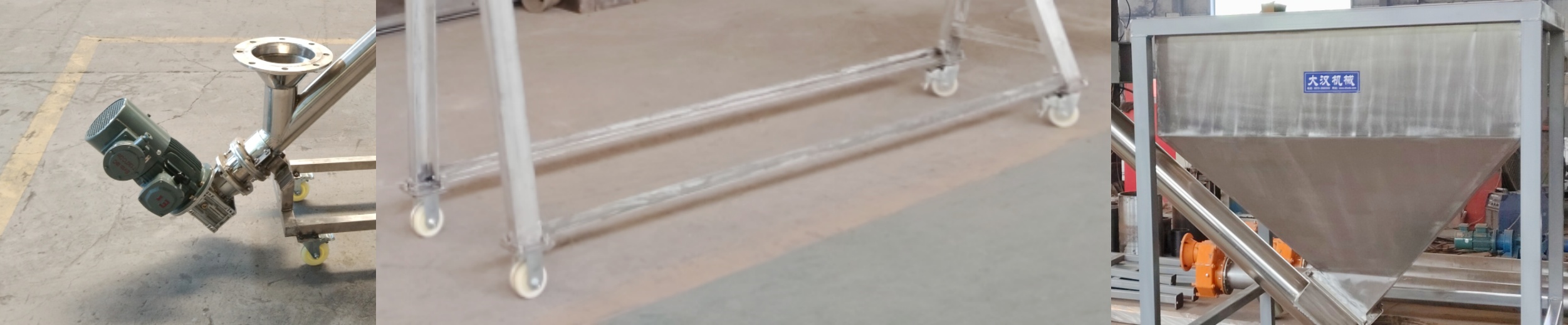

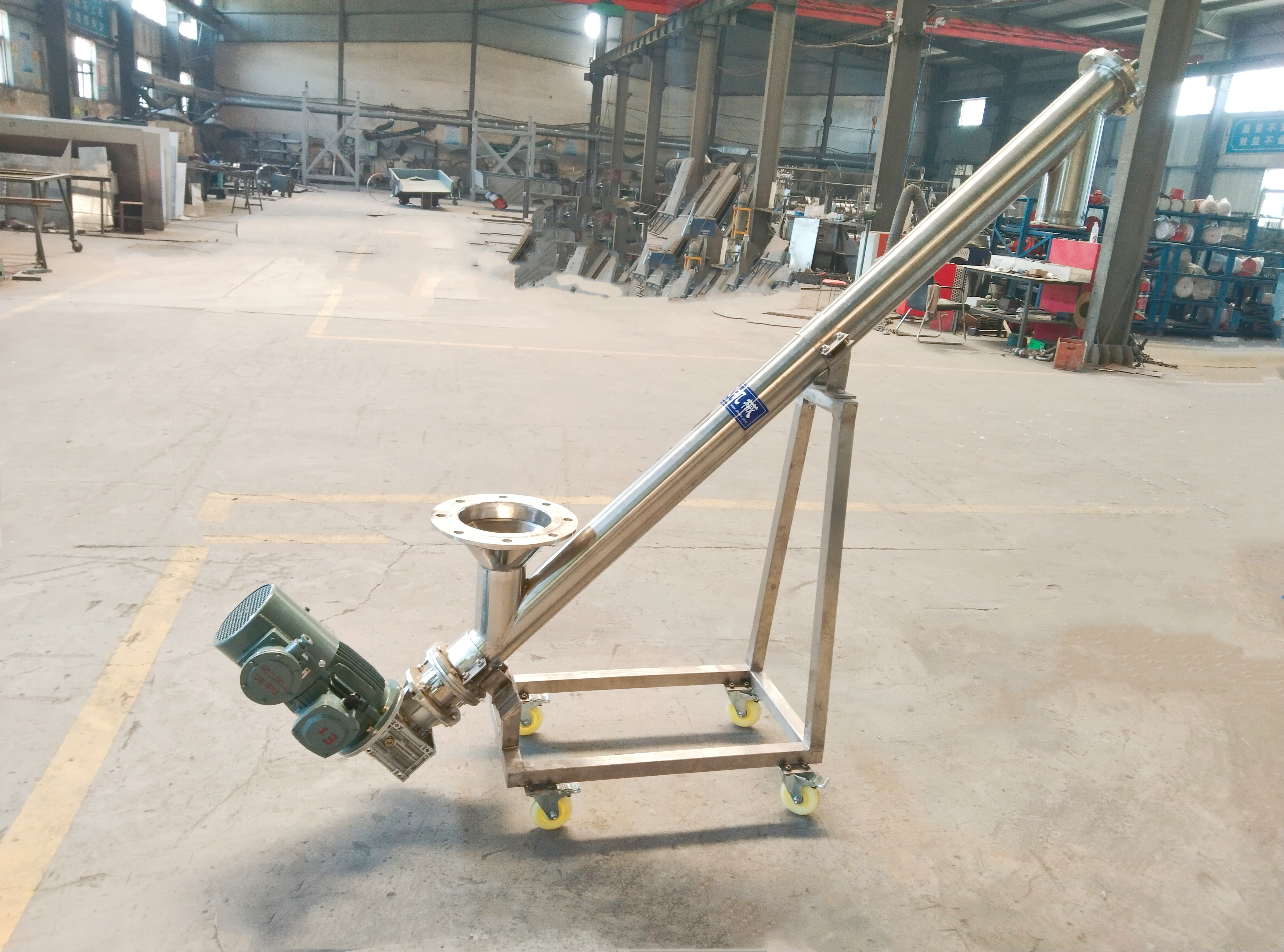

Mobile Rollers: Wear-resistant mobile rollers are installed at the bottom of the machine body, along with positioning and locking components. The equipment can be flexibly moved to different positions according to changes in production line processes, allowing for easy switching of work points without complex disassembly and assembly.
A plastic new materials company purchased an inclined screw conveyor with a cylinder diameter of 180mm, a total length of 6.5 meters, and an installation tilt angle of 22°. The entire machine is made of 304 stainless steel and is used to transport unsaturated resin powder. The actual conveying capacity reaches 4.8 tons per hour. During operation, there is no powder leakage or adhesion/caking, and it stably connects to powder mixing equipment, meeting the company's continuous mass production conveying needs.
When conveying resin powder, the material selection should prioritize considering the material characteristics and the application scenario. For standard, non-corrosive, and normally dry resin powders, carbon steel is sufficient, offering high cost-effectiveness and adequate mechanical strength. For resin powders with slight acid or alkali corrosion or those prone to moisture, 304 stainless steel is recommended for its corrosion resistance, rust prevention, and resistance to material contamination. For demanding and highly corrosive specialty resins, 316L stainless steel can be upgraded for enhanced corrosion resistance.
The Resin Powder Inclined Screw Conveyor is tailored to the powder industry's conveying needs. Its robust structure ensures reliable operation, excellent dustproof sealing, and inclined feeding adaptable to various drop conditions. Multiple optional functions meet the requirements of different plant areas and materials.
