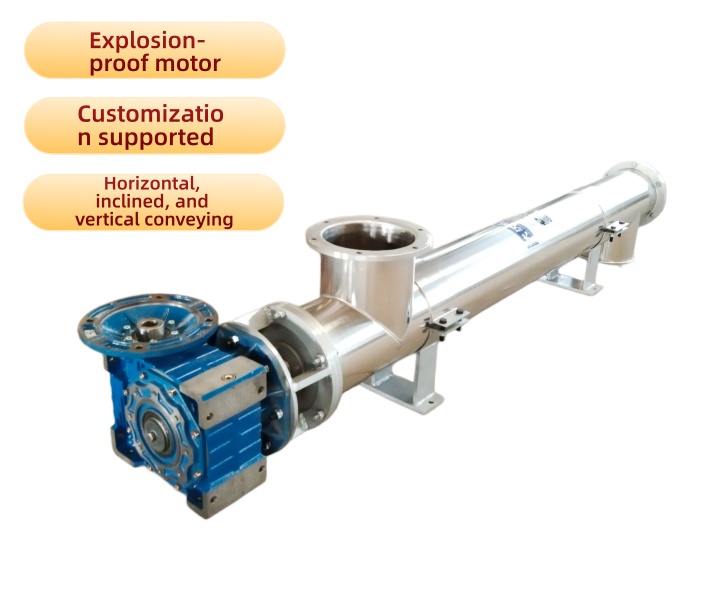

Powder Screw Feeder Conveyor for Chemical Industry is used to transfer chemical powders from one location to another, and from low to high elevations. It flexibly facilitates the transfer of chemical powders between different workstations and at different heights. It can perform both horizontal conveying and inclined/vertical feeding from low to high. A single unit can achieve a horizontal conveying length of up to 30 meters and a vertical conveying height of up to 5 meters, fully adapting to the diverse layout needs of chemical production. Equipped with an explosion-proof motor, it perfectly meets the explosion-proof safety standards of chemical workshops. It supports full-dimensional non-standard customization and can be equipped with rollers to facilitate equipment movement and workstation adjustments according to production conditions. It supports multi-point feeding and adapts to the powder transfer needs of various scenarios and batches in chemical production.
The Powder Screw Feeder Conveyor for Chemical Industry is suitable for powder transfer under various working conditions, supporting horizontal, inclined, and vertical multi-directional conveying. Its fully sealed structure prevents dust, ensures stable operation and easy maintenance, and easily adapts to all scenarios of chemical powder conveying.
Flexible Structure: Adopting a modular tubular design, it offers flexible installation methods, easily adapting to complex workshop spaces and traversing equipment and floors horizontally, inclined, or vertically.
Explosion-proof Safety: Equipped with a dedicated explosion-proof motor, it meets the explosion-proof safety standards of chemical workshops, avoiding the safety hazards of flammable and explosive materials during powder conveying from the power source, ensuring safe production operations.
Customization: Supports full-dimensional non-standard customization. Pipe diameter and blade parameters can be adjusted according to powder characteristics and conveying requirements. Roller designs can also be added for easy equipment movement and workstation adjustments.
Sealed and Leak-Proof: Utilizes a sealed tubular structure, ensuring zero powder leakage and dust generation throughout the conveying process, reducing material loss and preventing powder pollution of the workshop environment.

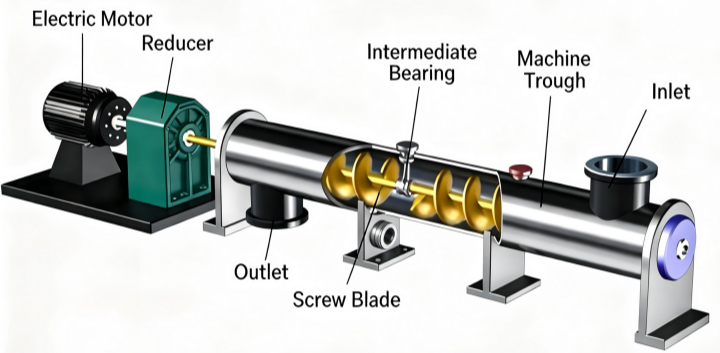

Designed for multi-condition conveying of chemical powders, the Powder Screw Feeder Conveyor for Chemical Industry consists of five core structures: a sealed tubular cylinder, wear-resistant spiral blades, an explosion-proof power transmission device, sealed inlet and outlet ports, and a frame base. An explosion-proof motor paired with a reducer provides stable power. The sealed tubular cylinder and inlet/outlet ports form a fully enclosed conveying space, preventing powder leakage and dust generation. The wear-resistant spiral blades are the core of the conveying process, driving the powder to complete multi-directional transfer. The frame base can be equipped with rollers for flexible movement. All components work together to ensure safe, high-speed, and continuous conveying of chemical powders.

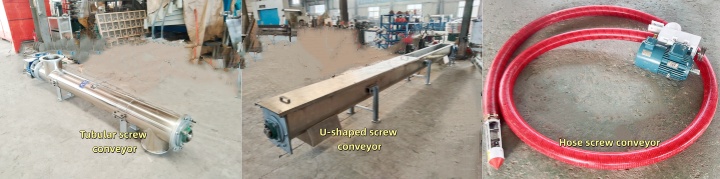

Our factory manufactures three main types of Powder Screw Feeder Conveyors for the Chemical Industry: tubular screw conveyors, U-shaped screw conveyors, and flexible hose screw conveyors. These types differ in structure and characteristics, adapting to various chemical powder transfer conditions.

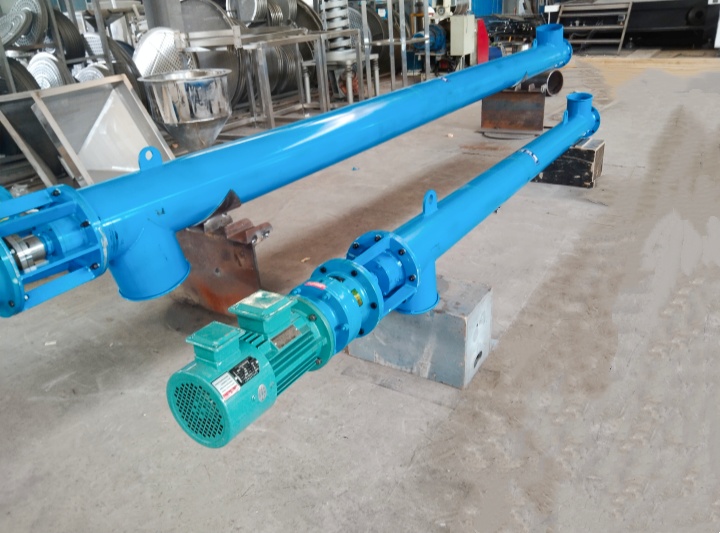

Tubular Screw Conveyor: Featuring a fully sealed tubular cylinder design, it offers excellent dust and powder leakage prevention. Suitable for flammable, explosive, and easily airborne fine chemical powders, it supports horizontal, inclined, and vertical multi-directional conveying. Available in carbon steel, stainless steel, and PP materials.
U-shaped Screw Conveyor: With a semi-open U-shaped cylinder structure, it is easy to clean and maintain. Suitable for low-viscosity, dust-free general chemical powders, primarily used for short-distance horizontal conveying. Flexible unloading makes it suitable for powder transfer at fixed workstations within a workshop.
Flexible Hose Screw Conveyor: Utilizing a flexible hose with built-in helical blades, the machine is lightweight and easily bendable. It supports the addition of rollers for mobile operation and is suitable for short-distance powder transfer in multi-station, irregularly shaped sites in chemical production, offering high flexibility.
The core working principle of the Powder Screw Feeder Conveyor for Chemical Industry is to utilize the mechanical thrust generated by the high-speed rotating helical blades within a sealed pipe to achieve forced, stable, and directional conveying of powder. When the motor drives the helical shaft to rotate at high speed, the blades propel the chemical powder entering the pipe forward axially, completing the powder conveying. Because the pipe is completely sealed and has a highly smooth inner wall, the powder does not come into contact with the external environment during conveying, effectively preventing the risks of moisture absorption, oxidation, contamination, or dust explosions. Its conveying speed is flexibly adjusted via a variable frequency motor.
| LS type | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| GX type | 200 | 250 | 300 | 400 | 500 | ||||||
| Spiral diameter (mm) | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 1000 | 1250 |
| Pitch (mm) | 100 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
| Speed (r/min) | 140 | 120 | 90 | 90 | 75 | 75 | 60 | 60 | 45 | 35 | 30 |
| Delivery capacity QΦ=0.33 (m³/h) | 2.2 | 7.6 | 11 | 22 | 36.4 | 66.1 | 93.1 | 160 | 223 | 304 | 458 |
| 功率Pd 1=10m（KW） | 1.1 | 1.5 | 2.2 | 2.4 | 3.2 | 5.1 | 4.1 | 8.6 | 12 | 16 | 24.4 |
| Power Pd 1=30m (KW) | 1.6 | 2.8 | 3.2 | 5.3 | 8.4 | 11 | 15.3 | 25.9 | 36 | 48 | 73.3 |
| Speed (r/min) | 120 | 90 | 75 | 75 | 60 | 60 | 45 | 45 | 35 | 30 | 20 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.9 | 5.7 | 18 | 18 | 29.1 | 52.9 | 69.8 | 125 | 174 | 261 | 305 |
| Power Pd 1=10m (KW) | 1.0 | 1.3 | 2.1 | 2.1 | 2.9 | 4.1 | 4.7 | 6.8 | 9.4 | 14.1 | 16.5 |
| Power Pd 1=30m (KW) | 1.5 | 2.3 | 4.5 | 4.5 | 7 | 8.9 | 11.6 | 20.4 | 28.3 | 42.2 | 49.5 |
| Speed (r/min) | 90 | 75 | 60 | 60 | 45 | 45 | 35 | 35 | 30 | 20 | 16 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.4 | 4.8 | 15 | 15 | 21.8 | 39.6 | 54.3 | 97 | 149 | 174 | 244 |
| Power Pd 1=10m (KW) | 0.9 | 1.2 | 1.9 | 1.9 | 2.5 | 3.4 | 4.3 | 5.4 | 8.1 | 9.5 | 13.3 |
| Power Pd 1=30m (KW) | 1.2 | 2.2 | 3.8 | 3.8 | 5.4 | 6.8 | 9.2 | 16 | 24.4 | 28.6 | 39.9 |
| Speed (r/min) | 75 | 60 | 45 | 45 | 35 | 35 | 30 | 30 | 20 | 16 | 13 |
| Delivery capacity QΦ=0.33 (m³/h) | 1.2 | 3.8 | 11 | 11 | 17 | 31.7 | 46.5 | 73.0 | 99.3 | 139 | 199 |
| Power Pd 1=10m (KW) | 0.75 | 1.1 | 1.6 | 1.6 | 2.1 | 3.1 | 3.7 | 4.6 | 5.7 | 7.7 | 11 |
| Power Pd 1=30m (KW) | 1.1 | 1.8 | 3.4 | 3.4 | 4.4 | 5.6 | 8 | 14 | 16.7 | 23.2 | 33 |

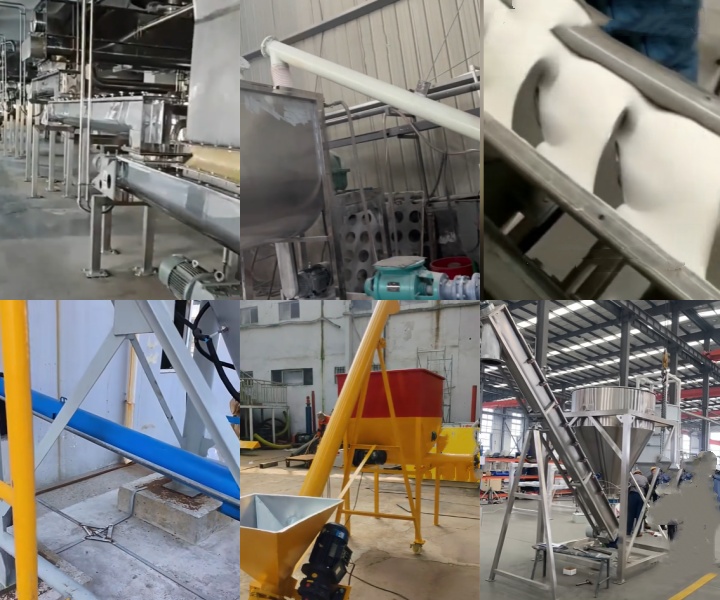

The Powder Screw Feeder Conveyor for Chemical Industry is widely used in various powder handling processes within the chemical industry, covering workshop process transfer, packaging feeding, and warehousing inbound/outbound operations. It easily adapts to chemical batching, production equipment feeding, and petrochemical powder distribution.
Chemical Powder Workshop Transfer: Connects various chemical production processes, enabling cross-regional and high/low-level transfer of powder between batching, mixing, and grinding stations.
Chemical Powder Packaging: Supports packaging production lines, accurately conveying powder from storage silos to packaging machine inlets, achieving continuous feeding.
Warehouse Inbound/Outbound: Completes the feeding, discharging, and warehousing transfer of powder in storage tanks and silos. Closed conveying reduces powder loss and dust generation, suitable for large-scale warehousing operations.
Feeding and Loading: Provides feeding and loading services for production equipment such as reactors and mixers, enabling vertical and inclined conveying, replacing manual feeding.
Choosing the right Powder Screw Feeder Conveyor for Chemical Industry requires considering the characteristics of the powder, conveying conditions, and workshop requirements. For conveying flammable, explosive, or dusty fine powders, a fully sealed tubular model is preferred, suitable for multi-directional long-distance conveying; for ordinary dust-free powders, a U-shaped model is suitable for easier cleaning and maintenance; for flexible transfer in multi-station, irregularly shaped sites, a flexible hose model is recommended, as the machine is lightweight and mobile. Customized production can also be tailored to the conveying capacity, conveying distance, and on-site usage.
Dahan Machinery possesses mature design, manufacturing, and after-sales service capabilities across the entire chain. We specialize in a full range of Powder Screw Feeder Conveyors for the Chemical Industry, including tubular, U-shaped, and flexible hose models. Customizable configurations include explosion-proof motors and roller designs. Suitable for horizontal, inclined, and vertical conveying, our products are available in 304/316 stainless steel, wear-resistant carbon steel, and PP materials to meet the conveying needs of various chemical powders. All products undergo rigorous quality testing. We support non-standard customization and can tailor production to your specific conveying needs. Direct factory supply eliminates middlemen, ensuring transparent pricing and supporting global export.
With its superior sealing and high degree of customization, the Powder Screw Feeder Conveyor for the Chemical Industry has become an essential transfer tool for chemical powder conveying. It is not only a tool for powder conveying but also crucial for ensuring product purity, achieving safe production, and improving automation levels.
