Mung Bean Flexible Tube Screw Conveyor

Mung Bean Flexible Tube Screw Conveyor utilizes a freely bendable flexible helix as its core conveying component. A motor drives the helical blades to rotate, propelling the mung beans continuously forward within a sealed flexible tube. It breaks through the limitations of traditional conveying paths, enabling both horizontal straight-line conveying and multi-dimensional conveying (inclined, vertical, etc.) to suit various spatial scenarios and material transfer needs. The standard length of a single unit can be flexibly configured up to 30 meters, meeting medium- to long-distance conveying requirements. The maximum conveying capacity is up to 20 tons per hour. It can connect multiple stages of the mung bean production process, including storage, processing, and packaging. Customization is available to suit specific production scenarios and conveying needs.

What are the advantages of the Mung Bean Flexible Tube Screw Conveyor?

The Mung Bean Flexible Tube Screw Conveyor can be flexibly arranged to fit any available space, easily bypassing obstacles and conforming to irregular workshop layouts. It freely switches between horizontal, inclined, and vertical conveying modes without the need for complex additional conveyor lines. The sealed flexible hose design effectively prevents dust leakage and material loss, maintaining a clean production environment while preventing mung beans from contacting the outside world. The equipment operates stably without additional bearing interference, resulting in low operating noise, low failure rate, and low daily maintenance costs. Disassembly and cleaning can be quickly completed by a single person. It is adaptable to switching between multiple material types, and its single-unit weight allows for easy handling by one person.

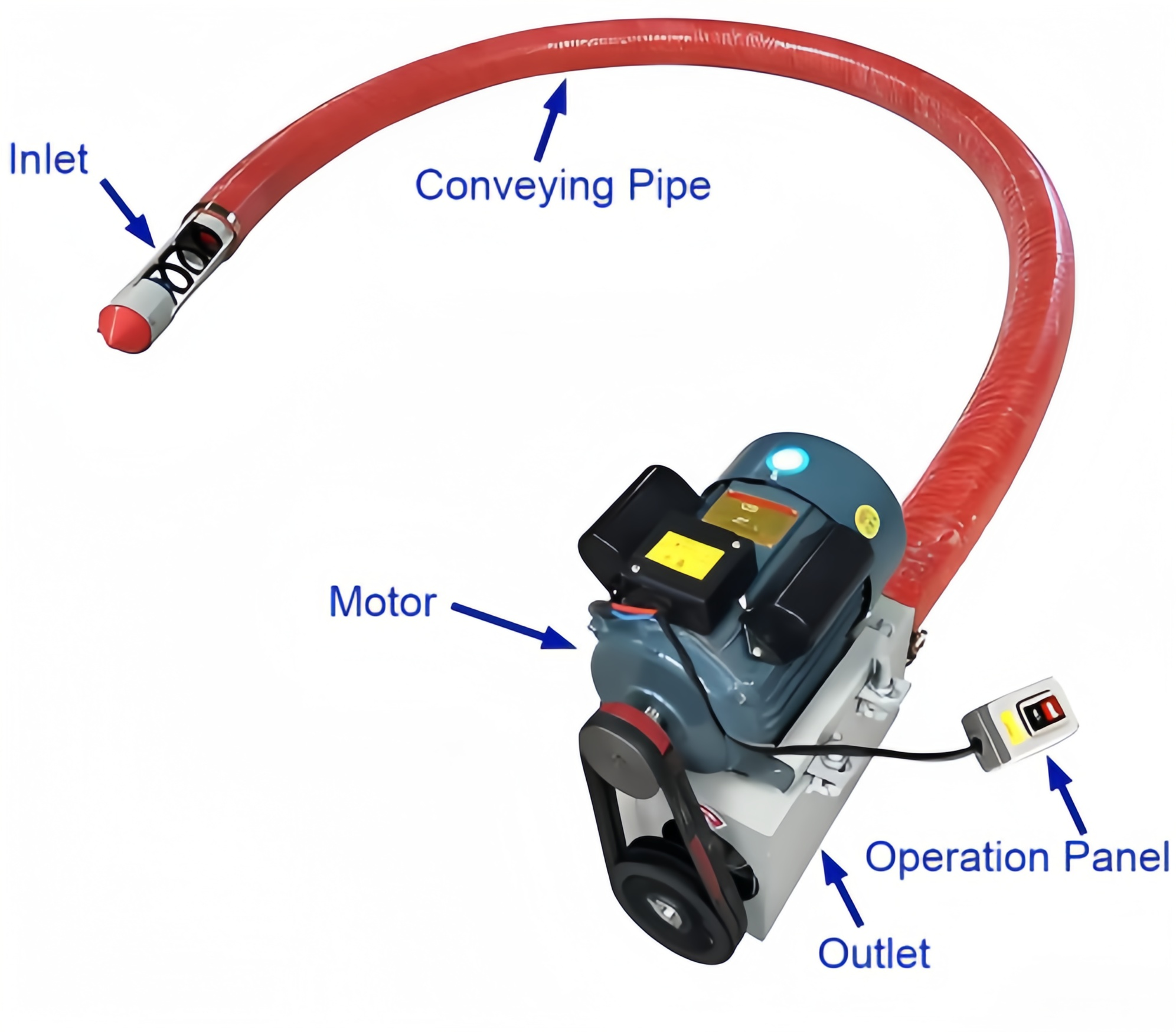

Mung Bean Flexible Tube Screw Conveyor Parts

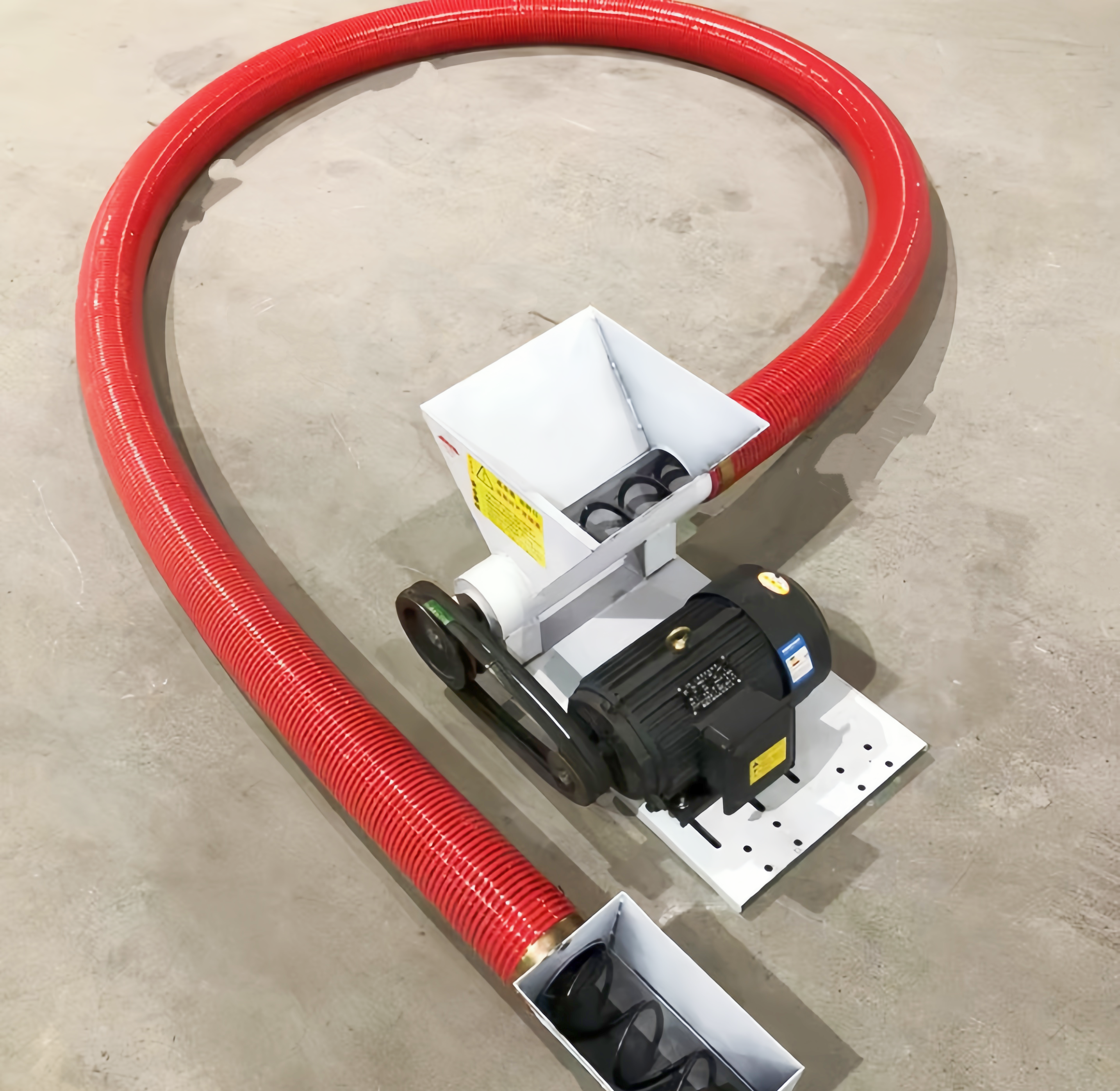

The Mung Bean Flexible Tube Screw Conveyor consists of a drive unit, flexible conveying tube, spiral blades, inlet, outlet, and support and fixing components. Its structural design is simple, compact, and clearly modular. The drive unit, located at one end or in the middle of the equipment, is equipped with a suitable motor and reduction gear to provide stable power for the rotation of the helical blades. The speed can be adjusted according to conveying requirements to match different conveying volumes. The core conveying component is the wear-resistant flexible helical blade, which fits snugly with the flexible tubing. The inlet and outlet use standardized interface designs for easy connection to upstream and downstream equipment.

How does the Mung Bean Flexible Tube Screw Conveyor work?

The drive motor of the Mung Bean Flexible Tube Screw Conveyor drives the flexible helical blades to rotate at a constant speed inside the conveying pipe. After the mung beans enter the tubing through the inlet, they move continuously forward along the pipe axis under the combined action of the rotational thrust of the helical blades and the friction of the pipe wall. Due to the flexible design of the helical blades, the direction of movement can be adjusted to adapt to the path of the curved pipe during conveying, successfully completing horizontal, inclined, or vertical conveying.

Mung Bean Flexible Tube Screw Conveyor Technical Specifications

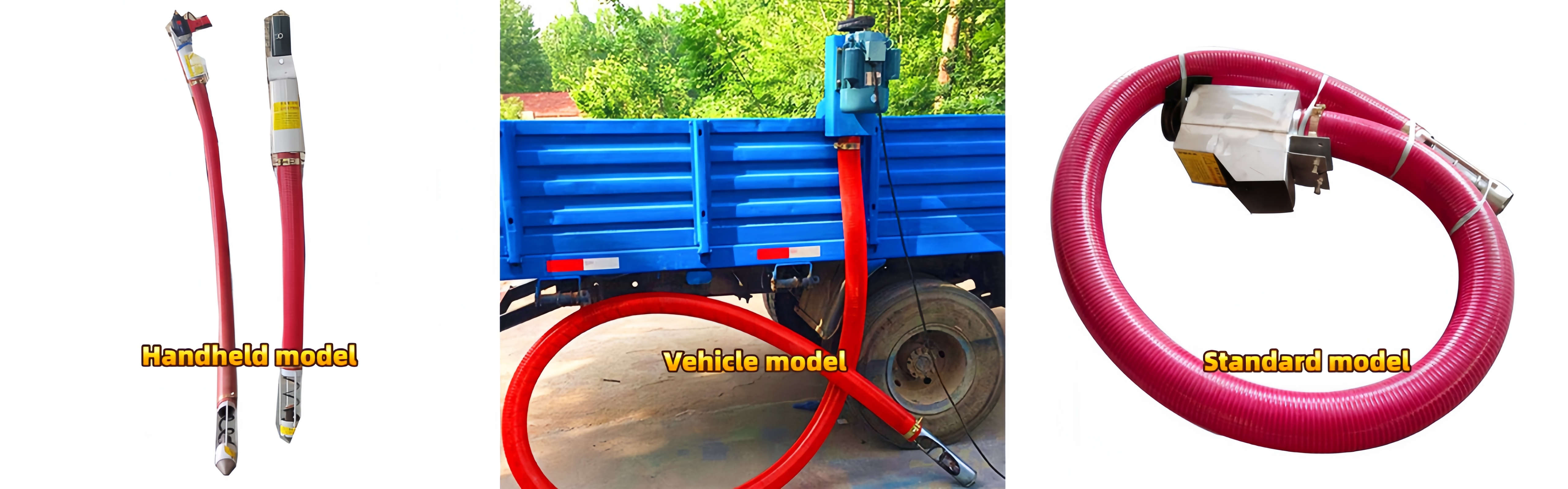

Mung Bean Flexible Tube Screw Conveyor Types for Sale

We offer different models to meet various customer needs. Each model has different performance and application scenarios, allowing customers to choose the appropriate conveyor based on their specific conveying requirements, ensuring fast and efficient mung bean transport.

Standard Mung Bean Flexible Tube Screw Conveyor: This is a common type of mung bean conveyor, suitable for standard mung bean transport scenarios. Its core configuration is stable and durable, meeting daily short-to-medium distance and regular transport volume needs. The conveying length can be customized according to user requirements. It is suitable for material transfer in small and medium-sized mung bean processing enterprises and storage points, requiring no complex installation conditions and can be used immediately upon placement.

Handheld Mung Bean Flexible Tube Screw Conveyor: Designed for small-scale, multi-point mung bean transport scenarios, this compact and lightweight machine can be easily operated by a single person. It is suitable for the transport of scattered materials in family workshops and small-batch processing households. Equipped with a portable rechargeable or plug-in mini drive unit, the power is adapted for small-flow conveying, meeting the needs of rapid transfer of small quantities of mung beans.

Vehicle-mounted Mung Bean Flexible Tube Screw Conveyor: Adapted to mobile mung bean conveying needs, the core features a movable chassis with casters and locking devices at the bottom, facilitating flexible movement between workshops, storage areas, and transport vehicles. It also has a vehicle-mounted adapter interface, allowing for use with transport vehicles and small power equipment.

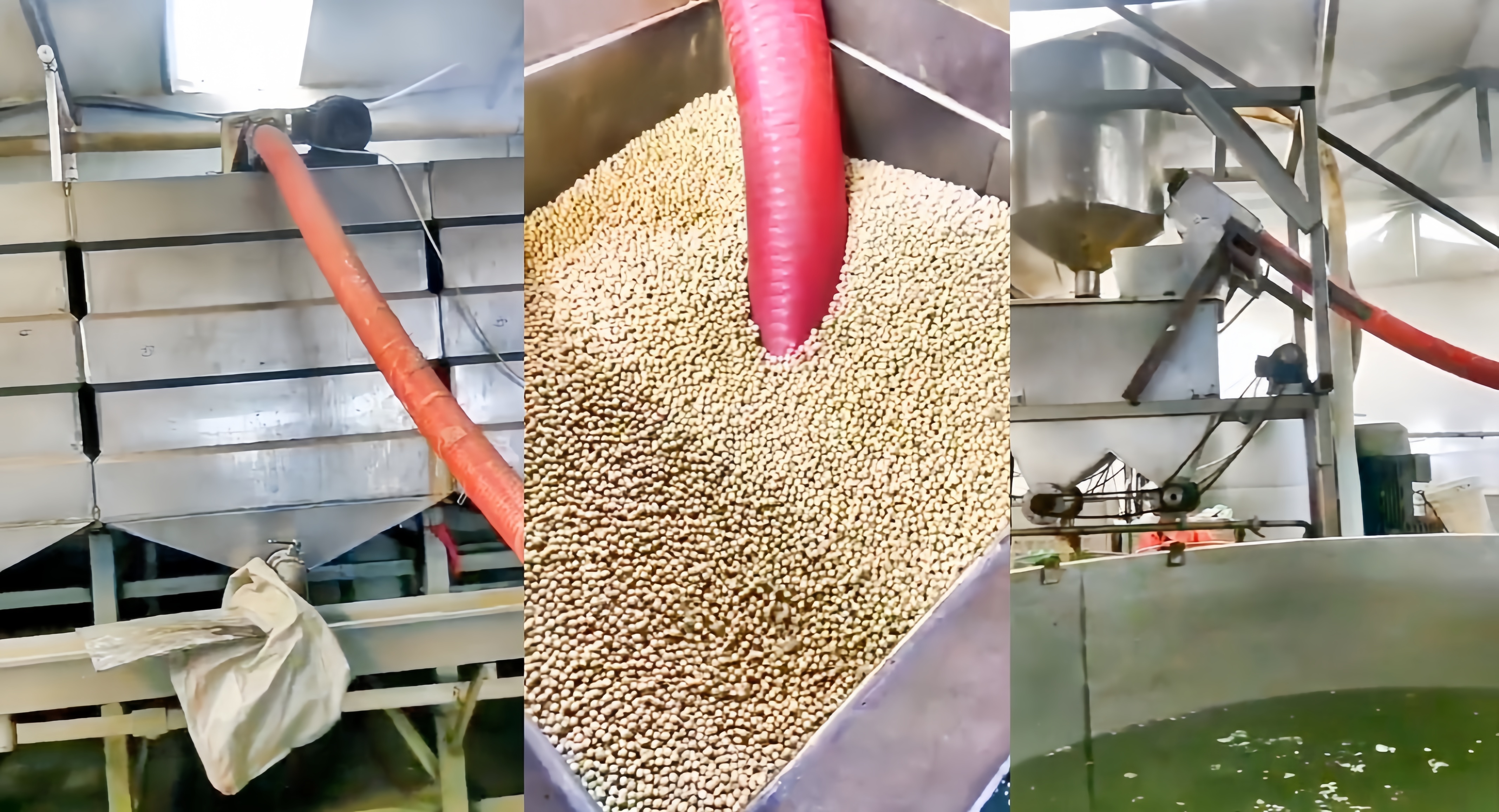

Mung Bean Flexible Tube Screw Conveyor Customer Case

A medium-sized grain processing company in the United States customized a 25-meter-long flexible tube conveyor capable of stably conveying 18 tons of mung beans per hour to solve the material transfer challenges posed by limited workshop space and complex conveying paths. This enabled continuous conveying of mung beans from storage silos to washing equipment and processing lines. The flexible nature of the equipment allows it to flexibly bypass mixers, packaging machines, and other equipment within the workshop, creating a horizontal + vertical combined conveying line that perfectly matches the company's production rhythm.

What is the price of the Mung Bean Flexible Tube Screw Conveyor?

The price range for the Mung Bean Flexible Tube Screw Conveyor manufactured by DaHan Machinery is $90.00-$1050.00. A specific quote requires a comprehensive calculation based on various factors. Different models have significantly different prices due to differences in design positioning and core configuration. The basic model focuses on meeting simple transport needs, with a relatively simple configuration and a lower price range. The portable model, due to its compact and flexible nature, has special requirements for material selection and power configuration, and its price is slightly higher than the basic model. The mobile model features a movable chassis and a high-power drive unit, with a more complex structure and wider applicability, and its price is at the higher end of the range. Furthermore, the conveying length, pipe diameter, material selection, and whether customized design is required will all affect the final price. To obtain a detailed quote, please provide us with your specific usage requirements, model preferences, and relevant configuration parameters. We will then provide you with a suitable model and a detailed price list.

The Mung Bean Flexible Tube Screw Conveyor, with its flexible conveying method and stable operating performance, is an ideal conveying equipment for mung bean processing, warehousing, and other fields. Its flexible and multi-dimensional conveying characteristics perfectly adapt to complex spatial layouts. From the standard model that meets basic needs to the flexible and portable handheld model and the vehicle-mounted model that is suitable for mobile operations, multiple types of options meet the needs of mung bean conveying in different scenarios.
