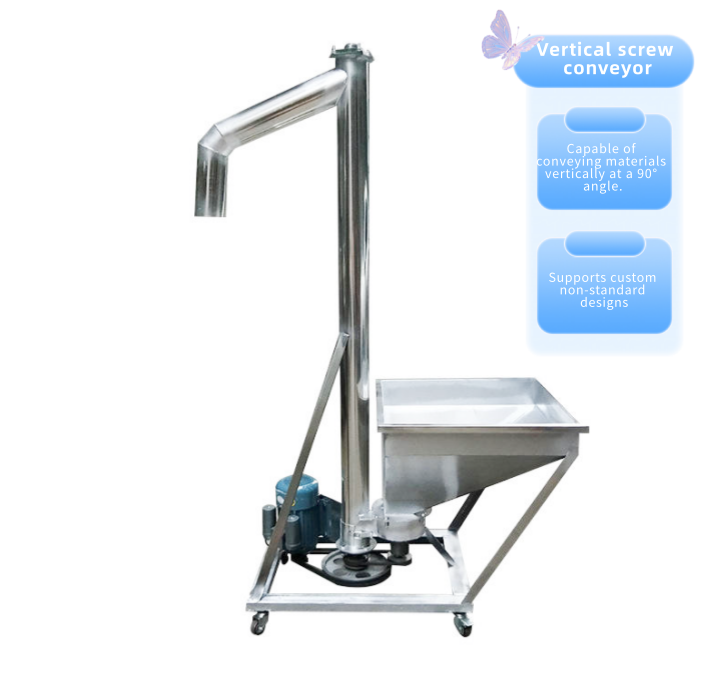

Edible Salt Vertical Screw Conveyor is a lifting and conveying system for the production, storage, packaging, and transfer of refined salt, coarse salt, and iodized salt. It automates the transfer and feeding of edible salt from low to high levels and can be fully customized to meet specific customer needs. Pipe diameters can be flexibly customized from 110-800mm, and materials include food-grade 304 and 316 stainless steel. Custom configurations such as feed silos and roller designs are also supported, tailoring highly adaptable conveying solutions to suit the workshop layout, production capacity, and process requirements of different edible salt processing enterprises.
The Edible Salt Vertical Screw Conveyor is constructed entirely of food-grade 304/316 stainless steel with a polished surface, eliminating unsanitary corners, preventing rust, and ensuring no contamination of the salt, thus meeting food safety production standards. Addressing the hygroscopic and clumping characteristics of salt, the spiral blade structure is optimized with anti-stick treatment to prevent clogging, material adhesion, and salt breakage, ensuring smooth conveying. The fully enclosed vertical conveying design eliminates dust leakage and impurity contamination, reducing salt loss and maintaining a clean workshop environment. Its compact footprint allows for flexible integration with storage silos, packaging machines, mixing machines, and other equipment, enabling rapid and efficient vertical conveying from low to high levels, replacing manual feeding.
The Edible Salt Vertical Screw Conveyor operates by using a drive motor to power a reducer, causing the spiral main shaft inside the cylinder to rotate at a uniform speed. After entering the sealed cylinder through the feed inlet, edible salt is lifted upwards along the cylinder by the combined thrust of the spiral blades and centrifugal force. Upon reaching the designated position, it is discharged, completing the vertical conveying of the salt. The entire machine is vertically arranged, relying on the continuous rotation of the spiral to achieve stable material conveying. The entire process is impact-free and minimizes breakage, making it suitable for materials like edible salt with uniform particle size and high hygiene requirements.

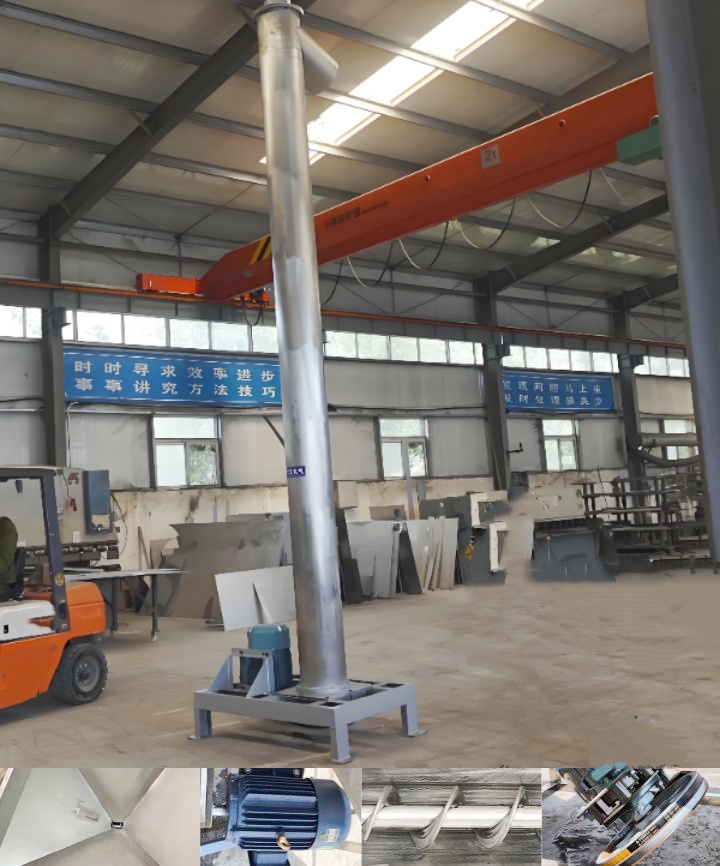

The Edible Salt Vertical Screw Conveyor mainly consists of a food-grade drive unit motor and reducer, a stainless steel spiral main shaft, a sealed conveying cylinder, a food-grade feed inlet, a discharge outlet, a vertical support frame, and sealing components. The drive unit provides stable power and low noise, adapting to the load requirements of vertical conveying; the spiral blades are made of thickened food-grade stainless steel, with controlled pitch to reduce salt particle crushing; the sealing components use food-grade seals to prevent leakage and dust ingress, ensuring the hygiene of the edible salt; the vertical frame structure is robust and can be customized according to the lifting height to adapt to different workshop layouts.
| Specification | LC160 | LC200 | LC250 | LC315 | |
| Diameter(mm) | 160 | 200 | 250 | 315 | |
| Rotating Speed(r/min) | 450 | 450 | 415 | 380 | |
| Capacity(m3/h) | 10 | 28.5 | 51 | 95 | |
| Conveying Height(m) | 2.5～15 | 2.5～15 | 2.5～15 | 2.5～15 | |
| Motor | Height(m) | 2.5～5.5 | 2.5～5.5 | 2.5～4 | 2.5～4 |
| Model | Y100L2-4 | Y100L2-4 | Y132M1-6 | Y160M-6 | |
| Power | 3KW | 3KW | 4KW | 7.5KW | |
| Height(m) | 6～7 | 6～7 | 4.5～5.6 | 4.5～6 | |
| Model | Y112M-4 | Y112M-4 | Y132M2-6 | Y160L-6 | |
| Power | 4KW | 4KW | 5.5KW | 11KW | |
| Height(m) | 7.5～10 | 7.5～10 | 6～7.5 | 6.5～8 | |
| Model | Y132S-4 | Y132S-4 | Y160L-6 | Y160L-6 | |
| Power | 5.5KW | 5.5KW | 7.5KW | 15KW | |
| Height(m) | 10.5～13.5 | 10.5～13.5 | 8～11 | 8.5～12 | |
| Model | Y132S-4 | Y132M-4 | Y160L-6 | Y180L-6 | |
| Power | 7.5KW | 7.5KW | 11KW | 11KW2台 | |
| Height(m) | 14～15 | 14～15 | 11.5～15 | 12.5～15 | |
| Model | Y160M-4 | Y160M-4 | Y180L-6 | Y180L-6 | |
| Power | 11KW | 11KW | 15KW | 15KW2台 | |
The Edible Salt Vertical Screw Conveyor is widely applicable to edible salt production, packaging, storage, and food ingredient applications. It can vertically feed and transport refined salt, coarse salt, and iodized salt at a high level, seamlessly connecting with silos, packaging machines, and mixing equipment to meet the conveying needs of various industries such as salt processing, condiments, and food factories.
Edible Salt Processing Plants: Adapted for vertical feeding of various types of edible salt, including refined salt, coarse salt, and iodized salt, connecting salt production, mixing, and drying processes. It lifts materials from lower levels to higher levels, enabling automated continuous operation.
Edible Salt Packaging Workshops: Used for high-level feeding before packaging, vertically lifting edible salt from storage silos to the packaging machine inlet, ensuring precise quantity control, preventing dust leakage, and meeting food packaging hygiene standards.
Edible Salt Storage and Transfer: Connects storage silos and conveyor lines, enabling the vertical transfer of edible salt from low-level stockpiles and small silos to high-level storage silos, reducing manual handling.
Condiment Processing Plants: Suitable for vertical conveying of edible salt as an ingredient, it can be integrated with production lines for soy sauce, pickles, and sauces, precisely delivering edible salt to mixing and blending processes.
The vertical lifting height of the Edible Salt Vertical Screw Conveyor is highly flexible. Our factory produces vertical screws that can reach approximately 5 meters. This height ensures a certain conveying volume, conveying effect, and conveying capacity, meeting the connection needs of most multi-story or high-level equipment in workshops. For higher requirements, we can recommend other vertical conveying equipment based on your production needs, providing you with a technical solution that achieves the best balance between efficiency, stability, and cost.
The choice between 304 and 316 stainless steel for the Edible Salt Vertical Screw Conveyor depends primarily on the production environment, salt content, humidity, and hygiene standards. For routine, dry salt production, packaging, and feeding scenarios without special corrosion, 304 stainless steel meets food-grade requirements, offering rust resistance, easy cleaning, and high cost-effectiveness, making it the mainstream choice in the industry. However, for humid environments, high salt concentrations, prolonged contact with brine, frequent cleaning and disinfection, or conditions requiring higher corrosion resistance, 316 stainless steel is recommended. It offers stronger resistance to chloride ion corrosion, moisture resistance, and rust prevention, resulting in a more stable service life and making it more suitable for high-standard food companies and export-grade production lines.
As the original manufacturer of Edible Salt Vertical Screw Conveyors, DaHan Machinery insists on direct factory supply, eliminating middlemen and ensuring transparent and reasonable pricing. The overall price range is $500.00-$5,000.00. The price is primarily influenced by non-standard customized parameters, including material selection, pipe diameter, and lifting height. Different configurations will result in price variations. Furthermore, adding personalized features such as a feeding hopper and roller design will also slightly adjust the price based on the complexity of the configuration. We promise transparent pricing with no hidden costs. We can provide accurate quotes and cost-effective customized solutions based on the customer's actual working conditions and budget, balancing equipment quality and cost control, allowing customers to purchase high-quality equipment suitable for conveying food-grade edible salt at a reasonable price.
The Edible Salt Vertical Screw Conveyor is a vertical lifting conveyor system for transporting edible salt. Adhering to food-grade production standards, it is primarily designed to meet the vertical feeding and high-level transfer needs of the entire process of edible salt production, storage, and packaging.
