Corn Seed Vertical Screw Conveyor is a screw conveyor for vertically transporting bulk corn seeds, achieving low-to-high bulk corn material transfer. It uses a tubular enclosed structure, suitable for dry, non-sticky granular materials. Its 90° vertical arrangement saves space, and the rotating screw blades push the material. The fully enclosed design reduces seed mixing and contamination, ensuring variety purity. The machine body can be made of carbon steel or food-grade stainless steel, with a smooth, corner-free inner wall, meeting the clean transport requirements of corn seeds. The bottom can be fitted with rollers, allowing for easy repositioning and loading at different workstations.

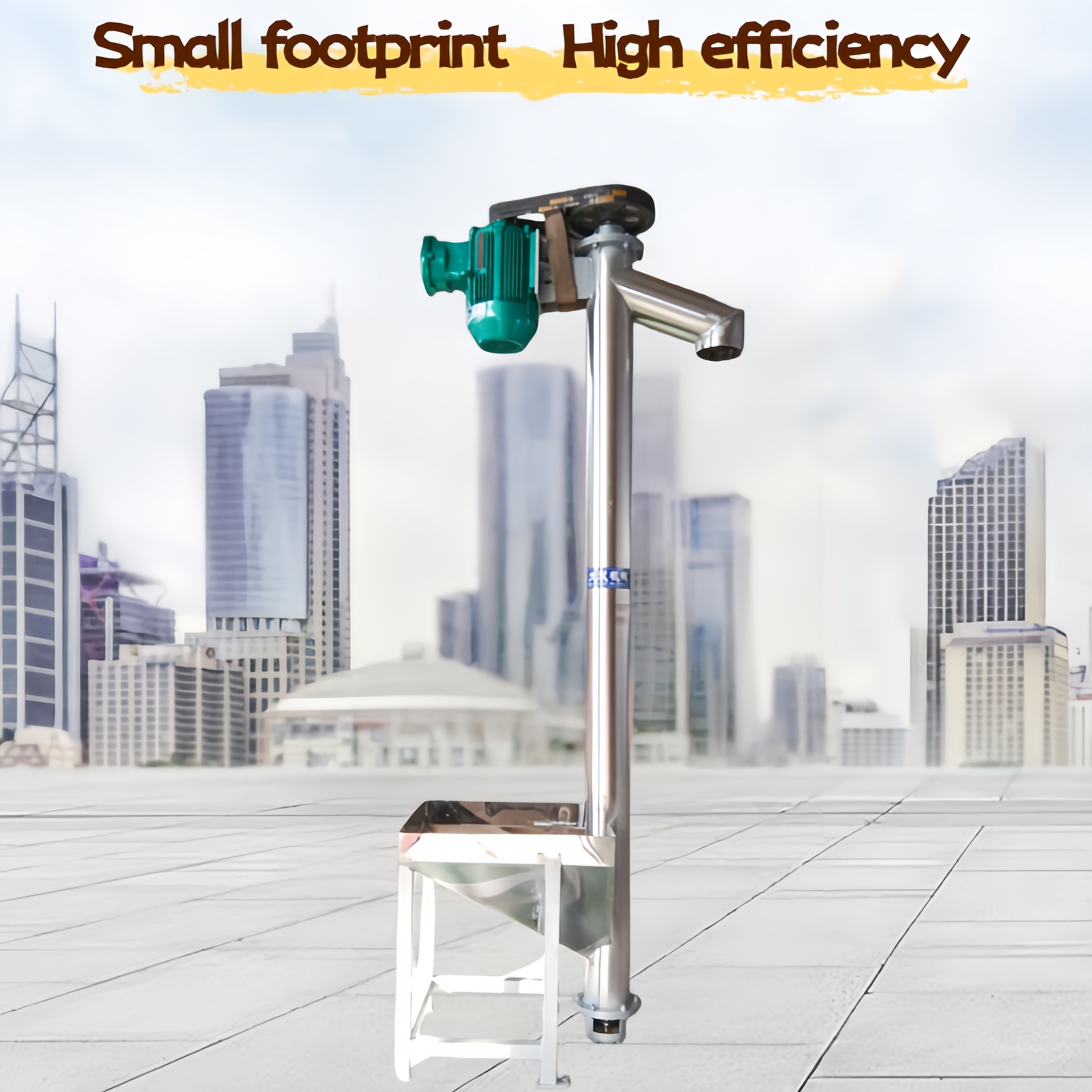

The Corn Seed Vertical Screw Conveyor boasts a compact structure and minimal lateral footprint, allowing it to be placed in workshop corners or production line gaps, making it suitable for retrofitting older workshops. Its fully enclosed casing prevents dust spillage during transport, avoiding seed moisture and contamination, maintaining material cleanliness, and offering convenient and low-cost maintenance. The speed can be adjusted according to production capacity, and the inlet and outlet ports support 360° arrangement, flexibly connecting to different equipment to meet the multi-directional conveying needs of seed processing.

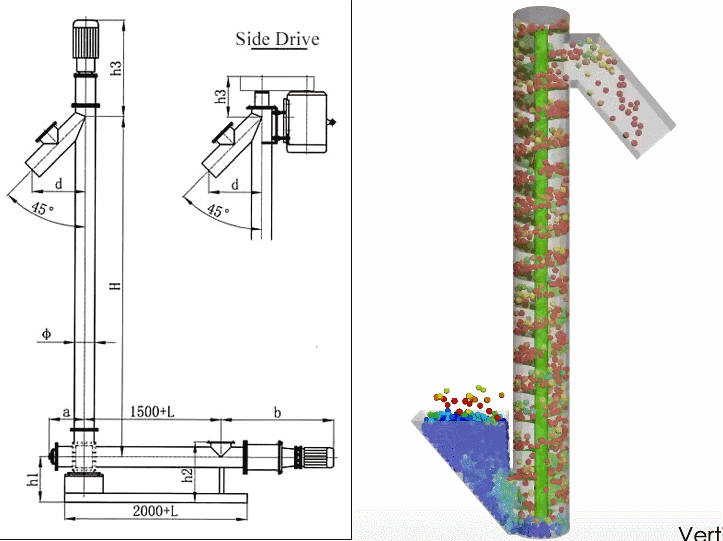

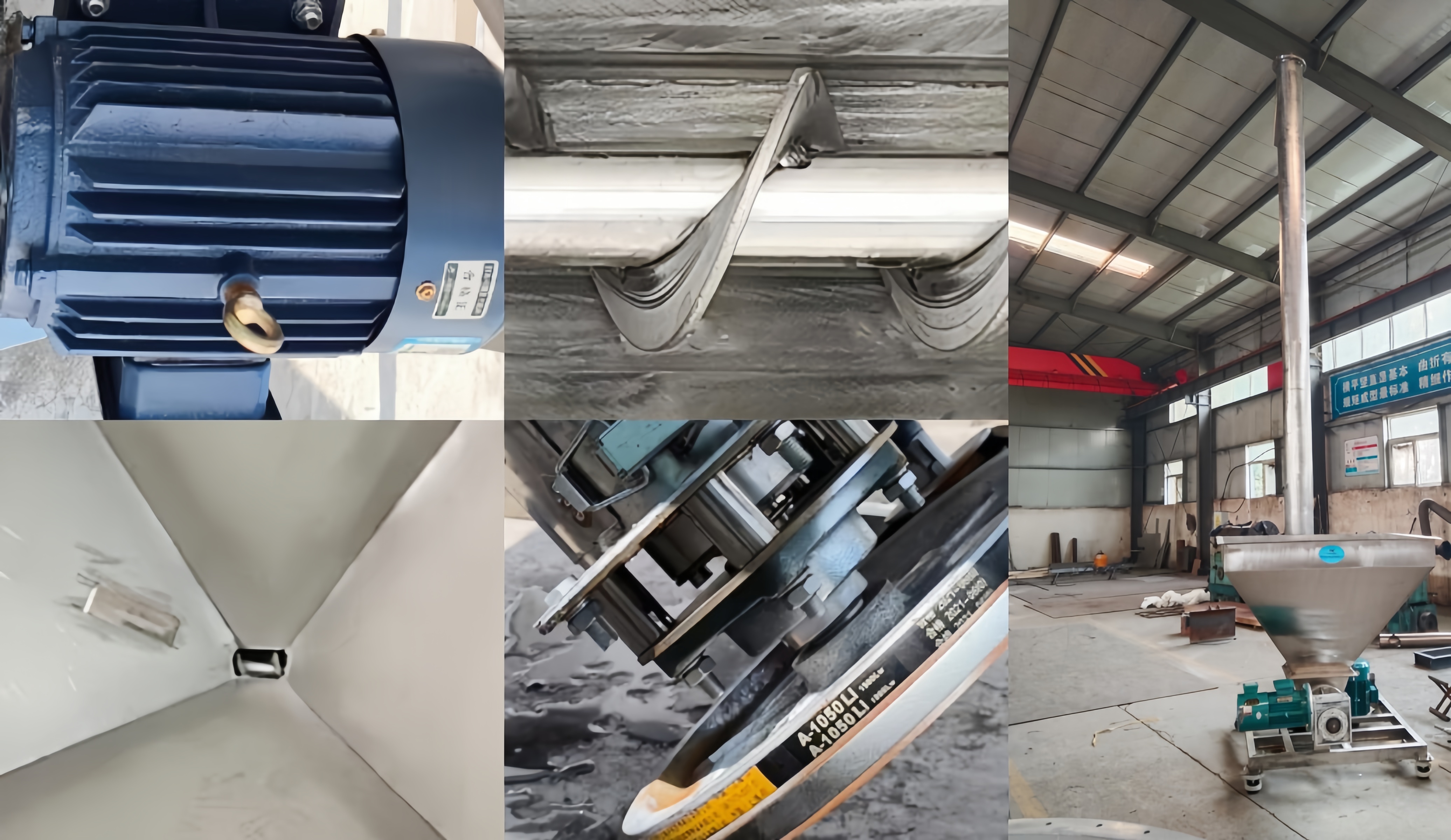

The Corn Seed Vertical Screw Conveyor features a well-organized and rational overall design. The entire machine is composed of core components such as the drive unit, screw shaft blades, enclosed casing, inlet and outlet ports, and base support. Each module has a clear function and is compactly assembled, facilitating disassembly and maintenance.
Drive Unit: Composed of a motor, reducer, and coupling, providing stable torque, including overload protection, and adaptable to vertical conveying loads.
Helical Assembly: Contains a helical shaft and solid blades, with the blades welded to the shaft. Materials can be carbon steel or stainless steel, suitable for corn seed conveying.
Casing: Cylindrical, enclosed structure, divided into upper and lower sections connected by bolts. An observation port is located at the top, and a feed hopper is located at the bottom.
Inlet/Outlet: The feed inlet is located at the bottom, suitable for chute connection; the outlet is at the top, rotatable for direction adjustment, and equipped with a flange for easy equipment connection.
The Corn Seed Vertical Screw Conveyor operates by high-speed rotation of the helical shaft. A motor drives a reducer to rotate the helical blades. The rotation speed must exceed a critical speed to achieve material upward movement. Seeds enter the tube through the bottom feed inlet. The centrifugal force generated by the rotating blades throws the material against the tube wall, forming a material flow layer. Under the combined action of tube wall friction and axial thrust of the blades, the seeds move upward along the helical trajectory and are discharged from the top outlet.
| Specification | LC160 | LC200 | LC250 | LC315 | |
| Diameter(mm) | 160 | 200 | 250 | 315 | |
| Rotating Speed(r/min) | 450 | 450 | 415 | 380 | |
| Capacity(m3/h) | 10 | 28.5 | 51 | 95 | |
| Conveying Height(m) | 2.5～15 | 2.5～15 | 2.5～15 | 2.5～15 | |
| Motor | Height(m) | 2.5～5.5 | 2.5～5.5 | 2.5～4 | 2.5～4 |
| Model | Y100L2-4 | Y100L2-4 | Y132M1-6 | Y160M-6 | |
| Power | 3KW | 3KW | 4KW | 7.5KW | |
| Height(m) | 6～7 | 6～7 | 4.5～5.6 | 4.5～6 | |
| Model | Y112M-4 | Y112M-4 | Y132M2-6 | Y160L-6 | |
| Power | 4KW | 4KW | 5.5KW | 11KW | |
| Height(m) | 7.5～10 | 7.5～10 | 6～7.5 | 6.5～8 | |
| Model | Y132S-4 | Y132S-4 | Y160L-6 | Y160L-6 | |
| Power | 5.5KW | 5.5KW | 7.5KW | 15KW | |
| Height(m) | 10.5～13.5 | 10.5～13.5 | 8～11 | 8.5～12 | |
| Model | Y132S-4 | Y132M-4 | Y160L-6 | Y180L-6 | |
| Power | 7.5KW | 7.5KW | 11KW | 11KW2台 | |
| Height(m) | 14～15 | 14～15 | 11.5～15 | 12.5～15 | |
| Model | Y160M-4 | Y160M-4 | Y180L-6 | Y180L-6 | |
| Power | 11KW | 11KW | 15KW | 15KW2台 | |

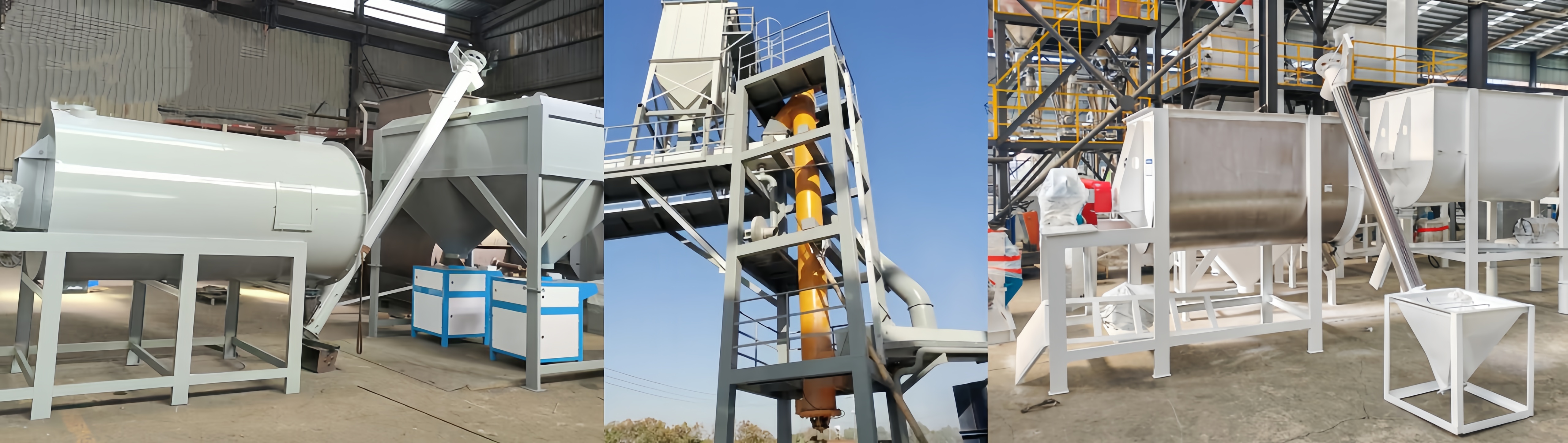

The Corn Seed Vertical Screw Conveyor is compatible with the entire seed processing workflow and can be used in conjunction with various grain and oilseed processing equipment. It can smoothly connect upstream and downstream equipment to complete the transfer and feeding of corn seeds.
Screening Machine: Receives the cleaned seeds after screening and transports them to the coating or temporary storage bin, achieving seamless process connection.
Storage Tank: Directly connects to the top feed inlet to complete seed storage, supporting multi-point unloading.
Packaging Machine: Transports seeds to the packaging machine hopper, adapting to quantitative packaging production lines and reducing manual handling.
Xinxiang Dahan Vibration Machinery Co., Ltd. offers customized carbon steel and stainless steel models of Corn Seed Vertical Screw Conveyors. We support customized production, allowing parameters to be tailored to site and capacity requirements, ensuring perfect integration with existing production lines. We support custom drawings, pre-shipment testing, and lifetime supply of vulnerable parts. We will provide suitable models and detailed quotations based on your specific needs.
What is the maximum vertical height?
Our Corn Seed Vertical Screw Conveyors can lift up to 5 meters, suitable for small to medium-scale seed processing production lines. Custom adjustments can also be made to meet site requirements.
What materials are available?
We offer carbon steel, stainless steel, and PP materials. Carbon steel is moderately priced and suitable for general conveying scenarios; stainless steel is corrosion-resistant and suitable for clean seed conveying; PP material is lightweight and wear-resistant, suitable for special scenarios where metal materials must be avoided.
Can a hopper be added to the feed inlet?
A hopper can be added to the feed inlet to accommodate different corn seed feeding needs. The hopper's size and angle can be customized according to the feeding method and installed at the bottom feed inlet to prevent material spillage and ensure even seed entry into the machine.
Is it a variable frequency motor?
Yes, the motor speed can be adjusted to control the corn seed conveying speed and flow rate, preventing material blockage and adapting to different production lines.
What is the price?
Our Corn Seed Vertical Screw Conveyor starts at $350. Prices vary depending on materials, inlet diameter, configuration, and shipping costs by region. Please contact us for a detailed quote.
