Cement Gray U-Type Screw Conveyor can transfer powdery materials such as cement ash, fly ash, and mineral powder from one location to another, meeting the continuous conveying needs of production, storage, batching, and packaging. The equipment uses a U-shaped trough with a shafted screw structure, ensuring stable operation, uniform output, and a large conveying capacity. Suitable for horizontal or slightly inclined installation, it is highly versatile.

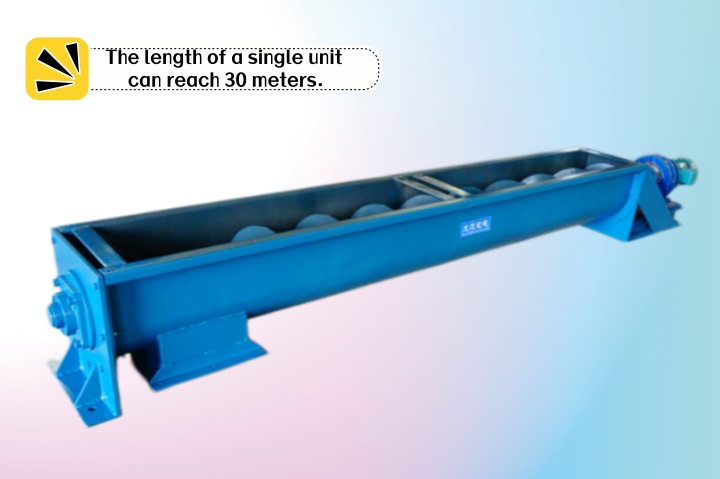

The Cement Gray U-Type Screw Conveyor can directly connect to cement mixing plants, storage bins, packaging machines, batching systems, etc., ensuring smooth connection, good sealing, and low dust, effectively improving the on-site working environment. The maximum horizontal conveying length for a single unit can reach 30 meters. Comprehensive non-standard customization is also supported. A suitable conveying solution and equipment parameters can be tailored to the customer's actual needs, including site conditions, conveying capacity, installation method, and discharge location.
The Cement Gray U-Type Screw Conveyor is designed for the characteristics of powdery materials such as cement ash, fly ash, and mineral powder. It boasts outstanding advantages such as large conveying capacity, stable operation, and excellent sealing. The U-shaped trough structure with a cover plate effectively reduces dust spillage and improves the workshop working environment. The spiral blades are made of thickened wear-resistant material, offering high strength, resistance to deformation, and a longer service life. Flexible placement allows direct connection to silos, mixing plants, packaging machines, and other equipment for continuous and stable conveying.
The Cement Gray U-Type Screw Conveyor mainly consists of a drive unit, screw shaft, U-shaped trough, sealing cover, inlet, outlet, support, and sealing components. The motor and reducer provide stable power. The screw blades are made of thickened wear-resistant steel plate, ensuring smooth conveying and preventing material jamming. The U-shaped trough features an open design, combined with the sealing cover, facilitating maintenance and cleaning while effectively suppressing dust. The inlet and outlet are suitable for both receiving and discharging materials, and their positions can be customized according to site conditions.

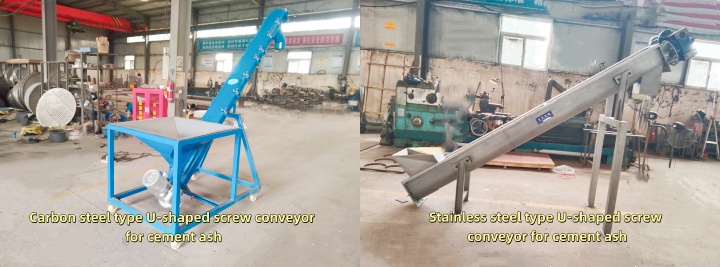

Our factory produces two main types of Cement Gray U-Type Screw Conveyors: carbon steel and stainless steel. The carbon steel model is economical and wear-resistant, suitable for conventional working conditions; the stainless steel model is corrosion-resistant and rust-proof, suitable for moisture-proof and pollution-proof environments. Both models can be customized to meet the cement ash conveying needs of different industries.
Carbon steel U-type cement ash screw conveyor: This is a mainstream and practical model in the industry. Made of high-quality carbon steel, the trough and screw blades are sufficiently thick, resulting in high strength and good wear resistance, capable of withstanding long-term erosion and wear from powdery materials such as cement ash, fly ash, and mineral powder. It is economical in overall cost and offers high performance-to-price ratio, suitable for most cement mixing plants, building material factories, mines, and other conventional operating conditions without special anti-corrosion requirements.

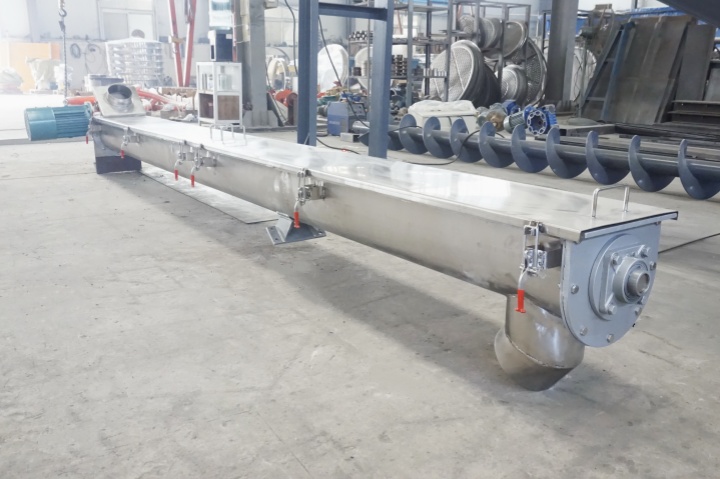

Stainless steel U-type cement ash screw conveyor: Made of 304 or 316 stainless steel, it possesses excellent anti-corrosion, rust-proof, and easy-to-clean properties, suitable for conveying environments requiring moisture-proof, corrosion-proof, and pollution-proof features. The smooth, non-stick surface effectively prevents material clumping and residue, making it suitable for scenarios with high requirements for environmental and material cleanliness.

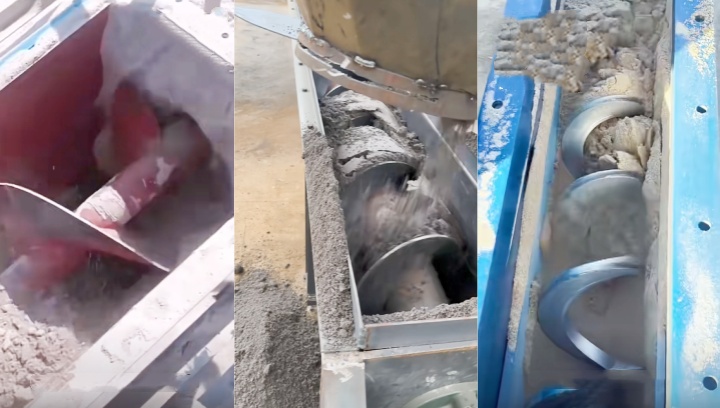

The Cement Gray U-Type Screw Conveyor works based on the rotation of the screw, which creates a continuous axial thrust on the material in the trough, thereby achieving directional conveying of the material. When the drive unit rotates the screw shaft, the screw blades fixed to the shaft rotate accordingly. Cement ash falls into the U-shaped trough from the inlet and accumulates at the bottom. The rotating blades contact the material, generating a propulsive force that propels it forward along the axial direction of the trough, eventually discharging it continuously from the outlet.
| Specification | Main technical performance | drive unit | drive unit | Weight (kg) | |||
| diameter | length (m) | Output (cement) t/h | speed(min) | reducer | electric motor | ||
| model | speed ratio | Power(kw) | |||||
| U 200 | -10 | 9 | 60 | ZQ250 | 23.34 | 1.1 | 726 |
| U 200 | -20 | 9 | 60 | ZQ250 | 23.34 | 1.5 | 1258 |
| U 250 | -10 | 15.6 | 60 | ZQ250 | 23.34 | 2.2 | 960 |
| U 250 | -20 | 15.6 | 60 | ZQ250 | 23.34 | 3 | 1750 |
| U 300 | -10 | 21.2 | 60 | ZQ350 | 23.34 | 3 | 1373 |
| U 300 | -20 | 21.2 | 60 | ZQ350 | 23.34 | 4 | 2346 |
| U 400 | -10 | 51 | 60 | ZQ400 | 23.34 | 5.5 | 1911 |
| U 400 | -20 | 51 | 60 | ZQ500 | 23.34 | 11 | 2049 |
| U 500 | -10 | 87.5 | 60 | ZQ400 | 23.34 | 7.5 | 2381 |
| U 500 | -20 | 87.5 | 60 | ZQ650 | 23.34 | 18.5 | 5389 |
| U 600 | -10 | 134.2 | 45 | ZQ750 | 23.34 | 22 | 3880 |
| U 600 | -10 | 134.2 | 45 | ZQ850 | 23.34 | 55 | 7090 |
The Cement Gray U-Type Screw Conveyor is suitable for conveying powdery materials such as cement, fly ash, and mineral powder. It is widely used in concrete mixing plants, cement plants, mortar production lines, precast concrete plants, building material processing, and powder storage.
Cement Mixing Plant Conveying: Responsible for the quantitative conveying of cement, fly ash, mineral powder, and other powdery materials from storage silos to the mixing host. The conveying is stable and accurate, and can seamlessly integrate with fully automatic batching systems.
Building materials processing plant material handling: Handles the transfer, lifting, and batching of cement ash. The fully enclosed structure effectively suppresses dust, meeting production environment requirements and suitable for long-distance, continuous, and large-volume powder conveying operations.
Construction site bulk material conveying: Suitable for temporary material handling and transfer of cement ash at construction sites, road construction sites, water conservancy projects, etc. It can be flexibly arranged, directly connecting to cement silos, storage bins, and construction equipment, reducing manual handling and dust pollution.
Mining and warehousing transfer: Used in mines, powder warehouses, and logistics warehouses for the outbound, loading, and unloading of powdery materials such as mineral powder, lime powder, and cement. The structure is stable, with a low failure rate, and can achieve 24-hour continuous operation.

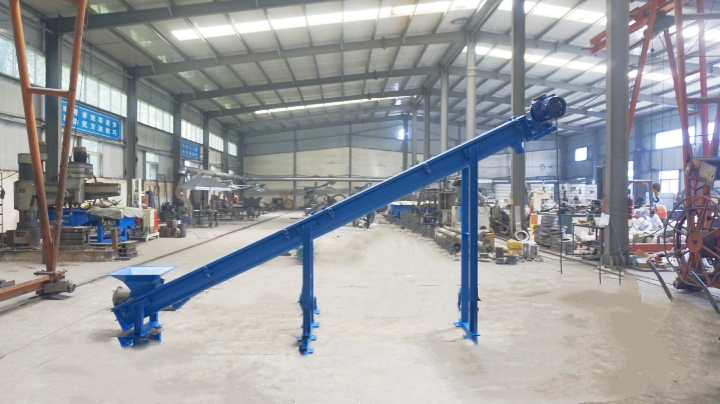

The recommended tilt angle for the Cement Gray U-Type Screw Conveyor is generally within the range of 0° to 35°, with horizontal or horizontal conveying being the most reliable. As the tilt angle increases, cement ash tends to flow back under gravity, leading to a significant decrease in conveying efficiency and a sharp increase in the requirements for equipment power and structural strength. Therefore, 35° is generally considered the economically practical upper limit. If the process requires a greater lifting height, a smaller tilt angle but increased conveying length is usually recommended. We will also recommend suitable conveying equipment based on your conveying needs.
Dahan Machinery is committed to providing robust and durable bulk material conveying solutions for the building materials, metallurgy, and chemical industries. We not only offer standard models but also excel at in-depth non-standard customization based on your specific conveying volume, distance, layout, and material characteristics, ensuring a perfect fit between the equipment and the production line. From heavy-duty wear-resistant design to seal optimization, we insist on using high-quality materials and precision manufacturing processes to ensure long-term stable operation and low maintenance costs for every piece of equipment. We provide a full-process service from solution design and manufacturing to commissioning and maintenance, becoming your solid partner for efficient production with professional and reliable equipment.
The Cement Gray U-Type Screw Conveyor is a model used for conveying bulk powdery materials such as cement, fly ash, and mineral powder. With its robust structure, large load capacity, and reliable sealing, it is a core piece of equipment for horizontal or slightly inclined conveying in concrete mixing plants, cement plants, and dry mortar production lines.
