As an innovative conveying equipment, Adjustable Inclined Belt Conveyor has shown significant advantages in many industries with its unique adjustable inclination design, and has become a key equipment for solving complex material conveying problems.
Belt width: 500-1800mm
Rim height: 80-500mm
Belt speed: 0.8-4.0m/s
Inclination: 30-60°
Conveying capacity: 84-5036m³/h
Application: It can efficiently convey products from low to high positions and is widely used in the food packaging industry, as well as food, warehousing logistics, packaging, express delivery, electronics and electrical, and pharmaceutical industries.
Adjustable Inclined Belt Conveyor is a multifunctional conveying equipment, whose conveying angle can be adjusted steplessly from 0° to 60°, realizing fast switching between horizontal conveying and inclined loading. The equipment adopts high-strength steel structure, equipped with intelligent hydraulic/electric adjustment system, supports customization of 500-1800mm bandwidth, and has a maximum conveying capacity of 200 tons/hour, which is an ideal solution for improving material conveying efficiency.
The movable type can be flexibly moved to adapt to changing sites, the skirt type can achieve large inclination angle protection with its unique structure, and the basic type can meet general needs with high compatibility, accurately matching multiple conveying scenarios such as bulk materials and powder materials.

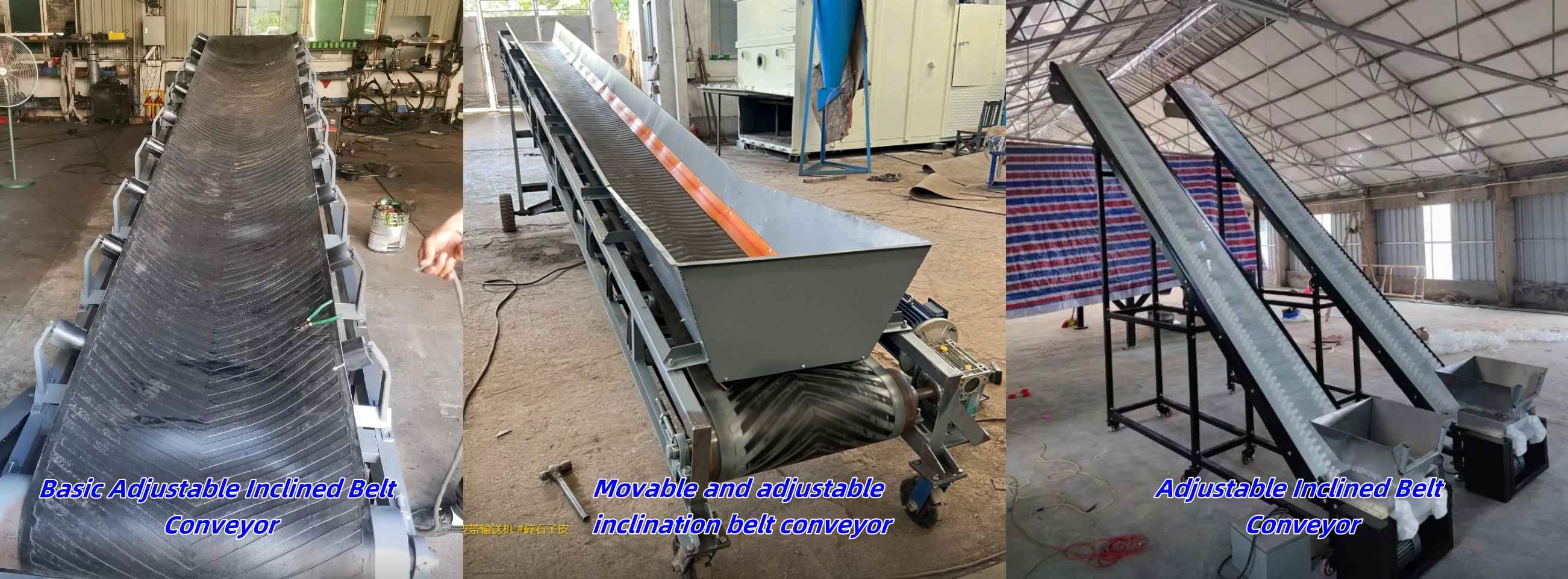

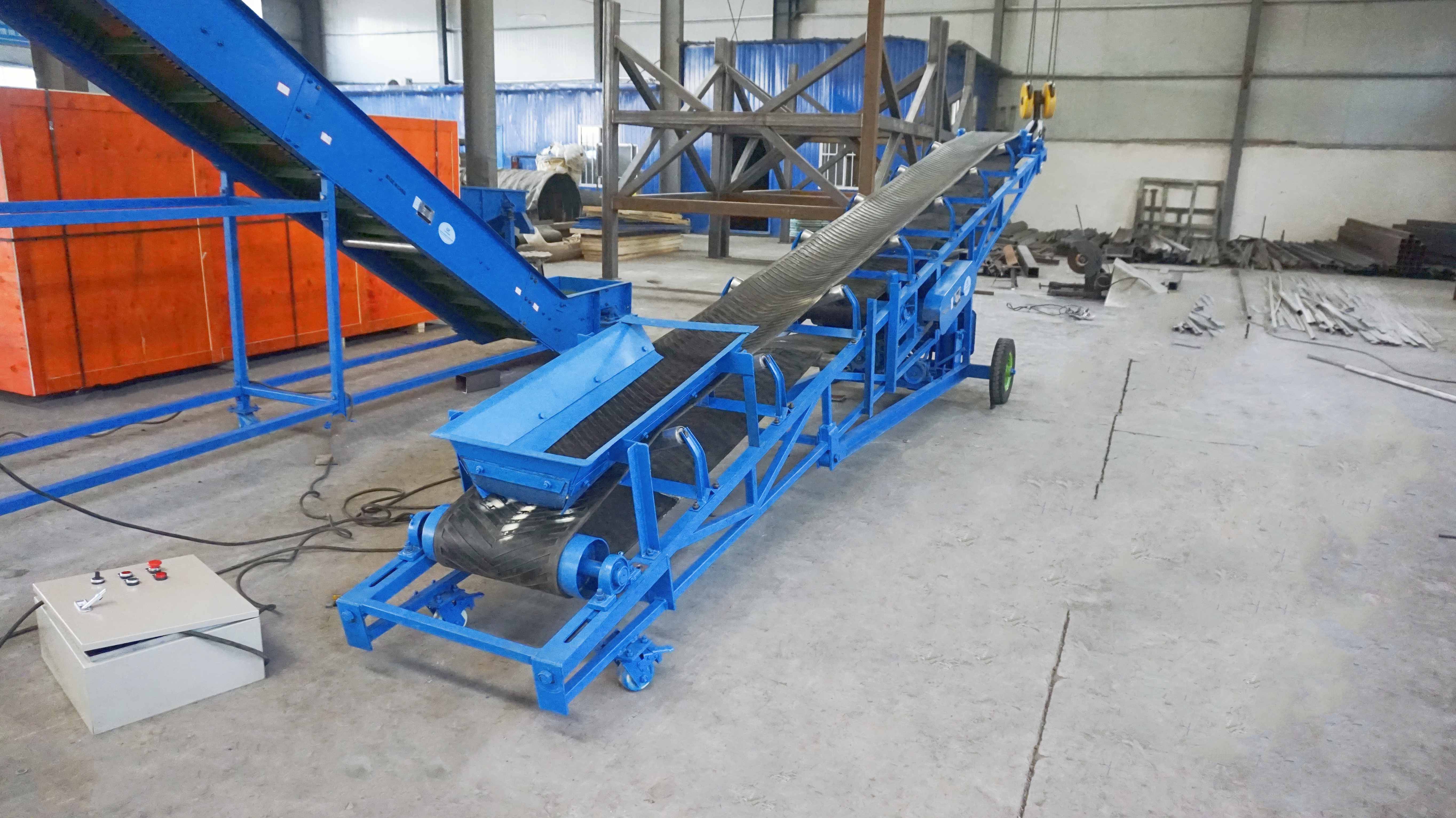

Movable and adjustable inclination belt conveyor: With "flexible movement" as the core, it is equipped with polyurethane universal wheels or crawler chassis to meet the movement needs of different terrains; it adopts electric push rods and hydraulic dual drives to achieve stepless adjustment of 5°-90° inclination.

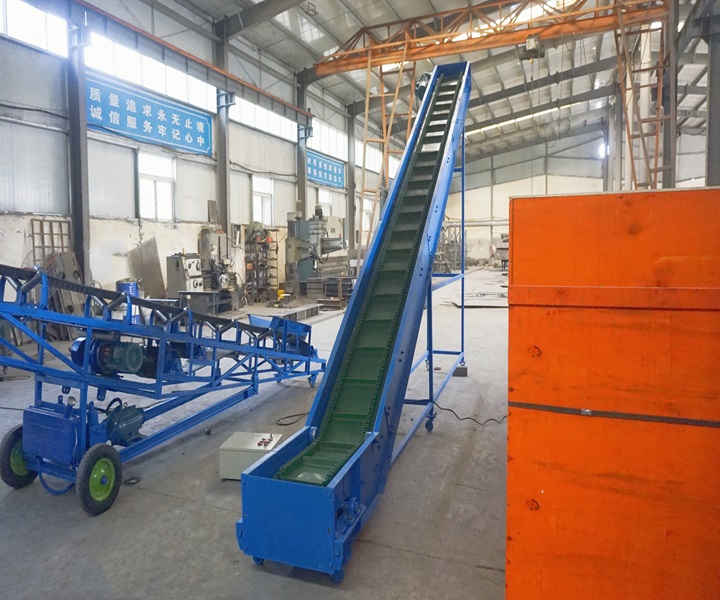

Adjustable Inclined Belt Conveyor: Focusing on large-angle anti-spill conveying, the combination of polymer skirt and T-type partition effectively prevents material scattering, with a maximum inclination of 45°. Excellent performance in the fields of sand and gravel aggregate, sewage treatment, food processing, etc.

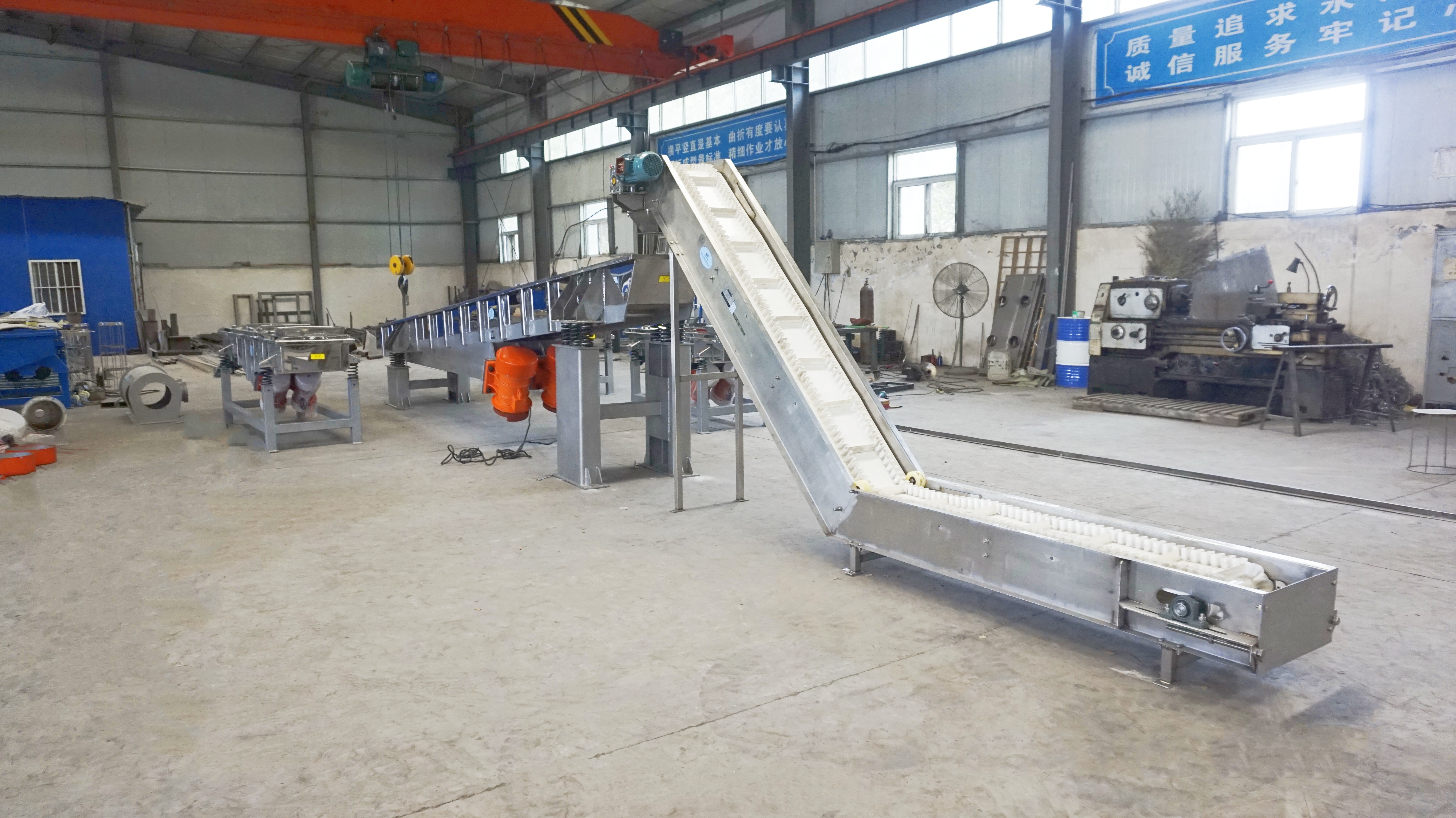

Basic Adjustable Inclined Belt Conveyor: As a general-purpose equipment, it has a 0°-60° continuously adjustable inclination and modular design, supports patterned/smooth belt switching, and can be connected to the MES system through the PLC interface.
Breaking through the limitations of traditional conveying, 0°-60° free adjustment to adapt to multiple scenarios! Anti-spill design, flexible movement, and intelligent linkage, whether it is bulk materials, powder materials or packaged items, can achieve fast, stable and accurate conveying.
One machine replaces multiple devices: There is no need to purchase horizontal and inclined conveyors separately. One machine can simultaneously meet the needs of horizontal, inclined and other material conveying at different angles.
Inclined belt conveyor adopts the innovative design of "modular frame + dynamic adjustment system", and its key components include.

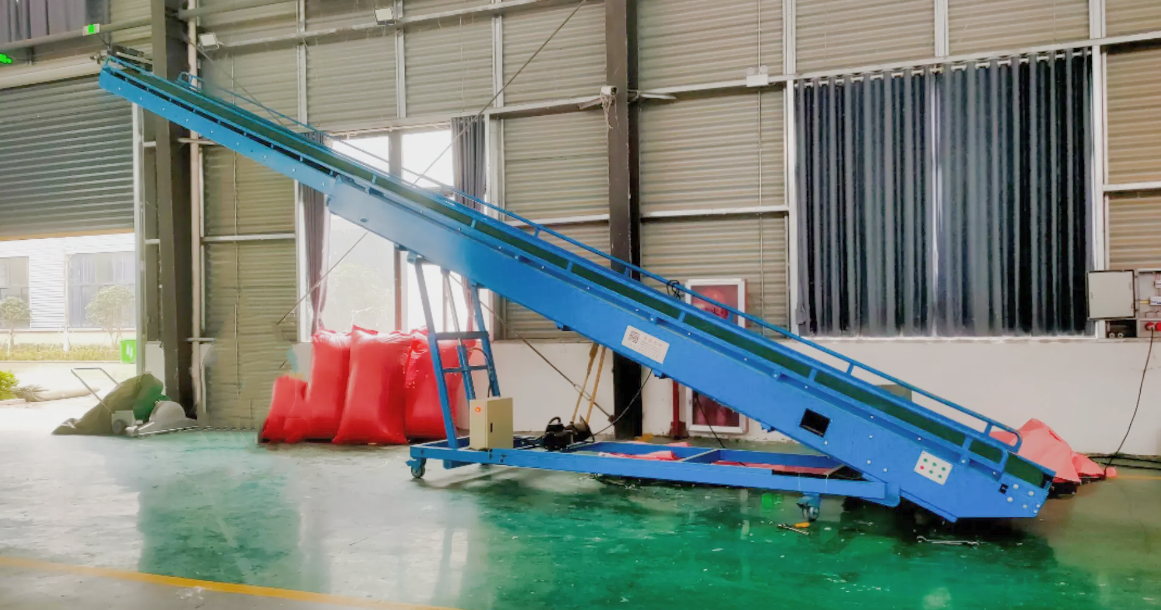

Foldable frame: It is composed of fixed section and movable section, and the angle change is realized through hinge connection. The frame is mostly made of high-strength steel or aluminum alloy.
Hydraulic system: The movable section is lifted and lowered by the oil cylinder, and the adjustment accuracy is ±0.5°, which is suitable for heavy-duty work. Electric push rod: servo motor drives the screw nut mechanism, with fast response speed (adjustment time ≤ 15 seconds), suitable for high-frequency adjustment scenarios;
Intelligent tensioning system: When the inclination angle changes, the belt tension is automatically adjusted (error ≤ ± 3%) to avoid slipping or tearing. Common configurations include weight-type tensioning, spiral tensioning and hydraulic automatic tensioning;
Anti-slip conveying components: According to the size of the inclination angle, you can choose a combination of patterned belts, sidewall belts or skirt partitions. When the inclination angle is greater than 20°, the standard anti-reversal device prevents material backflow.
The adjustable incline belt conveyor works based on the friction transmission principle. Its core is a conveyor belt with a special structure, with corrugated sidewalls and transverse partitions, which can carry materials. The drive device drives the transmission roller to rotate, and the friction between the roller and the conveyor belt makes the conveyor belt run. When in horizontal mode, the belt runs horizontally to convey materials; in tilt mode, the belt continuously conveys materials by adjusting the frame to the required angle. With the help of hydraulic system or manual rocker, the angle can be adjusted within 10 seconds to realize the transportation of materials in different scenarios.
|
Belt width (mm) |
Conveying length(m) Power(kw) |
Conveying speed (m/s) |
Conveying amount (t/h) |
||
| B400 | ≤10 | 12-15 | 15-30 | 1.25-2.0 | 30-60 |
| 3 | 3-4 | 4-7.5 | |||
| B500 | ≤10 | 12-15 | 15-30 | 1.25-2.0 | 40-80 |
| 3 | 4-5.5 | 5.5-7.5 | |||
| B650 | ≤10 | 12-15 | 15-30 | 1.25-2.0 | 80-120 |
| 4 | 7.5 | 7.5-11 | |||
| B800 | ≤10 | 12-15 | 15-30 | 1.25-2.0 | 120-200 |
| 4 | 7.5 | 7.5-15 | |||
| B1000 | ≤10 | 10-20 | 20-40 | 1.25-2.0 | 200-320 |
| 5.5 | 7.5-11 | 11-22 | |||
| B1200 | ≤10 | 10-20 | 20-40 | 1.25-2.0 | 290-480 |
| 7.5 | 7.5-15 | 15-30 | |||
| B1400 | ≤10 | 10-20 | ＜20-40 | 1.25-2.0 | 400-680 |
| 11 | 15-22 | 22-45 | |||
| B1600 | ≤10 | 10-20 | ＜20-50 | 1.25-2.0 | 600-1080 |
| 15 | 22-30 | 30-75 | |||
| B1800 | ≤10 | 10-20 | ＜20-50 | 1.0-2.0 | 200-1500 |
| 18.5 | 30-45 | 45-110 | |||
| B2000 | ≤10 | 10-20 | ＜20-40 | 1.0-2.0 | 1000-2000 |
| 22 | 45-55 | 55-132 | |||
| B2400 | ≤10 | 10-20 | ＜20-40 | 1.0-2.0 | 1500-3000 |
| 30 | 55-75 | 75-185 | |||
The adjustable incline belt conveyor can adapt to a variety of material characteristics with its flexible incline adjustment function and diversified structural design.

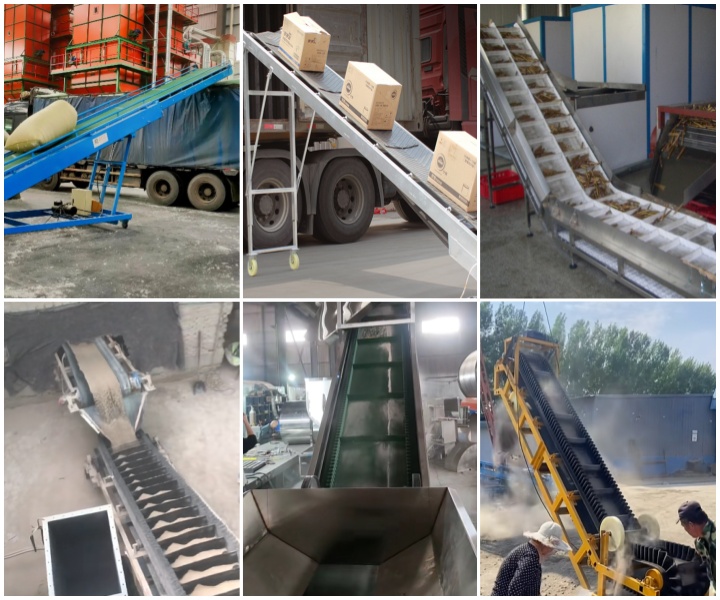

Bulk granular materials: As the core adaptable object for large-angle transportation, it covers sand and gravel aggregates, grains, feed particles, etc. With the help of the skirt + partition structure of the adjustable incline skirt belt conveyor, the material is lifted at an inclination of 40°-45° to prevent slipping.
Powdered / dusty materials: For materials such as cement and flour, it is necessary to match a closed cover or dust-proof skirt to reduce dust.

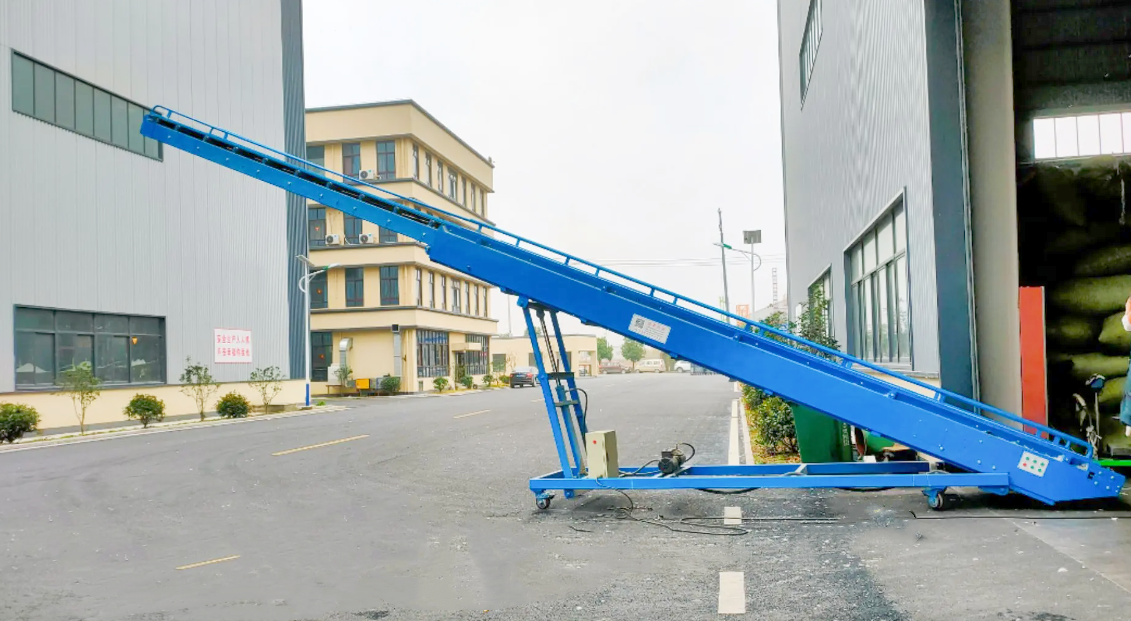

Packaged items / regular items: Suitable for express parcels, boxed goods, etc., the basic adjustable incline belt conveyor connects the sorting rack and the truck at an inclination of 20°-25°, replacing multiple sets of fixed equipment.
High viscosity/oil-containing materials: For sludge, asphalt, etc., some models use anti-stick coating belts and 30°-35° large inclination design to reduce adhesion. In addition, self-cleaning scrapers are required to prevent the belt from running off.
The angle adjustment range of adjustable inclination belt conveyors is usually 0° to 45°, and some heavy-duty models can reach 90° (need to be matched with sidewall belts). Standard models achieve stepless adjustment through hydraulic systems or manual mechanisms, including.
0°-25°: Suitable for most bulk materials and packages (such as grain, boxed goods);
25°-45°: Need to be matched with patterned or sidewall belts to prevent materials from slipping (such as sand, gravel, ore);
Special needs: Food-grade conveying can be customized with 0°-30° stainless steel models, and the chemical industry can choose explosion-proof adjustment systems.
Angle adjustment needs to be combined with material characteristics. Materials with poor fluidity are recommended to be ≤30° to avoid backflow or blockage.
We specialize in the production of adjustable inclination belt conveyors, providing 0°-60° stepless adjustable conveying solutions. The product adopts high-strength steel structure, equipped with hydraulic/electric intelligent adjustment system, supports 500-1800mm bandwidth customization, optional sidewall/patterned belt and explosion-proof configuration, and the maximum conveying capacity is up to 200 tons/hour. With the advantages of wear resistance, durability and intelligent control, it has served many customers, and its products are exported to more than 30 countries. It also provides one-stop design and after-sales services, which is an ideal choice for material transportation in various industries.
The adjustable inclination belt conveyor solves the problem of poor adaptability of fixed conveyors through flexible angle switching and efficient continuous conveying. Whether it is loading sand and gravel at a construction site or stacking grain in a granary, only one device is needed to meet the needs of multiple working conditions, significantly reducing equipment investment and labor costs.
